LinAn DongSheng Cable Supply for 4 Pairs Lan Cable UTP Cat5e
- 40000 Carton / Cartons per Month
- Shanghai or Ningbo
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | dongsheng | |
| Model Number | LinAn DongSheng Cable Supply for 4 Pairs Lan Cable UTP Cat5e | Type | Cat 5e | |
| Number of Conductors | 8 |
Product Description
LinAn DongSheng Cable Supply for 4 Pairs Lan Cable UTP Cat5e

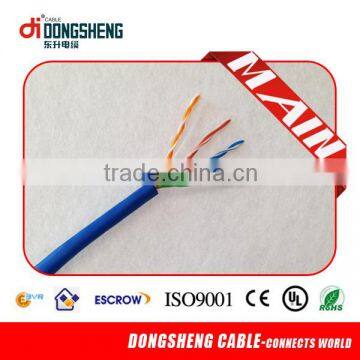

Lan Cable UTP Cat5e
Tips: We can ensure the cable pass FLUKE TEST 100% for CU conductor, with a high
performance in your Cabling solution, or projec.
1. Certification: CE. ROHS,REACH,ISO Listed
2. Compliance: ETL verified ANSI TIA/EIA568-2, ISO/IEC 11801. RoHS Compliant.
3.Application: 100Base-TX, 100VG-AnyLan, 1000Base-T, ATM, Noisy Environment
4. Remark: 250HMZ 550MHz ATM 155MBPS, 100mbps TPDDI, Fast Ethernet etc
UTP Cat5e Cable,Lan Cable Cat5e,Network Cable Construction
Item | Conductor | Number Of Pairs | Shielding | Drain Wire | O.D. |
Cat5e UTP Cable | 0.51mm BC/CCA | 4 | Non | Non | 5.1mm Jacket ROHS,UV,LSZH,UL,Reach |
Cat5e FTP Cable | 0.51mm BC/CCA | 4 | Aluminum Foil | Yes | 5.8mm ROHS,UV,LSZH,UL,Reach |
Cat5e SFTP Cable | 0.51mm BC/CCA | 4 | Aluminum Foil + Alloy Braiding | Yes | 6.2mmJacket ROHS,UV,LSZH,UL,Reach |
Cat5e UTP Outdoor Cable |
0.51mm
BC/CCA
| 4 | Non | Non | 6.2mm Jacket ROHS,UV,LSZH,UL,Reach |
Cat5e FTP Messenger Cable |
0.51mm
BC/CCA
| 4 | Aluminum Foil | Yes | 6.0mm Jacket ROHS,UV,LSZH,UL,Reach |
UTP Cat5e Cable Technical Performance(100m), UTP Cat5e Cable
| Frequency MHz | RL ≥dB | Attenuation ≤dB/100m | NEXT ≥dB/100m | PHASE DELAY≤ ns | ELFEXT ≥dB/100m | PS NEXT ≥dB/100m | PS ELFEXT ≥dB/100m |
| 1 | 20.0 | 2.0 | 65.3 | 570 | 63.8 | 62.3 | 60.8 |
| 4 | 23.0 | 4.1 | 56.3 | 552 | 51.7 | 53.3 | 48.8 |
| 8 | 24.5 | 5.8 | 51.8 | 546.73 | 45.7 | 48.8 | 42.7 |
| 10 | 25.0 | 6.5 | 50.3 | 545.38 | 43.8 | 47.3 | 40.8 |
| 16 | 25.0 | 8.2 | 47.3 | 543 | 39.7 | 44.2 | 36.7 |
| 20 | 25.0 | 9.3 | 48.5 | 542.05 | 37.7 | 42.8 | 34.7 |
| 25 | 24.3 | 10.4 | 44.3 | 541.2 | 35.8 | 41.3 | 32.8 |
| 31.25 | 23.6 | 11.6 | 42.9 | 540.44 | 33.9 | 39.9 | 30.9 |
| 62.5 | 21.5 | 17.0 | 38.4 | 538.55 | 27.8 | 35.4 | 24.8 |
| 100 | 20.1 | 22.0 | 35.3 | 537.6 | 23.8 | 32.3 | 20.8 |
Applications: Cat5e UTP Cable, UTP Cat5e Cable
1.Computer Network Cabling Project.
2.Broadband Network Communication.
3.Digital ISDN Network and ATM 155Mbps Network
4.Ethernet Network
5.Audio and Data Transmission
Cat5e Lan Cable Package Method
Cat5e UTP Cable kinds of Picture
UTP Cat5e Lan Cable,Cat5e UTP Network Cable Test Report
Factory Show
Products Certifications
Exhibition Trade Show
We attend to 3-5 Fairs in Beijing CCBN,Hongkong, Guangzhou, and aboard, to meet with the old customer, also show our company to the future new customers
SUPPLY KINDS OF CABLES:
1) Lan Cable / Network Cable UTP/ FTP /SFTP Cable Cat5e Cat6 Cat3
2) 75 ohm Coaxial Cable RG6 RG59 RG7 RG11
3) Telephone Cable,Telephone Drop Cable, PTT298 Cable , PTT299 Cable
4) Security Alarm Cable / Fire Alarm Cable
5) Optical Fiber Cable
6) Speaker Cable / Power Cable / Electrical Cable / Multi-Core Cable
7) Siamese CCTV Cable RG59+2C , KX6+2C , RG6+2C
8) Trunk Cable QR750 QR540 QR500 QR412
9) KoaxialKable CT100,CT165, KX6, KX8,17VATC,19VATC,SAT703,SAT602
10) 50 ohm Coaxial Cable RG174 RG58 RG8 RG213 RG214 RG223
11) 50ohm Cable LMR195 LMR200 LMR240 LMR300 LMR400 LMR500 LMR600
12) 75 ohm Coaxial Cable 3C-2V, 5C-2V, 4C-FB, 5C-FB
13) 50 ohm Coax Cable 3D-FB,4D-FB,5D-FB,7D-FB,8D-FB,10D-FB,Feeder Cable 1/2, 3/8,5/87/8
14) Mini Coax Cable: RG591885A,8218 Cable,1.37mm,0.81mm ect
15) Cabo Coaxial RG6 RG59 RG11 QR500 RF4mm
16) Telecom Cable BT3002, PCM Cable, Multi-Core Coax Cable
17) Coaxial Cable Connector(BNC,RCA,Female, Male)
18) Indoor TV Antenna, Outdoor TV Antenna,Satellite Antenna
19) CATV Transimitter, CATV Amplifier,CATV Receiver
20) Optical Fiber Cable (GYXTY, GYXTW, ADSS, FTTH ,GYXTC8S,GYXTC8Y etc.)
