LinAn DongSheng Cable Supply for 4 Pairs utp cable cat5e
- Shanghai or Ningbo
- T/T
You May Like
-
LinAn DongSheng Cable Supply for 4 Pairs Cat5e Cable
-
LinAn DongSheng Cable Supply for 4 Pairs Lan Cable UTP Cat5e
-
LinAn DongSheng Cable Supply for 4 Pairs Lan Cable UTP Cat6
-
24 Year-experienced Manufacturer UTP Cat6
-
24 Year-experienced Manufacturer UTP Cat5e
-
305M/Box 24AWG CU/CCA 1000m utp cat5e lan cable
Product Details
| Place of Origin | Zhejiang, China | Brand Name | dongsheng | |
| Model Number | LinAn DongSheng Cable Supply for 4 Pairs utp cable cat5e | Type | Cat 5e | |
| Number of Conductors | 8 |
Product Description
LinAn DongSheng Cable Supply for 4 Pairs utp cable cat5e
utp cable cat5e
Tips: We can ensure the cable pass FLUKE TEST 100% for CU conductor, with a high
performance in your Cabling solution, or projec.
1. Certification: CE. ROHS,REACH,ISO Listed
2. Compliance: ETL verified ANSI TIA/EIA568-2, ISO/IEC 11801. RoHS Compliant.
3.Application: 100Base-TX, 100VG-AnyLan, 1000Base-T, ATM, Noisy Environment
4. Remark: 250HMZ 550MHz ATM 155MBPS, 100mbps TPDDI, Fast Ethernet etc
UTP Cat5e Cable,Lan Cable Cat5e,Network Cable Construction
Item | Conductor | Number Of Pairs | Shielding | Drain Wire | O.D. |
Cat5e UTP Cable | 0.51mm BC/CCA | 4 | Non | Non | 5.1mm Jacket ROHS,UV,LSZH,UL,Reach |
Cat5e FTP Cable | 0.51mm BC/CCA | 4 | Aluminum Foil | Yes | 5.8mm ROHS,UV,LSZH,UL,Reach |
Cat5e SFTP Cable | 0.51mm BC/CCA | 4 | Aluminum Foil + Alloy Braiding | Yes | 6.2mmJacket ROHS,UV,LSZH,UL,Reach |
Cat5e UTP Outdoor Cable |
0.51mm
BC/CCA
| 4 | Non | Non | 6.2mm Jacket ROHS,UV,LSZH,UL,Reach |
Cat5e FTP Messenger Cable |
0.51mm
BC/CCA
| 4 | Aluminum Foil | Yes | 6.0mm Jacket ROHS,UV,LSZH,UL,Reach |
UTP Cat5e Cable Technical Performance(100m), UTP Cat5e Cable
| Frequency MHz | RL ≥dB | Attenuation ≤dB/100m | NEXT ≥dB/100m | PHASE DELAY≤ ns | ELFEXT ≥dB/100m | PS NEXT ≥dB/100m | PS ELFEXT ≥dB/100m |
| 1 | 20.0 | 2.0 | 65.3 | 570 | 63.8 | 62.3 | 60.8 |
| 4 | 23.0 | 4.1 | 56.3 | 552 | 51.7 | 53.3 | 48.8 |
| 8 | 24.5 | 5.8 | 51.8 | 546.73 | 45.7 | 48.8 | 42.7 |
| 10 | 25.0 | 6.5 | 50.3 | 545.38 | 43.8 | 47.3 | 40.8 |
| 16 | 25.0 | 8.2 | 47.3 | 543 | 39.7 | 44.2 | 36.7 |
| 20 | 25.0 | 9.3 | 48.5 | 542.05 | 37.7 | 42.8 | 34.7 |
| 25 | 24.3 | 10.4 | 44.3 | 541.2 | 35.8 | 41.3 | 32.8 |
| 31.25 | 23.6 | 11.6 | 42.9 | 540.44 | 33.9 | 39.9 | 30.9 |
| 62.5 | 21.5 | 17.0 | 38.4 | 538.55 | 27.8 | 35.4 | 24.8 |
| 100 | 20.1 | 22.0 | 35.3 | 537.6 | 23.8 | 32.3 | 20.8 |
Applications: Cat5e UTP Cable, UTP Cat5e Cable
1.Computer Network Cabling Project.
2.Broadband Network Communication.
3.Digital ISDN Network and ATM 155Mbps Network
4.Ethernet Network
5.Audio and Data Transmission
Cat5e Lan Cable Package Method

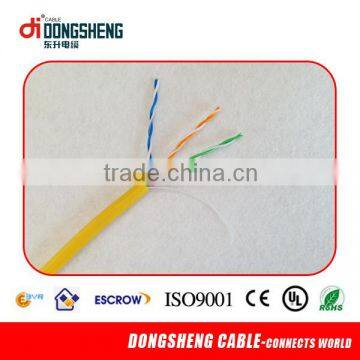

Cat5e UTP Cable kinds of Picture
UTP Cat5e Lan Cable,Cat5e UTP Network Cable Test Report
Factory Show
Products Certifications
Exhibition Trade Show
We attend to 3-5 Fairs in Beijing CCBN,Hongkong, Guangzhou, and aboard, to meet with the old customer, also show our company to the future new customers
