cat3 black color 5 pair telephone cable
- ningbo or shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Dongsheng | |
| Model Number | Telephone cable | Type | Cat 3 | |
Product Description
cat3 black color 5 pair telephone cable
1) Conductor: BC, TC, solid or standed copper conductor
2) From 1 pair to 100 Pairs, shield or non-shield
Specifications:
BC: Bare Copper CCS: Copper Clad Steel
1) 1P*0.4/0.6/0.63mm CCS/BC/CCA conductor+0.95mmPE insulation+3.8mmPVC jacket
2) 2PAWG/20AWG CCS/BC/CCA Conductor +PVC/PE Insulation
3) 6P*0.4/0.6/0.63mm CCS/BC/CCA conductor+0.95mmPE insulation+ PVC jacket
4) 12P*0.4/0.6/0.63mm CCS/BC/CCA conductor+0.95mmPE insulation+PVC jacket
3) Customers' specifications are wellcomed.
Model | specification | insulation outer(mm) | Overall outer(mm) |
DSC-Tel-01 | 1x2x1/0.40 | 0.9 | 2.7 |
DSC-Tel-02 | 2x2x1/0.40 | 0.9 | 4.0 |
DSC-Tel-03 | 3x2x1/0.40 | 0.9 | 4.3 |
DSC-Tel-04 | 4x2x1/0.40 | 0.9 | 4.8 |
DSC-Tel-05 | 6x2x1/0.40 | 0.9 | 5.7 |
DSC-Tel-06 | 8x2x1/0.40 | 0.9 | 6.3 |
DSC-Tel-07 | 10x2x1/0.40 | 0.9 | 8.0 |
DSC-Tel-08 | 20x2x1/0.40 | 0.9 | 10.0 |
DSC-Tel-09 | 25x2x1/0.40 | 0.9 | 11.5 |
DSC-Tel-10 | 30x2x1/0.40 | 0.9 | 12.6 |
DSC-Tel-11 | 50x2x1/0.40 | 0.9 | 16.0 |
Product Structure
| aerial multi pair telephone cable |
Conductor Dimension | 0.37mm/0.40mm/0.50mm, 24AWG |
Conductor Material | OFC/CCC/CCA/CCS |
Insulation | 1. Water blocking swellable tape (optional) |
2. HD-PE (High density polyethylene) | |
3. 1.0mmHD-PE(Highdensity polyethylene) | |
Number Of Cores | 2core/4core/6core/8core/10core |
Shielding | UTP/Polyester Tape/Al Foil |
Ripcord yes/no | Yes with Nylon |
Jacket | PVC (Polyvinyl-Chloride)/ LSZH (Low Smoke Zero Halogen)/PE |
Separator | Mylar Spirally Wrapped |
Color | Different color is available |
Operating temperature | -20 ° C - +75 ° C |
Service Life | 20~25 years |
Characteristic:
Rated temperature: 60 degree
Rated voltage: 150V
Application:
Telephone handset cord or line cord

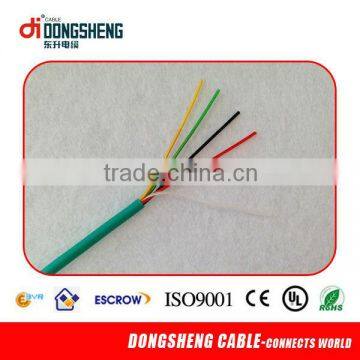

Products Photos:
Packing:
100M/ROLL. 200M/ROLL, 500M/Wooden reel,or 300m/Plastic Reel
Certificate:
We have pass the IS09001, CCC, Rohs, CE, and UL, in order to meet your market requirement.
Factory and Production line
We use the bue advance production equipment for LAN CABLE,TELEPHONE CABLE, and COAXIAL CABLE, ensure the high performance in your project and system.
Exhibition Trade Show
We attend to 3-5 Fairs in Hongkong, Guangzhou, and aboard, to meet with the old customer, also show our company to the future new customers.
1. Q: What kind of cable do you produce? We specialize in producing lan cable,coaxial cable,alarm cable,telephone cable speaker cable etc.
2. Q: What's your MOQ? A: Our MOQ is 30km per item. Free samples can be sent for your quality evaluation.
3. Q: What’s your delivery time? Normally, our delivery time is 20 days after receiving deposit. Base on the quantity of the order.
4. Q: What are your payment terms? We accept T/T, L/C, DP at sight,Other payments accept through negotiation.
5. Q: What is your manner of packing?
the color box and cartons,or wooden plates,wooden splints It can as the customers'requests
6. Q: Can your factory customize cables based on customer’s samples? Yes, we can. OEM and ODM are both welcome.
