Home > Products > Impact Mill > Super Micro Mill
Super Micro Mill
- Qingdao port
- T/T
You May Like
Product Details
| Condition | New | Type | Impact Crusher | |
| Application | widely, widely | Power(W) | 10~250kw | |
| Capacity(t/h) | 0.25-4 | Place of Origin | Shandong, China | |
| Brand Name | SHINA | Model Number | ACM | |
| Dimension(L*W*H) | different | Weight | 1-3T | |
| Certification | CE,ISO9001:2008 | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
PROCESS
ACM series air classifying mill compared to current comminution mills, has superior performances and is applied for varies of material processing, especially for thermal-sensitive and fibrous materials. Final product particle size is well distributed to micron stage and sub-micron stage. It is currently ideal energy-saving micro powder producing equipment with good performance and high efficiency.
FEATURES
- This machine is a reflective-type vertical mill. Classifying equipment is set in comminution chamber.
Airflow transfers comminuted material to classifier for collection. Classifying equipment replacing
traditional screen, functions both comminution and classification process, resulting high efficiency.
- Airflow control valve and classifying wheel stepless speed governor ensures particle size adjustable
without stopping the machine. Furthermore, fines can be recovered, no environment pollution.
- Cooling function of this machine keep the temperature-rise low during comminution, which is specially
applied for thermal-sensitive and fibrous materials. Product fineness is well-distributed.
- Convenient for maintenance, operation and cleaning; big capacity
- New type V-belt as transmission is specialized by great transmission power, stable running and high
efficiency.

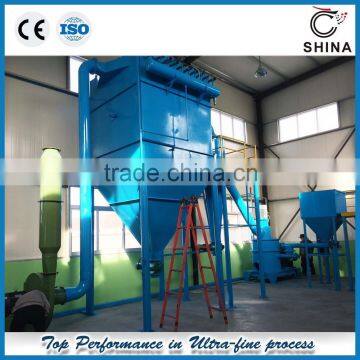

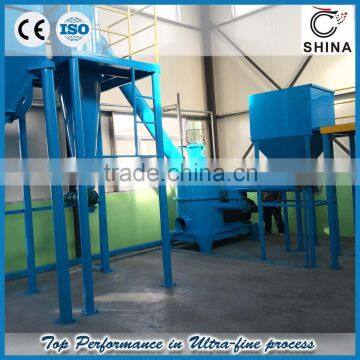

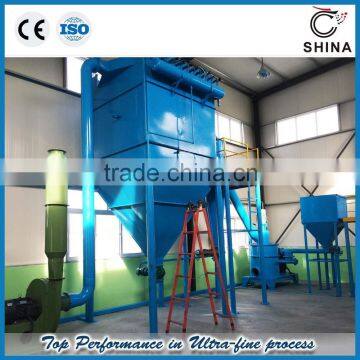

Super Micro Mill
INSIDE
The machine is applicated for comminution low to medium-hard materials in industries of chemical industry, medicine, dye, pesticide, metallurgy, foodstuff, tobacco, feedstuff, plastics, plant fiber and reclaimed rubber and so on.
Model | Rotor diameter (mm) | Grinding motor (KW) | Classifier motor (KW) | Air volume (m3/hr) | Capacity factor |
ACM300 | 300 | 11 | 2.2 | 500 | 0.25 |
ACM400 | 400 | 22 | 4 | 1200 | 0.5 |
ACM700 | 700 | 45 | 7.5 | 2800 | 1 |
ACM850 | 850 | 55~75 | 11 | 4000 | 1.5 |
ACM1000 | 1000 | 90 | 15 | 5500 | 2 |
ACM1100 | 1100 | 110 | 18.5 | 6800 | 2.5 |
ACM1200 | 1200 | 132 | 22 | 8000 | 3 |
ACM1400 | 1400 | 160~200 | 30~37 | 11000 | 4 |
Quality guarantee is for one year. During one year, if there is any problem or destroy (non-artificial damage), we will repair or change for free. After one year, if there is any problem, we will still supply good service, and we will charge cost if parts needed to be changed.
- Flow sheet of the process
- Electrical interlocking sequence
- Dimension drawings for supplied equipment
- Operation manuals
- Technical information and specification for local supply
- Engineering drawings for local supplies
- Technology data and drawings for installation and commissioning
- Spare parts list
Other Main Products
Q &A:
1. Why choose QINGDAO SHINA as supplier?
A: QINGDAO SHINA has a perfect team with more than 20 years experience. Technology of QINGDAO SHINA is original from Germany. What customers get from QINGDAO SHINA is not only one set of machine, but together with know-how.
2. What should I do if I want to start a new project or extent production, but I have no idea what should I do at the beginning?
A. Please send email to QINGDAO SHINA and tell QINGDAO SHINA your situation of the project, QINGDAO SHINA will supply one feasibility study report together with detailed proposal and technical suggestions only for your project.
3. How about the quality of machine manufactured by QINGDAO SHINA?
A. QINGDAO SHINA business concept is: “Start a career with essence, win through high quality”. QINGDAO SHINA follows the principle of “quality is most important” when manufacturing each machine. Besides, QINDAO SHINA decides to lengthen quality guarantee of each machine or production line to 1.5 years so that customers can use machine without worry.
4. How about the after-sales service of QINGDAO SHINA?
A. QINGDA SHINA has a good after-sales service team, all the engineers in the team has more than 10 years experience. QINGDAO SHINA can promise that after the machine arriving at customer’s factory, we will arrange our engineer in time accordingly to make installation. Commissioning and test run. QINGDAO SHINA’s customer service concept is: customers are always the first!
5. How can I start the machine when getting machine?
A. QINGDAO SHINA will arrange engineers with rich experiences to customer’s factory for installation, commissioning and test run. After then, engineers will make training for workers about how to start machine or production line until workers can start machine very good alone.
6. If there are some problems or questions during running machine or production line, what should I do?
A. Please call QINGDAO SHINA in time if you have any questions during production. QINGDAO SHINA will reply customers in time to make sure the production won’t be delayed.
