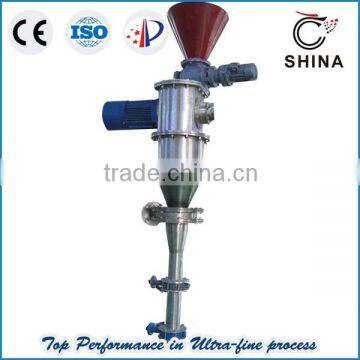

Shandong Small Size Air Classifier

PROCESS

This air classifiers series IMC, has been developed especially for ultra fine cut points.

With the IMC series we extended our program of the ITC—series.

The main point of its development was to achieve a high fineness of the end product.

A good sharpness, high efficiency and low specific energy consumption with highest fines output were the guideline for this target.

We could achieve these criteria by optimizing the dynamic of air flow, the material resistance and the multi-wheel concept.

With this series we can offer an air classifier to meet even the most exciting product requirements.

The classifying wheel of the series IMC is especially developed for highest strength during production.

The wheel is placed in a horizontal position. The rotor and the drive are designed as a complete module.

Also a wear protected wheel can be supplied.

FEATURES

-   1-6 rotors in a classifier chamber

-   Direct driven rotors

-   High speed drive system

-   Adjustable of cut point by variable rotor speed via frequency converter

-   Fine classification with high performance by special wheel design

-   Feed from bottom with main air stream for high feed rates

-   Best sharpness by most effective coarse classifying zone

-   Construction material can be mild steel, stainless steel or wear protected

-   The solid construction and the selected materials of construction give a long life time with low                   maintenance costs.

Chemicals, minerals (such as calcium carbonate, kaolin, classification of quartz, barite, talc, graphite and other non-metallic mineral products), ceramic, refractory material, medicine, pesticide, food, new materials and other industries.

Air Classifier IMC Series with Single Rotor

Remarks:  Capacities based on limestone (density 2,7 kg/dm³)

          Feed capacity approx.3-times fines capacity

          Fines content in fee approx.70%

          Data depending on tests

Quality guarantee is for one year. During one year, if there is any problem or destroy (non-artificial damage), we will repair or change for free. After one year, if there is any problem, we will still supply good service, and we will charge cost if parts needed to be changed.

- Flow sheet of the process
- Electrical interlocking sequence
- Dimension drawings for supplied equipment
- Operation manuals
- Technical information and specification for local supply
- Engineering drawings for local supplies
- Technology data and drawings for installation and commissioning
- Spare parts list
