2015 New TOBEMAC JZC350DHL Concrete Mixer With Lift

FOB Price

US$ 3,600 - 4,200 / Set

1 Set(Min. Order)

Port Ningbo Port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Zhejiang, China
Brand Name	TOBEMAC	Model Number	JZC 350 DHL
Motor Power	Diesel engine 15-18HP	Mixing Power	13.2kw
Charging Capacity	560L	Reclaiming capacity	350L
Speed of Mixing Drum	14rpm	Water Supply Mode	water pump
Working Cycle Period	1min	Discharge Way	Reversing
Outline Dimension	315022003200mm	After-sales Service Provided	Overseas service center available

Product Description

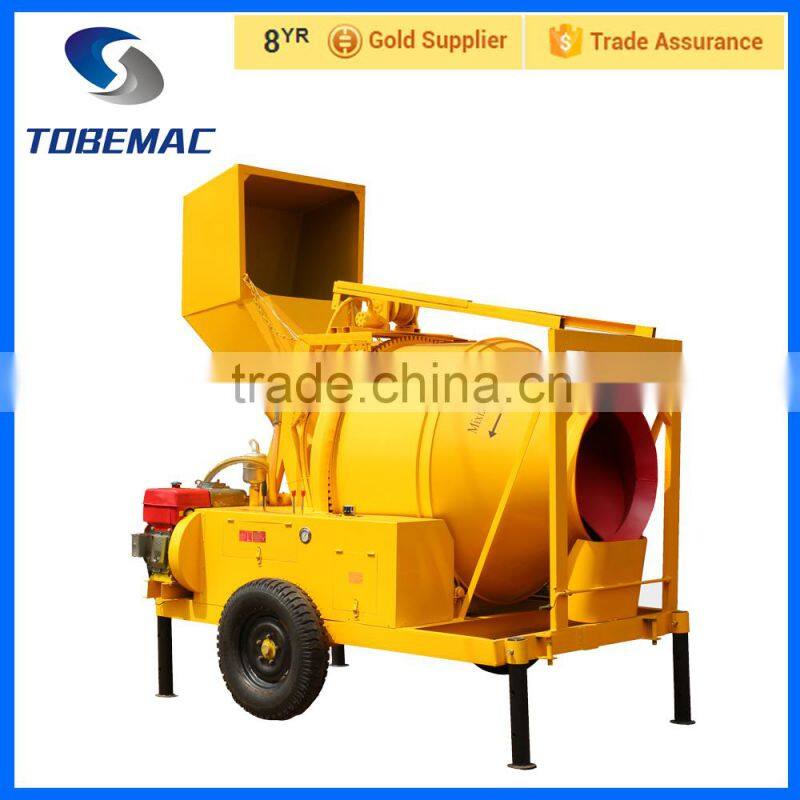

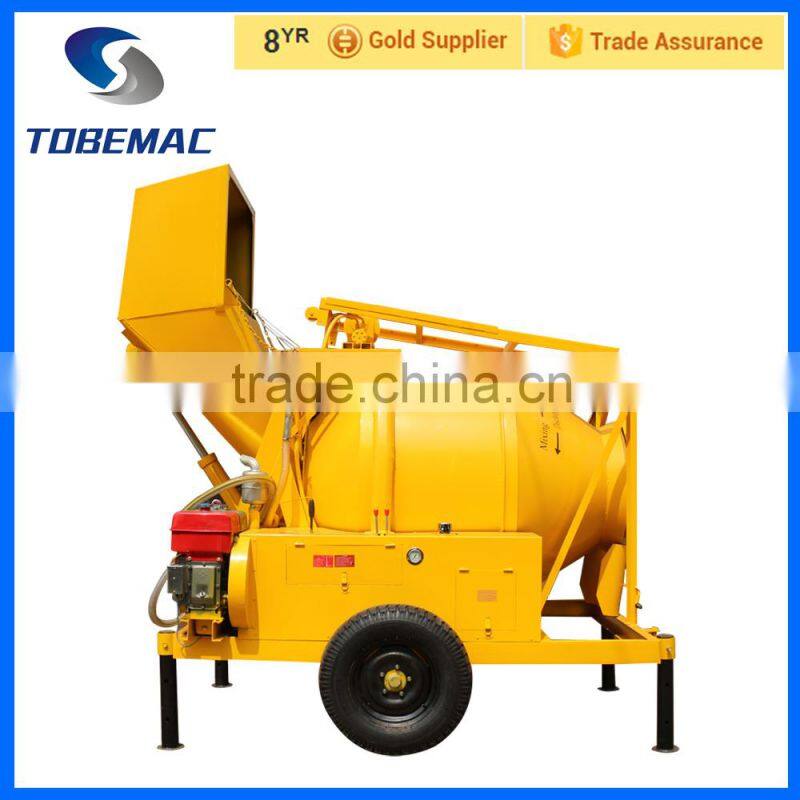

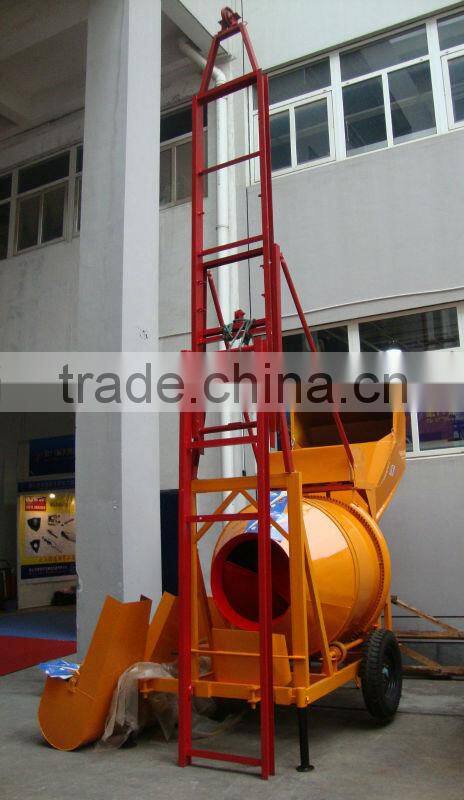

2015 new TOBEMAC JZC350DHL Concrete Mixer With Lift

Concrete Mixer

Wujun Concrete Mixer (cement mixer) is a device that homogeneously combines cement, aggregate such as sand or gravel, and water to form concrete. A typical concrete mixer uses a revolving drum to mix the components. For smaller volume works portable concrete mixers are often used so that the concrete can be made at the construction site, giving the workers ample time to use the concrete before it hardens.

CM Series Concrete Mixers are with portable and compact design makes it ideal for DIY using. Strength and durability material provide a long service life.

Model	JZC 300DHL	JZC 350DHL
Diesel engine options	Air-cooled Diesel Engine 10HP ,Electric start	Water-cooled diesel engine 15 HP or YANMAR 18HP,Electric start
Out put per hour	6-10 m³/h	10-14 m³/h
Unmixed capacity	500L	560L
Mixed capacity	300L	350L
Drum rotation speed	14 r/min	14 r/min
Working Cycle Period	1.5 min	1.5 min
Drum Thickness	6-8 mm	6-8 mm
Maximum Size of Aggregate	60 mm	60 mm
Productivity	6-10 m³/h	10-14 m³/h
Loading hopper	By hydraulic	By hydraulic
Hopper loading time	About 7 seconds	About 7 seconds
Material discharging way	Reverse-Rotation	Reverse-Rotation
Raising system	By hydraulic	By hydraulic
Pressure of raising hydraulic motor	12Mpa	12Mpa
Raising lock device	Gearbox	Gearbox
Raising capacity	150L(300kg)	200L(500kg)
Lifting Height	18 m	18 m
Lifting time	About 15 seconds	About 15 seconds
Overall Size(L×W×H)	3000×2100×3050 mm	3150×2200×3200 mm
Type Size	6.50-16	6.50-16
Entire Machine Weight	2200 kg	2400 kg

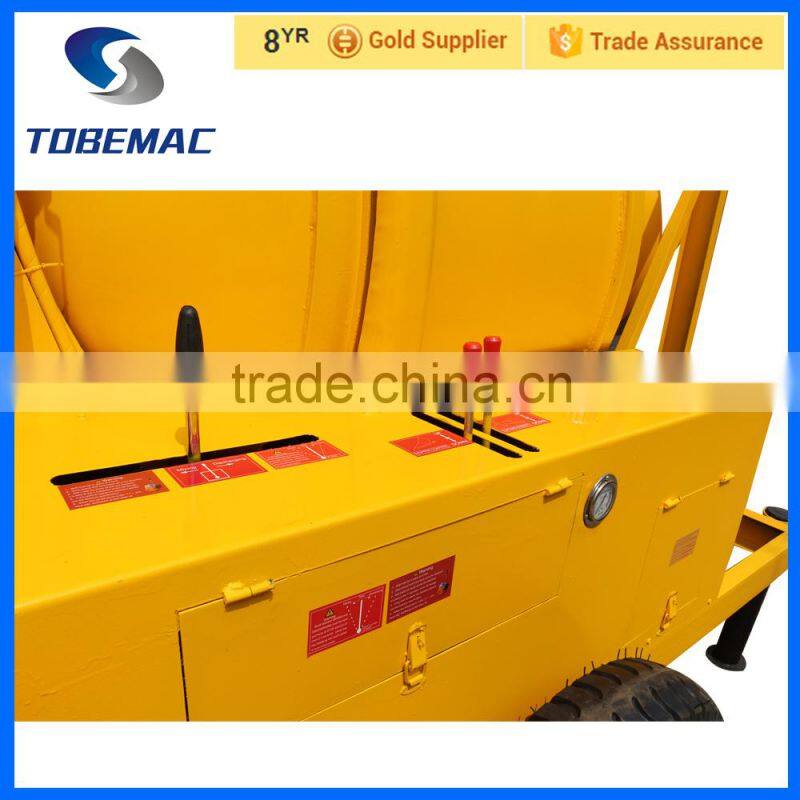

Detailed Photos
