160T Good Vertical Injection Molding Machine VS160D-G
US$ 1,500 - 80,000
/ Set
1 Set(Min. Order)
- Zhongshan
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
85T Good Vertical Injection Molding Machine VS85D-G
-
200T Good Vertical Injection Molding Machine VS200D-G
-
55T Good Vertical Injection Rotary Table Molding Machine
-
V85R2 Good Vertical Injection Rotary Table Molding Machine
-
120T Good Vertical Rotary Table Injection Molding Machine
-
160T Good Vertical Injection Rotary Table Molding Machine
Product Details
| Condition | New | Type | Preform Injection | |
| Style | Vertical | Brand Name | Qianke | |
| Model Number | VS160D-G | Place of Origin | Guangdong, China | |
| Plastic Type | Thermoplastic | Automatic | Yes | |
| Injection Weight | 296-442g | Injection Rate | 112(121)mm/s | |
| Clamping Force | 160Tf, 30-500 Ton | Opening Stroke | 300mm | |
| Certification | CE | After-sales Service Provided | Overseas service center available |
Product Description
Specifications
1.Clamping force 35-500tons2.Vertical clamping,Vertical injection,easy to insert
3.Famous brand in each parts.
4.Yuken,Omron
1,Qualifications
| Unit | V160SD | |||||
Injection Unit | Screw Diameter | mm | 45 | 50 | 55 | |
| Theoretical Injection Volume | cm3 | 318 | 393 | 475 | ||
| Injection Weight(PS) | g(oz) | 236(10.4) | 365(12.8) | 442(15.6) | ||
| Max.Injection Pressure | Mpa(kgf/cm2) | 218(2226) | 177(1803) | 146(1490) | ||
| Injection Rate | cm3/s | 178 | 220 | 266 | ||
| Injection Speed | mm/s | 112(121) | ||||
| Screw Speed Rotation | r.p.m | 0-300 | ||||
| Nozzle Out From Platens | mm | ≥45 | ||||
| Clamping Machine | Clamping Force | KN(tf) | 1568(160) | |||
| Clamping Stroke | mm | 300 | ||||
| Min.Mold Thickness | mm | 300(400) | ||||
| Max.Opening | mm | 600(700) | ||||
| Distance Between Tie Bars | mm | 860*420 | ||||
| Max.Mould Size | mm | 640*630 | ||||
| Platen/Slide Size | mm | 1400*650 | ||||
| Ejector Distance | mm | 125 | ||||
| Ejector Force | KN(tf) | 45(4.6) | ||||
| Others | System Pressure | Mpa(kgf/cm2) | 13.7(147) | |||
| Oil Tank Capacity | L | 500 | ||||
| Electric Power | KW(HP) | 22.5(30) | ||||
| Heater Power | KW | 13.8 | ||||
| Machine Dimensions | L*W | mm | 2296*2160 | |||
| H | mm | 3622(4654) | ||||
| Machine Weight | tf | 9 | ||||

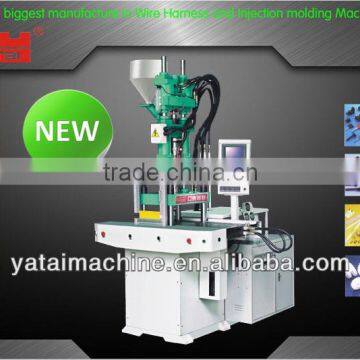

2,Pictures
1.Clamping force 35-200tons
2.Vertical clamping,Vertical injection,easy to insert
3.Famous brand in each parts.
4.Yuken valves ,Omron PLC,Siemens Motor,
