3leds Smd5050 Led Injection Module Light

Product:  3leds smd5050 led injection module light

Detailed Product Description

1. Model number:led injection module+ OP-5ISM6819-3
2. Size: led injection module +68.2*19.5*5.7mm
3. Material: led injection module +Plastic
4. IP rate: led injection module +IP67
5. Certification: led injection module +CE/Rohs
6. Application: led injection module + back light for sign

Quick Detail:

• 3pcs 5050smd led back light
• Part No.: OP-5ISM6819-3
• Working Voltage:DC12V
• Power: 0.72W/pcs
• Available color Red/yellow/blue/green/white/warm white
• Size:68.2*19.5*5.7mm
• IP rate: IP67
• Viewing angle:120°
• Lumen:60-66lm
• Warranty: 2 years warranty
• Quick delivery: 5-7days
• Lifetime:80,000hrs
• Certificate: CE,Rohs
• Application: Back lighting for advertising signs,channel letters,light boxes,etc.

Description:

• Each module contains 3 SMD LEDs. Has wide viewing angle
• Super thin, only 4mm thick

• High intensity of each module, suitable for big & medium-sized LOGO & signage
• Perfect heat diffusion could prolong chips' lifespan
• each strip is not more than 30 pieces if series connection is adopted
• with hole on both ends, can be fixed by screw
• Input: DC12V
• IP rate: IP67
• lifespan: 80,000hrs

Applications:

• Widely used indoor/outdoor advertising sign, channel letter & signs with non-waterproof requirements

• Ideal for small channel letter & lighting box with depth about 5-8cm.
• Edge lighting of transparent diffused materials
• large area back lighting
• Emergency / rescue signs

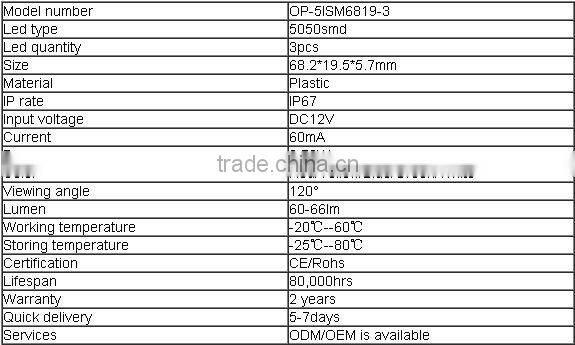

Specifications:

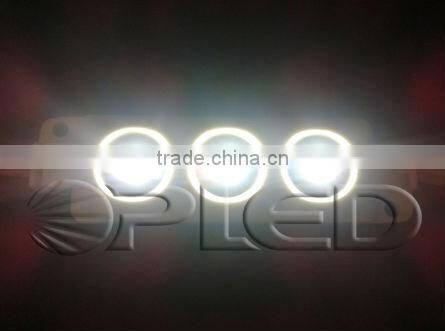

Lighting pictures:

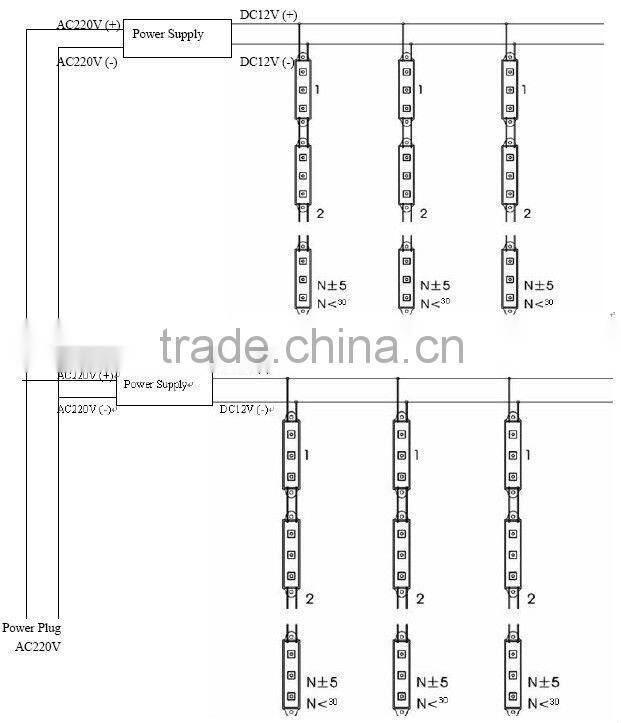

Installation Instruction:

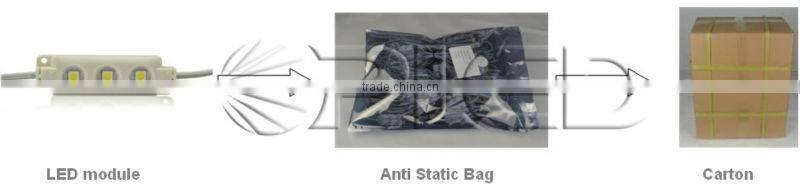

Packing details:

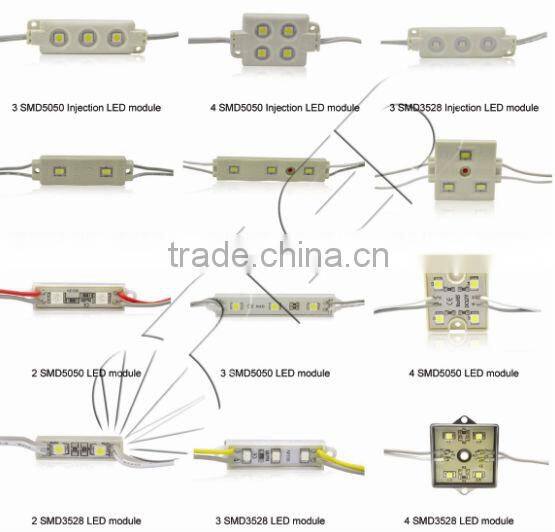

Related products:

Production View:

Customer Feedback:

Team View:

OEM Sevices Tips:

FAQ:

Q1: Can I have samples to test?

A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available. Please note, free samples is not acceptable.

Q2: Do you have any MOQ limited?

A: Our MOQ EXW is 5pcs, Our MOQ FOB is 100pcs.

Q3: What’s the lead time?

A: Sample :1-5days.

   Mass production: 7-10days.

Q4:How do you ship the goods and how long does it take?

A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 3-5days to arrive.

By air,by sea are also acceptable.

Q5: Do you offer guarantee for your products?

A: Yes, we offer two years guarantee for the products.

Q6: Do you accept drop shipping

A: Yes, it is available.

Competitive Advantage:

Fast delivery time

2 years warranty

Main products

Lowest price we can support
