Home > Products > ALL PRODUCTS > High Brightness 3 Smd 5050 Lens Led Green Laser Module for Bar
High Brightness 3 Smd 5050 Lens Led Green Laser Module for Bar
- shenzhen port
- Credit Card
You May Like
-
0.96w 3 Smd 5730 Lens Led Flashlight Module for Reading Lamp
-
Good Price 3 Smd 5730 Led Module for Marquee Letters
-
High Brightness Good Quality 2 5050 LED Outdoor Lighting With Lens Quality Choice
-
85-90LM 0.96w 3 5730 Smd Lens Led Aquarium Lights for Public
-
Trending Hot Products 3 5730 Smd Led Backlight for Advertising 2015
-
Waterproof 3 5730 Lens Led Module for Outdoor Christmas Laser Lights
Product Details
| Model Number | OP-5LSM7416-3 | Chip Material | AlGaInP | |
| Emitting Color | Other, red/yellow/blue/green/white | Luminous Intensity | 55-60lm | |
| Luminous Flux(lm) | 55-60 | Optical Attenuation(%) | 3 | |
| Power | Other, 0.72W, 0.72w | Power Dissipation | 0.72W | |
| Color Rendering Index(Ra) | 70 | Color Temperature | 2700-7000K | |
| Operating Temperature(℃) | -20, +60 | Storage Temperature(℃) | -30, +60 | |
| Place of Origin | Guangdong, China | Brand Name | OPLED | |
| Certification | CE |
Product Description

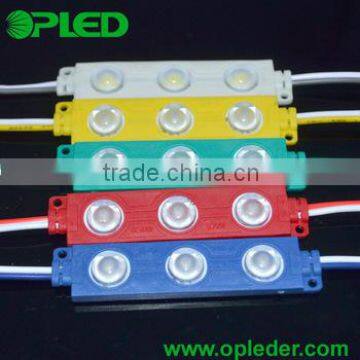

| Product Name: | high brightness 3 smd 5050 lens led green laser module for bar |
| Part No.: | OP-5LSM7416-3 |
| LED Type: | smd 5050 with 3 chips |
| LED Qty: | 3 pcs |
| Input Voltage: | DC12v |
| Power: | 0.72w |
| Emitting Color: | red/yellow/blue/green/pure white/warm white/cold white |
| Brightness (LM): | 55-60 |
| IP rate: | IP65 |
| PCB material: | FR |
| Wire: | 20AWG |
| Shell material: | PVC plastic |
| Lens: | 160 ° or 120 ° PC lens |
| Working Temperature: | -20℃ ~ +60℃ |
| Storage Temperature: | -30℃ ~ +60℃ |
| Life time: | 50000hrs |
| Storage Environment: | Indoor ventilation, Air should be no corrosive gas, and avoid direct sunlight |

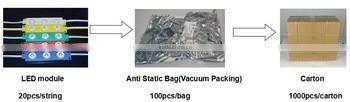

| Packing: | 100pcs/inner bag,1000pcs/carton |
| Weight: | 11.5KG/carton |
| Carton Size: | 46*30*30CM |
Accessories you might to use during installation:
1. LED Power supply
2. Fast connection for AC wire and DC wire:
Q1: Can I have samples to test?
A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available. Please note, free samples within 10pcs. and buyer pay for shipping cost.
Q2: Do you have any MOQ limited?
A: Our MOQ is 1000pcs.
Q3: What’s the lead time?
A: Sample :1-5days.
Mass production: 7-10days.
Q4:How do you ship the goods and how long does it take?
A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 3-5days to arrive.
By air,by sea are also acceptable.
Q5: Do you offer guarantee for your products?
A: Yes, we offer two years guarantee for the products.
Q6: Do you accept drop shipping
A: Yes, it is available.
Q7: What's the payment method you accept?
A: OPLED accept below three different payments:
1. T/T(Bank to bank payment)
2. Paypal (4% paypal commission should be included),it is popularly used for getting samples.
3. Western Union
