Pelco protocol converter
USD $70 - $120
/ Piece
1 Piece(Min.Order)
- Shenzhen
- T/T Credit Card
You May Like
-
AD,TYCO,AB,VISH,KC,DEAEK ,BOSCH protocol converter
-
AD protocol converter
-
Camera accessory PoE Switch for IP camera and NVR
-
Onvif 4CH 720P dome and bullet IP Camera System NVR Kits
-
AS-N405B-wifi Onvif 4CH 1080P WIFI NVR Kit IP bullet Camera
-
Onvif 4CH 720P 4pcs Mini IP Dome and Bullet Camera System NVR Kits
Product Details
| Place of Origin | Guangdong, China | Brand Name | Aliviz | |
| Model Number | AS-4010 Series |
Product Description
Specifications
Protocol converter mainly used in the field of convert different protocol and baud rate between Matrix ,keyboard controller.

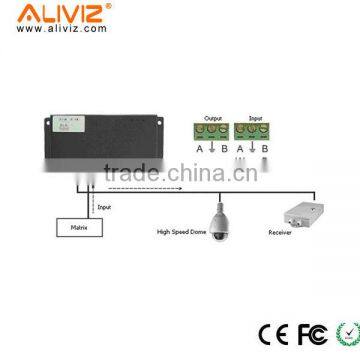

Protocol converter AS-4010 mainly used in the field of convert different protocol and baud rate between Matrix ,keyboard controller ,DVR or other host machine and PTZ, receiver or other terminal device . When DVR and matrix control the terminal device, the protocol converter box can play the function of connection and convert protocol. Protocol converter box support multi-protocol and baud rate which it is the necessary equipment in the large system of surveillance project.
1. Technical Parameters
Adaptor | AC220V or AC110V |
Power supply | 3W |
In /Communication | RS485 or Manchester |
Out/Communication | RS485 |
Work Temperature | -400C~+700C |
Size(mm) | 160 x 66 x 27 |
Weight(Kg) | 0.69 |
2. Multi-Protocol Support
Input Protocol :
AS-4010:PELCOD,PELCOPAD(RS422/485),DH,MOLYNX,PIH1016,ADT8060,
KODICOM-RX/KRE-301RX,V1200,KTD348-KTD304/4800,VICON,SANTACHI-450/9600
AS-4010AD:AD,TYCO,AB,VISH,KC,DEAEK
AS-4010PH:PHILIPS,BOSCH,UNIVISION
AS-4010DS:DALLES
Output Protocol :
PELCOD,PELCOP,VICON,KALATEL,CS-850/860,MOLYNX,SAMSUNG,AD,SAE,B01/TD500PIH1016
3. Multi-Baud Rate Support
1200,2400,4800,9600
