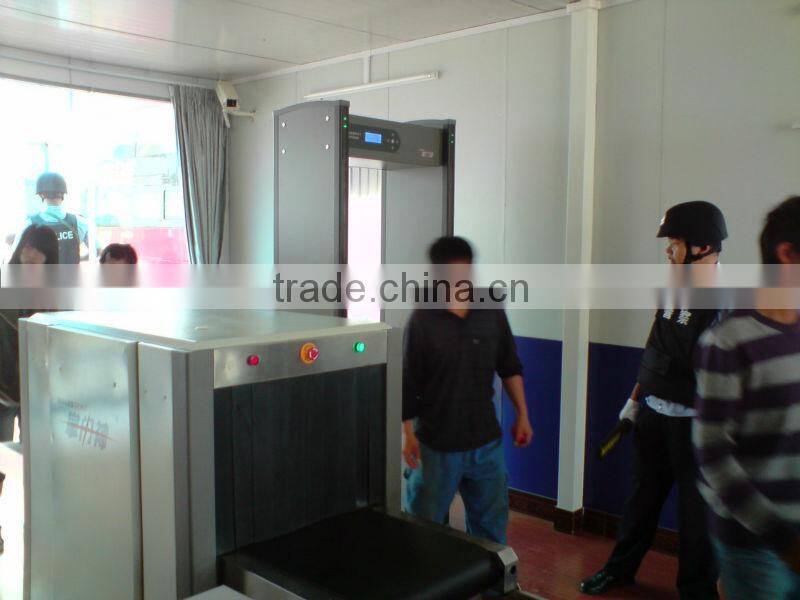

Airport Security X-ray Baggage Inspection Scanner XJ6550

Shenzhen Xinyuantong Electronics Co., Ltd.

Shenzhen Xinyuantong Electronics Co., Ltd.was established in 2000 with the registered capital of RMB 31.5 million, the total business space is 12,000 m², there are more than 260 employees, including 120 research, engineering and technical personnel; we are one professional high-tech company which provide the solutions to the public safety, and provide the complete production and integration services.

The Company is committed to the technical development and research of “GuardSpirit” series of security products, the developed products have been granted by 28 national patents, and have formed five categories of products including the metal detectors, X-ray baggage scanners, test products for radioactive materials, vehicle chassis inspection products, EOD and anti-explosion products.

Our Company has been committed in the business of access security, security equipments and services for 14 years, and during the period, we have provided safety and security services for hundreds of large-scale events, meetings, exhibitions, political and legal departments, railways, highways, ports and other places, including 26th Summer Universiade Shenzhen 2011, World Expo 2010 Shanghai, 16th Asian Games Guangzhou 2010, 14th FINA World Championship -Shanghai 2011, 24th Winter Universiade Harbin 2009, Olympic Games Beijing 2008, Wuhan-Guangzhou high-speed railway, Beijing-Shanghai high-speed railway and other key events and projects.

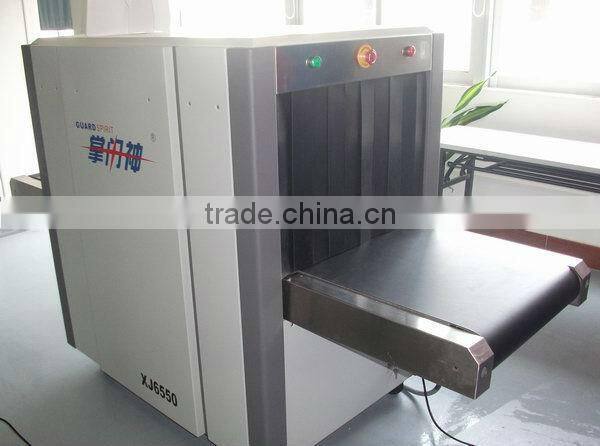

X-ray baggage scanner

Model: XJ6550

Tunnel Size : 650(W)×500(H)mm

Power Requirement: 220V AC (±10%) 50±3Hz

Power consumption:  1.0KW (Max)

Noise level:  <58dB

Conveyor Speed: 0.22m/s

Conveyor Max Load: 170 kg

Wire Resolution: 40AWG

Spatial Resolution: 1.0mm Horizontal and Vertical

Steel Penetration: 40mm

Single inspection dosage: < 1.2μGy

Leakage radiation: <0.1µGy/h

Film Safety: Guarantee ISO1600 Film

X-Ray Generator Specifications

Tube Current:0.4~1.2MA(adjustable)

Anode Voltage:100~160KV(adjustable)

Cooling: Sealed oil bath with forced air

Duty Cycle: Rated for 100%Duty Cycle

Beam Direction: Upward

Beam Angle: 60°

Detector: L-shaped Array

Image Display

19’’ High Resolution LCD Monitor

Display Resolution: 1280*1024;24 bit/pixel Color

Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level

Image storage: 100,000 pictures in real time (can be customized)

Zoom: 64 Times Enlarge, Whole screen continuous observation

Multi-Energy (M) color material identification: Organic objects in orange color, inorganic objects in blue color, mixture in green color

Edge enhancement: Object contour edge is more distinct

Super image enhancement: Image detail is more distinct

High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
