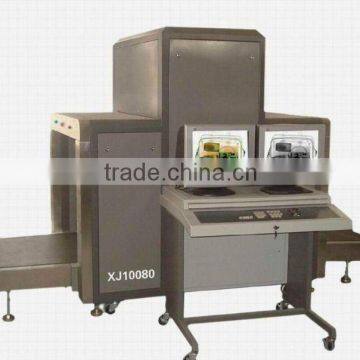

airport x ray machine for luggage or small cargo XJ10080

XJ SERIES X-RAY BAGGAGE INSPECTION EQUIPMENT

Model

XJ10080

X-ray Sensor

Dual Energy L-shaped photodiode array detector

Dampproof

 Advanced protecting technique to make the machine more durable

Grey Level

16384(14bit)

Tunnel Size

1000*800mm

Conveyor Type

Belt conveyor

Conveyor Speed

0.2-0.23 m/s

Conveyor Max.Load.

200kg

Dose per Inspection

<0.224uGY

Radiation Leakage

<0.1uG/h

Film Safety.

√

Resolution

0.0787mm

Penetration

34mm steel

Beam Direction

From top

Anode Voltage

80-160kv

Anode Current

0.2-1.25mA

Beam Divergence

80°

Cooling

sealed oil cooling +  100% Dutycycle

Monitor

19 inch LCD screen *2

Storage Temperature

 -40°C~+70°C

Storage Humidity

 10%~95%

Operating Temperature

 -10°C~+45°C

Operating Voltage

220VAC(+10%~-15%),50Hz±3Hz

Power

Standby :220W;Working:750W

Size

2670*1080*1580mm

IMAGE FUNCTION

Real Time Storage Image

 100,000 pictures

Zoom & Zones

 1-9 image zones,2,4,8 times enlargement

Image Search

 Search images according to stored time

Image Display

 B/W,pseudo color image

Alarm

√

Review

√

Density Enhancement

√

Negative/posiyive image

√

Light/Dark Enhancement

√

Inorganic/Organic Stripping

√

Grey Scanning

√

Edge Enhancement

√

One Key Power Off

√

System Self-diagnostic

√

System Status Display

√

Automactic Count

√

Date/Time Display

√

Rush Stop Protection

√

Dangerous Alarm

√

System Failure Alarm

√
