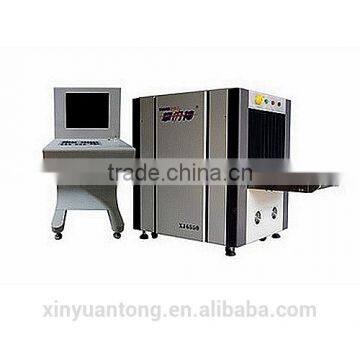

XJ6550 China Factory Parcel X-ray scanner

Parameter:

*Tunnel Size……………650mm(W)*500mm(H)

*Load Weight…….........170Kgs

*Conveyor Speed……..0.2-0.23m/s

*Radiation Leakage…..0.1 μG/h

*Penetration…………..40mm steel

*X-ray resolution……...40 AWG

X-Ray Generator:

*X-ray Beam Direction………From bottom       *Beam Divergence……….. …80°

*Tube Voltage………………..80-160Kv          *Electronic Current…………0.2-1.25mA

*Cooling……………………Sealed oil cooling + 100% Dutycycle

Image Function:

*X-ray Converter Arrangement…. Dual Energy L-shaped photodiode array detector

*Inorganic/Organic Stripping…… ..Organic substances display in Orange, Inorganic

substances display in blue, mixtures display in green

*Maximum Image Resolution……..1024*768

*Image Storage……………………100,000pcs

*Image Display Color………………Black/White & Color

*Grey Level………………………..65536

*Zone & Zoom…………………... .1-9 image zones, 2,4,8 times zooming

*Other Function……………………Alarm, Review, Density Enhancement, Negative/positive image,

                                                       Light/Dark Enhancement,automatic count, One Key Power Off, Working                                                            status display, Date & time display,Rush Stop Protection,

                                                       Dangerous Alarm, System Failure Alarm etc

Image Display
19’’ High Resolution LCD Monitor
Display Resolution: 1280*1024;24 bit/pixel Color
Contrast Sensitivity: 24 Visible Levels, 4096 Gray Level
Image storage: 100,000 pictures in real time (can be customized)
Zoom: 64 Times Enlarge, Whole screen continuous observation
Multi-Energy (M) color material identification: Organic objects in orange color, inorganic objects in blue color, mixture in green color
Edge enhancement: Object contour edge is more distinct
Super image enhancement: Image detail is more distinct
High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
Low penetration display: Increase the contrast of dark area in image to make the area that is difficult

to penetrate appear more clearly.
Brightening/dimming: Increase/Decrease brightness of image
Image recurrence: Display the previous twenty images and process any one of them
Image restoration: Restore image to initial status
Assist to detect drug and explosive powder

Special features:
Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
Safety ray: Ray is transmitted under automatic control, avoiding the error
One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
Eagle eye: Capable of expediently observing the magnifying area
Self-diagnosis function: Give message automatically if malfunction for prompt maintenance

Environment Specifications:
Operating temperature/humidity: 0℃ ~ 45℃/20% ~ 95% (Non-condensing)
Storage temperature/humidity: -20℃ ~ 60℃/20% ~ 95% (Non-condensing)

For transportation of x-ray luggage scanner, we use  plywood wooden box


 Application

Airports, railway stations, banks, courts, Embassies, Jail, Entertainment places, Gymnasiums, Exhibition Center etc.

Our Company (Shenzhen Xinyuantong Electronics Co., Ltd., hereinafter “Company”) was established in 2000 with the registered capital of RMB 31.5 million, the total business space is 12,000 m2, there are more than 260 employees, including 120 research, engineering and technical personnel; we are one professional high-tech company which provides the solutions to the public safety, and provides the complete production and integration services.
