24 multi-zones Walk Thru Metal Detector/Security full body scanner/Security Guard Detector

Specifications

  24 multi-zones Walk Thru Metal Detector/Security full body scanner/Security Guard Detector

Technical parameterody scanner/S

1.Electric current: AC85V~264V/50-60HZ

2.Power: <20W, low consume, low radiation

3.Net weight: 70KG

4.Workplace environment: -20°C~+45°C

5.Standard: GB15210-2003, CE

6.Standard External size: 2225mm(H)X860mm(W)X560mm(D)

7.Standard Internal size: 2055mm(H)X700mm(W)X500mm(D)

Picture of XYT2101LCD

Characteristic & Function:

1.LCD screen with Infrared remoter controller, both Chinese & English program, easy to operate.

2.Adopt advanced digital signal processing control replaced traditional analog signal control, better stability.

3.Program Self-diagnostic when power on, automatically checking left and right door panel, LED light and choose the best working frequency.

4.Detecting Zones: 6,8,12,16,18,24 detecting zones for option.

5.Sensitivity adjustable: Each zone has 255 degree sensitivity level, three patterns: High, middle, Low for different requirements. Preset the metal size, weight, volume, location to exclude the coin, key, belt.

6.Sound Alarm: 1-25s alarm time, 255 different sound volume for choose

7.LED light alarm: LED bar graph on left and right door frame, visible alarm simultaneously to ascertain the layout of metal articles

8.Password protection, only the authorized person can operate.

9.Anti-interference function, using advanced interactive transmitting and receiving to avoid interference, frequency range from 4K-8K to avoid frequency interference

10.6 preset programs for security application versatility

11.Automatically count passengers and alarm times

12.Microprocessor control on top unit, anti-interference and self-diagnose transmission channel to avoid internal and external interference.

13.Easy assembly: designed with only 2 pieces cables and 8 screws, Simply-to-follow instruction.

14.Harmless to human body: is harmless with heart peacemaker, pregnant women, magnetic floppy, recording tapes, etc.

15.For option : Battery backup, 2-8 hours for option

16.For option : Network support

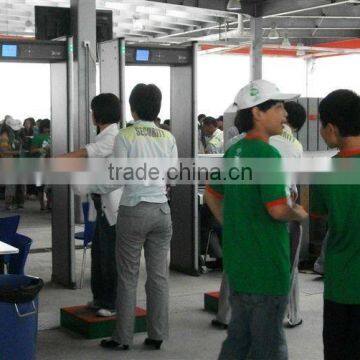

Application : Airport, Banks, Embassies, Entertainment environments, Gymnasiums, Exhibition Centers for luxurious appearance
