18 zones archway metal detector/Security Walk Through Gates

18 zones archway metal detector/Security Walk Through Gates

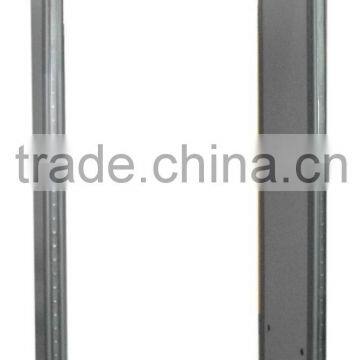

(1)Picture of walk through metal detector

(2). Specifications

Technical parameter

Electric current: AC85V~264V/50-60HZ

Power: <20W, low consume, low radiation

Net weight: 70KG

Workplace environment: -20°C~+45°C

Standard: GB15210-2003, CE

Standard External size: 2230mm(H)X835mm(W)X580mm(D)

Standard Internal size: 1990mm(H)X700mm(W)X500mm(D)

Characteristic & Function

1. LCD screen with Infrared remoter controller,
2. both Chinese & English program, easy to operate.
3. Adopt advanced digital signal processing control replaced
4. traditional analog signal control, better stability.
5. Program Self-diagnostic when power on, automatically checking left and right door panel, LED light and choose the best working frequency.
6. Detecting Zones: 16 detecting zones. Separate left and right side detection. Simultaneous alarm from multi- zones;
7. Sensitivity adjustable: Each zone has 255 degree sensitivity level, three patterns: High, middle, Low for different requirements. Preset the metal size, weight, volume, location to exclude the coin, key, belt.
8. Sound Alarm: 1-25s alarm time, 255 different sound volume for choose
9. LED light alarm: LED bar graph on left and right door frame, visible alarm simultaneously to ascertain the layout of metal articles
10. Password protection, only the authorized person can operate.
11. Anti-interference function, using advanced interactive transmitting and receiving to avoid interference, frequency range from 4K-8K to avoid frequency interference
12. 6 preset programs for security application versatility
13. Automatically count passengers and alarm times
14. Microprocessor control on top unit, anti-interference and self-diagnose transmission channel to avoid internal and external interference.
15. Easy assembly: designed with only 2 pieces cables and 8 screws, Simply-to-follow instruction.
16. Harmless to human body: is harmless with heart peacemaker, pregnant women, magnetic floppy, recording tapes, etc.
17. For option : Battery backup, 4 hours
18. For option : Network support

Application

The XYT2101S is designed to Airport, Banks, Embassies, Entertainment environments, factories, stores,

Gymnasiums, Exhibition Centers for luxurious appearance

Certificate

Project & Exhibition

2012 18^TH African union summit meeting

2011 Universiade Shenzhen Metro

2010 Shanghai World Expo
