2016 Best with PIC18F458 chip ! opcom opel diagnostic interface scanner can obd2 for opel V1.59 op com opel can bus interface

 Your Attention Please:

Support System: Windows XP/Windows 7 32 B
yte

If Tips can not find the USB Driver,please install the USB Driver by yourself from The CD.
Many Thanks !

OP COM For OPEL

With PIC18F458 Chip
Firmware V1.59
Software 120309A

Introduce:

Op Com is a PC based diagnostic program.

It covers almost all Opel cars, even new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B.

The program let you to read out and clear fault codes, shows you live data, lets you to perform output test, and supports remote, and key programming.
The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few example.

Function:

Since Opel uses many pin in the OBD connector, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication.
PIN3, PIN7, PIN8, PIN12 = Serial Link ( ISO9141, KW81, KW82, KWP2000 )
Fault codes will be show with all available information:
Full fault code text description
Full status information (Present, Not present, Intermittent)
The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling
module, Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few examples.
The diagnostic inteface is USB port based, so there will be NO COMPATIBILITY ISSUES, with serial to USB
converters.
The speed of the communication over the USB-BUS is enough to handle the awesome speed of the High-Speed
CAN-BUS systems, which is currently 500kbps. This is the main reason, why only the USB port based interface is
available for CAN-BUS. Compared to TECH2, which is the dealers tool (with a 32 MB card+CANdi interface), the price of OP-COM is quite affordable.
Not to mention the free software updates, which can be downloaded from the internet.
With OPCOM, you can learn keys to immobiliser, and remote keys to the central door locking, or alarm. You can also reset, and program the following immobiliser related items: ECM, BCM, IPC.
You will need the vehicle security code, which can be found on the CAR-PASS. You can also reset, and program the Service interval reminder on Astra-G, Zafira, Corsa-C, Meriva, Tigra-B
You can code SAB6, and SAB8 airbags with the software.
OP-COM is under continous development, new version will be availabe approximately every 3-4 month.OP-COM is currently available in English.

Packing List:

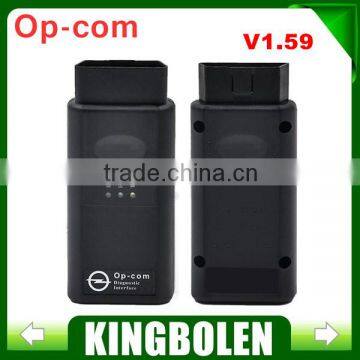

1.OP COM Interface
2.USB Cable
3.Software and Drivers CD
