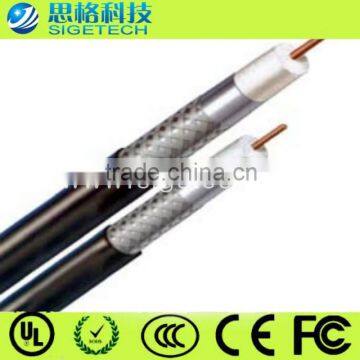

Wholesale Coaxial Cable rg7 coaxial cable

FOB Price

US$ 0.2 - 3 / Kilometer

5000 Kilometers(Min. Order)

Port Shenzhen Hongkong
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	SIGETECH
Model Number	SGCOAXIAL
Number of Conductors	1

Product Description

Preface

This product is Wholesale Coaxial Cable rg7 coaxial cable

We can manufacture below series products, It may be not you needed,However, we can make custom products which is accord with your meaning.For example,we can make the inner conductor,braid,jacket material,etc.Pls contact and tell our salesman your idea.

Our Product is With reference to Japan Kansai Standards,Military Standards(MIL-C-17) or TIMES'LMR Standards.We can also provide D-FB cable jumper,JRF-LMR cable jumper,RF feeder jumper cable etc.

D-FB	C-FB	RG	SLMR	SYV	SHR	Semi-rigid/flexile	Others
1.5D-FB	2.5C-FB	RG6	SLMR100	SYV-50-2	SHR-1.5D	SM047	3D-2V
3D-FB	3C-FB	RG8	SLMR195	SYV-50-3	SHR-3D	SM086	3D-FV
4D-FB	4C-FB	RG11	SLMR200	SYV-50-5	SHR-4D	SM086-25	H-1000
5D-FB	5C-FB	RG 58	SLMR240	SYV-50-7	SHR-5D	SM086-75	QR 500 JCA
7D-FB	5C-FB-4P	RG59	SLMR300	SYV-50-9	SHR-2.5C	SM141	QR 540 JCA
8D-FB	6C-FB	RG59u	SLMR400	SYV-50-12	SHR-3C	SM141-25	RG7
10D-FB	6C-FB-4P	RG62	SLMR500	SYV-75-1.5	SHR-5C	SM141-35	RG60
	7C-FB	RG63	SLMR600	SYV-75-2	SHR-7C	SM141-75
	9C-FB	RG142		SYV-75-2.5	SHR-50-2	SM141-100
	12C-FB	RG174		SYV-75-3	SHR-50-3	SM160
		RG178		SYV-75-4	SHR-50-5	SM250
		RG179		SYV-75-5	SHR-50-7	SM250-35
		RG180		SYV-75-7	SHR-50-9	SM250-75
		RG187		SYV-75-9	SHR-75-1.5	SMF141
		RG188		SYV-75-12	SHR-75-2	SMF250
		RG196		SYV-100-7	SHR-75-2.5	SMFS250 SOFT
		RG212			SHR-75-3	SMFT141
		RG213			SHR-75-4	SMFT250
		RG214			SHR-75-5	SMT047
		RG216			SHR-174	SMT086
		RG223			SRHR-75-5	SMT141
		RG302				SMT160
		RG303				SMT250
		RG304				1-2RF
		RG316				1-4RF
		RG393				3-8RF
		RG400
		RF1.13
		RG402
		RG403
		RG405

Item Descriptions

Product Name: Wholesale Coaxial Cable rg7 coaxial cable

Item	4D-FB	5D-FB	7D-FB	8D-FB	10D-FB	12D-FB
Inner conductor	1.42	1.8	2.6	2.8	3.5	4.4
Dielectric	3.80	5.0	7.3	7.8	10.0	12.4
Outer conductor	3.94	5.7	8.2	8.8	11.0	13.6
Jacket	6.10	7.5	9.8	11.1	13.0	15.6

Performance

Item		4D-FB	5D-FB	7D-FB	8D-FB	10D-FB	12D-FB
Min. bending radius (mm)		30	35	45	55	65	75
Operating temperature (°C)		-25 °C~ + 70°C~
Installation temperature (°C)		-25 °C~ + 70°C~
Nominal weight (kg/m)		0.05	0.08	0.10	0.16	0.25	0.35
Flat plate crush resistance (kg/mm2)		0.36	0.54	0.71	0.80	0.95	1.55
Tensile strength (kg)		36.3	54.5	72.6	86	125	150
DC resistance ( /km)	Inner conductor (CCA)	10.50	6.91	3.31	2.86	1.82	1.15
DC resistance ( /km)	Outer conductor	12.76	10.5	11.1	9.25	5.3	3.4
Insulation resistance (M /Km)		5000
Dielectric strength (kv)		1.6
Velocity of propagation (%)		82	82	82	83	81	81
Peak power rating (kw)		5.2	8.8	15	16	25	38
Cutoff frequency (GHZ)		30	23	15.8	15.1	11.9	9.6
Characteristic impedance ( )		50
V.S.W.R		≤1.3
Voltage withstand (VDC)		1000	2000	2500	2500	3000	4000
Capacitance (pF/m)		81	81	84	84	84	84
Inductance (μH/m)		0.20	0.20	0.21	0.21	0.21	0.21
Shielding effectiveness		>90dB
Phase stability		<18ppm/°C

RG Series

Construction	Conductor		Insulation		Shield		Impedance
Type	Material	Diameter(mm)	Material	Diame(mm)	Material	Diam(mm)	(ohm)
RG6	CCS	1/1.02	FPE	4.57	AP+48P/0.12 Al Braid	6.93	75
	BC	1/1.02	FPE	4.57	AP+48P/0.12TC Braid	6.93	75
RG8X	TC	19/0.29	FPE	4	36AWG/ TC Braid	6.25	50
RG11	CCS	1/1.63	FPE	7.11	AP+64P/0.12 Al Braid	10.16	75
	BC	1/1.63	FPE	7.11	AP+64P/0.12 TC Braid	10.16	75
RG58	TC	19/0.18	PE	2.95	36AWG/ TC Braid	4.95	50
RG59	CCS	0.81	FPE	3.66	AP+ 96P/0.12 Al Braid	6.1	75
	BC	0.81	FPE	3.66	AP+ 96P/0.12 TC Braid	6.1	75
RG59/U	CCS	0.574	PE	3.7	34AWG/ BC Braid	6.15	75
RG62	CCS	0.643	Polyethylene	3.7	34AWG/ BC Braid	6.15	93
RG63	CCS	0.643	Polyethylene	7.24	34AWG/ BC Braid	10.29	125
RG142	SCCS	0.94	PTFE	2.95	36AWG/ SC Braid	4.95	95
RG174	CCS	7/0.16	PE	1.52	38AWG/ TC Braid	2.8	50
	BC	7/0.16	PE	1.52	38AWG/ TC Braid	2.8	50
RG178	SCCS	7/0.1	PTFE	0.83	38AWG/ SC Braid	1.8	50
RG179	SCCS	7/0.102	PTFE	1.6	38AWG/ SC Braid	2.54	75
RG180	SCCS	7/0.102	PTFE	2.6	38AWG/ SC Braid	3.6	95
RG187	SCCS	7/0.102	PTFE	1.6	38AWG/ SC Braid	2.67	75
RG188	SCCS	7/0.17	PTFE	1.52	38AWG/ SC Braid	2.67	50
RG196	SCCS	7/0.102	PTFE	0.86	38AWG/ SC Braid	1.71	50
RG212	SC	1.41	PE	4.7	34AWG/ Double BC Br	8.4	50
RG213	BC	7/0.75	PE	7.25	33AWG/ BC Braid	10.29	50
RG214	SC	7/0.75	PE	7.25	34AWG/ SC Braid	10.8	50
RG216	TC	7/0.40	PE	7.25	34AWG/ BC Braid	10.8	75
RG223	SC	0.89	PE	2.95	36AWG/ SC Braid	5.4	50
RG302	SCCS	0.64	PTFE	3.7	38AWG/ SC Braid	5.1	75
RG303	SCCS	0.94	PTFE	2.95	36AWG/ SC Braid	4.3	50
RG316	SCCS	7/0.17	PTFE	1.52	38AWG/ SC Braid	2.5	50
RG393	SC	7/0.79	PTFE	7.24	34AWG/ SC Braid	9.9	50
RF1.13	SC	7/0.08	PTFE	0.68	SC Braid	1.17	50
RG1.37	SC	7/1.02	PTFE	0.85	38AWG/ SC Braid	1.37	50
RG141	SC	0.93	PTFE	2.95	Overall Tinned Copper	4.1	50
RG402
RG405

SYV Series

	Conductor		Insulation		Shield		Impedance
Type	Material	Diameter(mm)	Material	Diameter(mm)	Material	Diameter(mm)	(ohm)
SYV-50-2	CCS	0.68	Solid PE	2.2	96P/ 0.12 BC Braid	4	50
	BC	0.68	Solid PE	2.2	96P/ 0.12 BC Braid	4	50
SYV-50-3	CCS	0.9	Solid PE	2.98	96P/ 0.12 BC Braid	5	50
	BC	0.9	Solid PE	2.98	96P/ 0.12 BC Braid	5	50
SYV-50-5	CCS	1.4	Solid PE	4.8	96P/ 0.12 BC Braid	7.2	50
	BC	1.4	Solid PE	4.8	96P/ 0.12 BC Braid	7.2	50
SYV-50-7	BC	7/0.75	Solid PE	7.25	168P/ 0.12 BC Braid	10.29	50
SYV-50-9	BC	7/0.95	Solid PE	9	168P/ 0.12 BC Braid	12.2	50
SYV-50-12	BC	7/0.95	Solid PE	11.5	168P/ 0.12 BC Braid	15	50
SYV-75-1.5	BC	0.26	Solid PE	1.6	80P/ 0.12 BC Braid	3	75
SYV-75-2	BC	7/0.12	Solid PE	1.95	80P/ 0.12 BC Braid	3.6	75
SYV-75-2.5	BC	7/0.14	Solid PE	2.4	96P/ 0.12 BC Braid	4	75
SYV-75-3	BC	1/0.50	Solid PE	3.1	96P/ 0.12 BC Braid	5.2	75
SYV-75-4	BC	0.59	Solid PE	3.7	96P/ 0.12 BC Braid	6	75
SYV-75-5	BC	7/0.26	Solid PE	4.8	96P/ 0.12 BC Braid	7.2	75
SYV-75-7	BC	1/1.20	Solid PE	7.3	168P/ 0.12 BC Braid	10.4	75
SYV-75-9	BC	1.37	Solid PE	9	168P/ 0.12 BC Braid	12.2	75
SYV-75-12	BC	7/0.63	Solid PE	11.5	168P/ 0.12 BC Braid	15	75
SYV-100-7	BC	0.6	Solid PE	7.25	144P/ 0.12 BC Braid	10.3	100

Wholesale Coaxial Cable rg7 coaxial cable

The Way of Payment

1. We accept T/T,Western Union,MoneyGram,Paypal,Escrow or Cash.

2. If less than or equal to 5000USD,Please 100% T/T to our company account number.
3. If more than 5000USD, we are accept prepaid 30% and 70% before shipment.

Shipping Method

1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)
2. Orders processed timely after the payment verification.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
4. The images shown are not the actual item and are for your reference only.
5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
6. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible.
7. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.

Guarantee

1. 12 months Manufacturer`s limited Warranty for defective items (excluding items damaged and/or misused after receipt). Accessories come with a 3-month warranty.

2. Defective items MUST BE reported and returned within the warranty period (and in the original packaging, if possible). You must tell us what the defect is and give us your order number. WE DO NOT REPAIR OR REPLACE ITEMS WITH AN EXPIRED WARRANTY.

Return/Refund

1. You have 7 days to contact us and 30 days to return it from the date it was received. If this item is in your possession more than 7 days, it is considered used and WE WILL NOT ISSUE YOU A REFUND OR REPLACEMENT. There are NO EXCEPTIONS! Shipping cost is bear by both seller and buyer in half.

2. All returned items MUST BE in the original packaging and you MUST PROVIDE us with the shipping tracking number, specific reason for the return, and your po#.

3. We will refund YOUR FULL WINNING BID AMOUNT, upon receipt of the item in its original condition and packaging with all components and accessories included, AFTER BOTH Buyer and Seller cancel the transaction. OR, you may choose to have a replacement.

Feedback

1.We maintain high standards of excellence and strive for 100% customer satisfaction!
2.We request that you contact us immediately BEFORE you give us neutral or negative feedback.
3.Feedback is very important for us. We can satisfactorily address your concerns.It is impossible to address issues if we do not know about them!
4.Of course,We hope that all buyers can put forward valuable opinion to us,It's extremely helpful
for us.
