Molten Steel Mould (round, Oval, Double Thick)

Product Name

Immersion Sampler

Type

QR-342Y-1200mm

Sampler Cap

34mm*12mm

Quartz Tube

8.8mm*40mm

Aluminium

0.3g

Slag cap

32.8mm*27mm

Inner diameter of paper tube

51(+/-1)mm

Outer diameter of paper tube

38(+/-1)mm

Sampling Size

Round:

Ø30*14mm, 12mm, 9mm; Ø32*14mm,13mm; Ø34*12mm,11mm;

Ø35* 12mm,8mm,6mm Ø37*17mm;

Oval: Ø34*40*12mm

Double Thickness:

Ø32*12*4mm etc

Paper Tube

600mm-1200mm

Deoxidant

With AL or ZR or without

Cap

iron,steel,etc

a)According to whether the deoxidant is added in sampler:

Type: Immersion molten steel sampler with deoxidant

Model:QR-KQY

Type: Immersion molten steel sampler without deoxidant

Model:QR-KQN

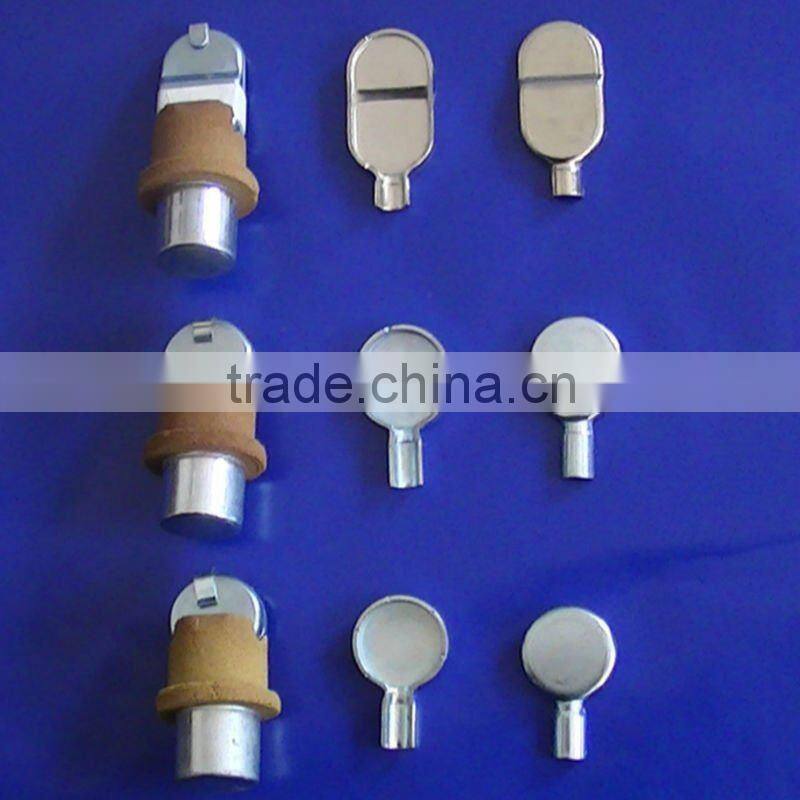

b) According to shape and size of sampler cup:

Name: Immersion molten steel sampler

Model:QR-KQY/N-301

The dimension of the sampling mould is Ø30*14mm

Model:QR-KQY/N-302

The dimension of the sampling mould is Ø30*12mm

Model:QR-KQY/N-305

The dimension of the sampling mould is Ø30*9mm

Model:QR-KQY/N-341

The dimension of the sampling mould is Ø34*11mm

Model:QR-KQY/N-342

The dimension of the sampling mould is Ø34*12mm

Model:QR-KQY/N-32

The dimension of the sampling mould is Ø32*13mm

Model:QR-KQY/N-37

The dimension of the sampling mould is Ø37*17mm

We have all kinds of shapes and sizes. Customers can choose the best ones according to the request and can also order the special sizes.

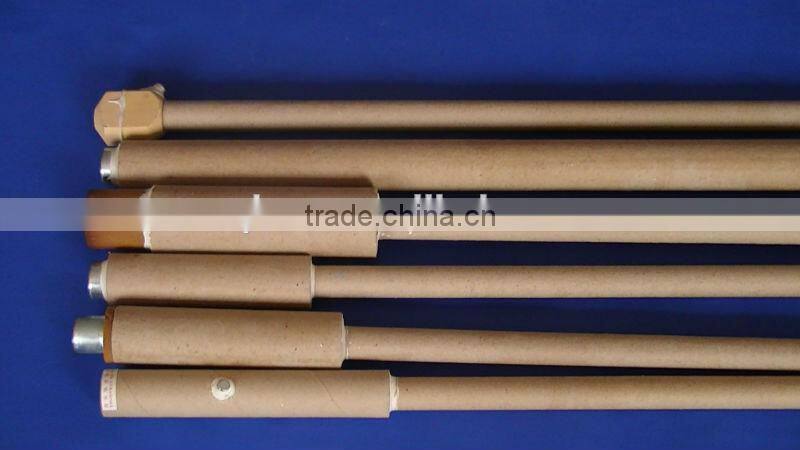

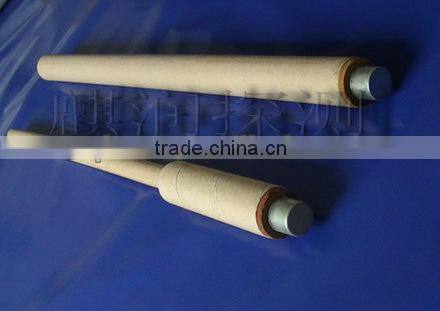

c)According to shape of paper tube:

We can also custom-made the length according to the customer’s requirements.

d)According to the different sampling method, It can be divided into immersion sampler and injection sampler
