T8 to T5 Fluorescent Lamp Adapter With Reflector UL Listed
US$ 5.1 - 7.4
/ Piece
100 Pieces(Min. Order)
- Jiangmen Shenzhen Guangzhou
- T/T Credit Card
You May Like
-
110~277v UL Listed T8 to T5 Converter, T8 to T5 Energy Saving Adapter
-
3 Years Warranty T8 to T5 Fluorescent Lamp Adapter UL Listed
-
UL Certified 110~277v T8 to T5 Lamp Adapter, T8 to T5 Retrofit Kit
-
UL Certified 110~277v Fluorescent Lamp T8 to T5 Lamp Adapter
-
110v Fluorescent Lamp T8 to T5 Lamp Adapter UL Certified
-
no Flicker Led Light Dimmer 220v,led Dimmer 220v
Product Details
| Place of Origin | Guangdong, China | Brand Name | OGJG | |
| Model Number | OG-T8/T5-28Z(UL-WV) | Principle | Other, fluorescent | |
| Shape | Straight |
Product Description

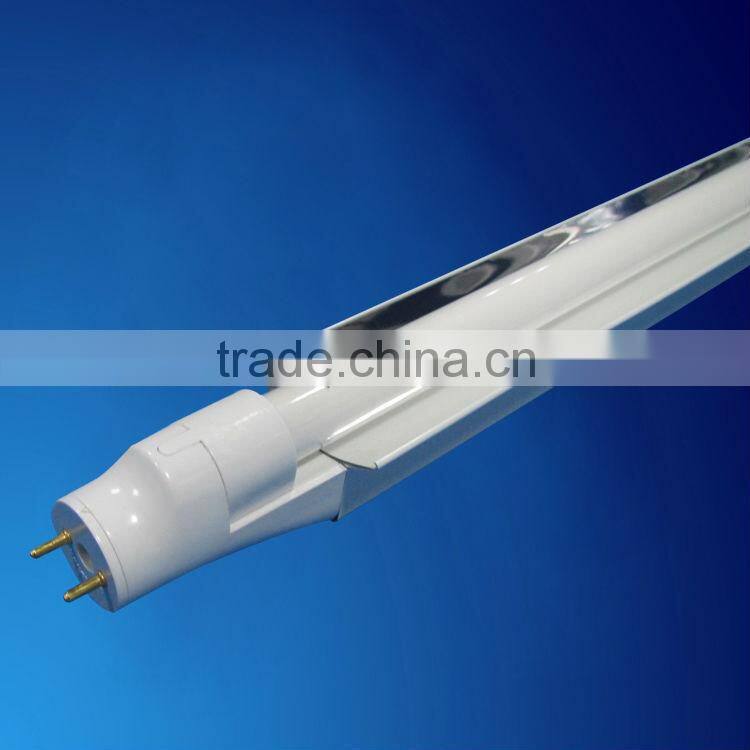

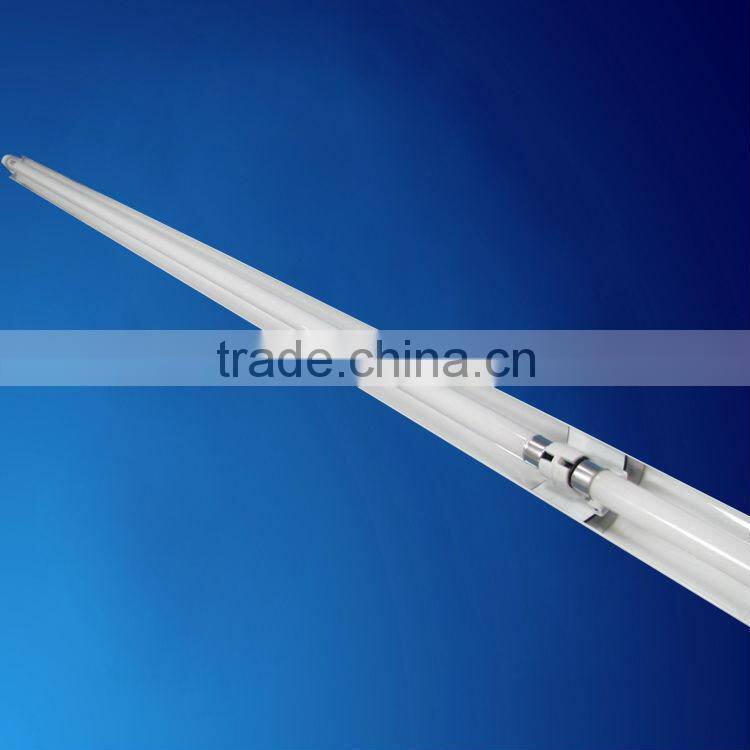

T8 to T5 fluorescent lamp adapter with reflector UL listed
1. Materials: aluminum alloy with white powder coating or shiny treatment, or flame retardant PC.
2. Electronic Feature: built-in high power factor electronic ballast, for voltage supply 110v, 240v, 277v, 110~277v optional.
3. Light source: tri-phosphor fluorescent lamp, 15000 hours lifespan, Ra≥82.
4. Efficiency:
- For retrofitting T8/T10/T12 fluorescent light fittings with magnetic ballast or electronic ballast.
- With nano mirror reflecting film, saving power up to 60%.

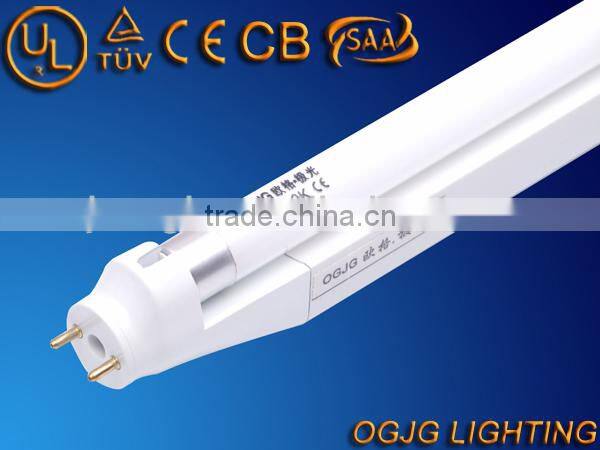

4. Certificate: UL, SAA, C-Tick, TUV-CE, TUV-CB.
5. Warranty: 3 years

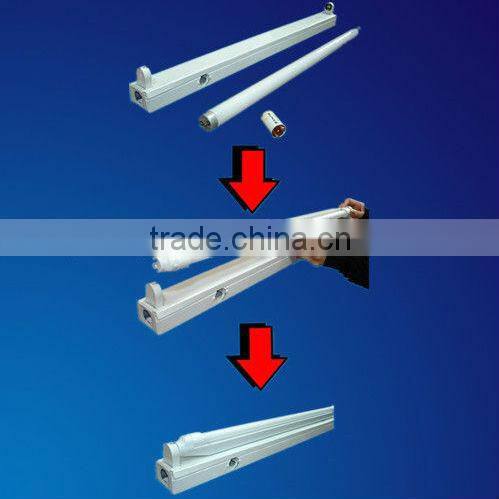

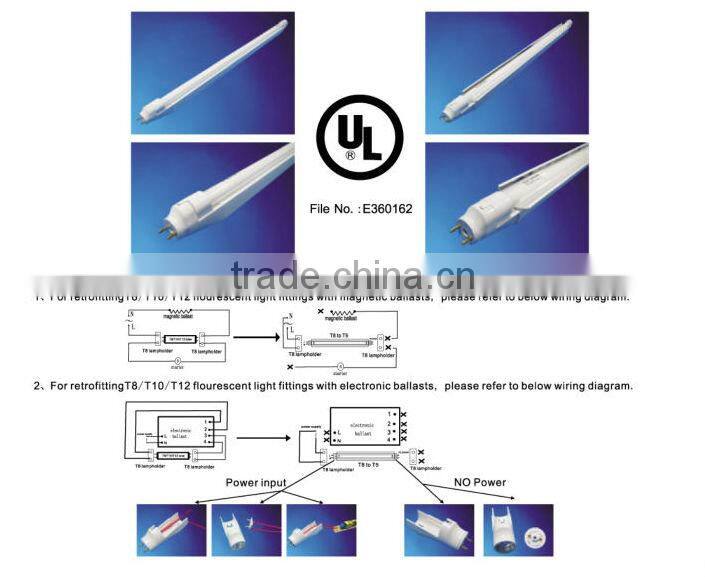

Installation instructions:
1. Remove the ballast ( electronic or magnetic) and starter.
2. If there is capacitor in the circuit, the capacitor must be removed.
3. Take off the T8/ T10 /T12 tube.
4. Connect the Live and Neutral wires to the same existing T8 lamp holders. Do not lead power supply to the other lamp holder.
5. Replace the T8 /T10/ T12 tube with this T5 adapter kit. Ensure the power side of this T5 adapter kit is connected with the power supply side of the T8 lamp holder.
Specifications:
Electronic ballast
| Power factor | THD | CF | EEI |
| ≥ 0.99 | ≤ 10% | ≤ 1.3 | A2 |
| Model | Power | Replace T8 | Fixture Dim.(mm) | Pcs./ctn. |
| OG-T8/T5-228(UL-WV) | T5 2x28w | 100w/125w | 2374x25x38 | 30 |
| OG-T8/T5-35(UL-WV) | T5 1x35w | 58w | 1514x25x38 | |
| OG-T8/T5-28(UL-WV) | T5 1x28w | 36w/40w | 1214x25x38 | |
| OG-T8/T5-21(UL-WV) | T5 1x21w | 30w | 910x25x38 | |
| OG-T8/T5-14(UL-WV) | T5 1x14w | 18w/20w | 606x25x38 | |
| OG-T8/T5-228Z(UL-WV) | T5 2x28w | 100w/125w | 2374x40x38 |
20 |
| OG-T8/T5-35Z(UL-WV) | T5 1x35w | 58w | 1514x40x38 | |
| OG-T8/T5-28Z(UL-WV) | T5 1x28w | 36w/40w | 1214x40x38 | |
| OG-T8/T5-21Z(UL-WV) | T5 1x21w | 30w | 910x40x38 | |
| OG-T8/T5-14Z(UL-WV) | T5 1x14w | 18w/20w | 606x25x38 |
