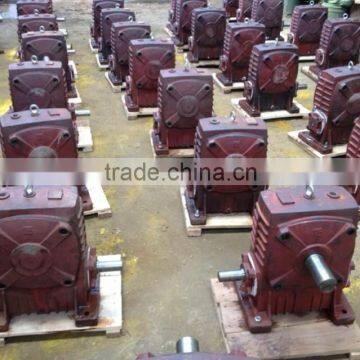

WP Series Worm Gear Reducer
US$ 25 - 300
/ Piece
1 Piece(Min. Order)
- Tianjin
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | WOSEN | |
| Model Number | WP | Gearing Arrangement | Worm | |
| Output Torque | 17-2754N.m | Rated Power | 0.12-15kw | |
| Input Speed | 5-250rpm | Output Speed | 5-250rpm |
Product Description
WP series worm gear reducer
Type: | wp gears reduction gear |
| Model: | WPA40-250 |
| Ratio: | 10,15,20,25,30,40,50,60 |
| Color: | Green,Brown |
| Material: | Housing-Casting iron-HT200# |
| Worm Gear- Cooper-10-3 # | |
| Worm-20CrMnTi with carburizing and quenching, surface hardness is 56-62HRC | |
| Shaft-chromium steel-45# | |
| Packing: | Paper Carton,Plywood box / per set(With foam board inside) |
| Bearing: | Brand "HRE" Bearing |
| Seal: | NAK Seal from TAIWAN |
| Warranty: | 1 year |
| Input Power: | 0.55kw,0.75kw,1.1kw,1.5kw,2.2kw,4kw,5.5kw,7.5kw |
| Usages: | In industrial machine: Food stuff,Ceramics,chemical, aswell as packing, printing, dyeing,woodworking, glass and plastics….. |
| IEC Flange: | 80B5,90B5,100B5,112B5,132B5.... |
| Lubricant: | Synthetic & Mineral |
