4: 1 Ratio Gearbox Hardened Gear Reducer Zdy Gearbox
US$ 750 - 3,552
/ Set
1 Set(Min. Order)
- tianjin
You May Like
-
Zdy Zly Zsy Zfy Box Reducer High Quality Made in China
-
Dby Dcy Reducer Dby Gearbox Dcy Gearbox Right Angle Cone Cylinder Gear Reducer
-
Zly Gearbox Cylindrical Gear Box Ratio Range 6.3:1 ~ 20:1
-
ZLY315-20-1 Gear Box Hardened Gear Reducer Zly Reducer
-
Reducers Zsy 224-63-1 Gear Box Hardened Gear Reducer Zsy Reducer
-
ZLY315 Gear Box Hardened Gear Reducer, Gear Case Heavy-duty Reducer
Product Details
| Place of Origin | Hebei, China | Brand Name | WOSEN/ZDY gearbox | |
| Model Number | ZDY gearbox/4: 1 ratio gearbox | Gearing Arrangement | Bevel / Miter | |
| Output Torque | 475N.m to133687N.m | Rated Power | 17KW to 5651KW | |
| Input Speed | 1500r/min | Output Speed | 375r/min |
Product Description

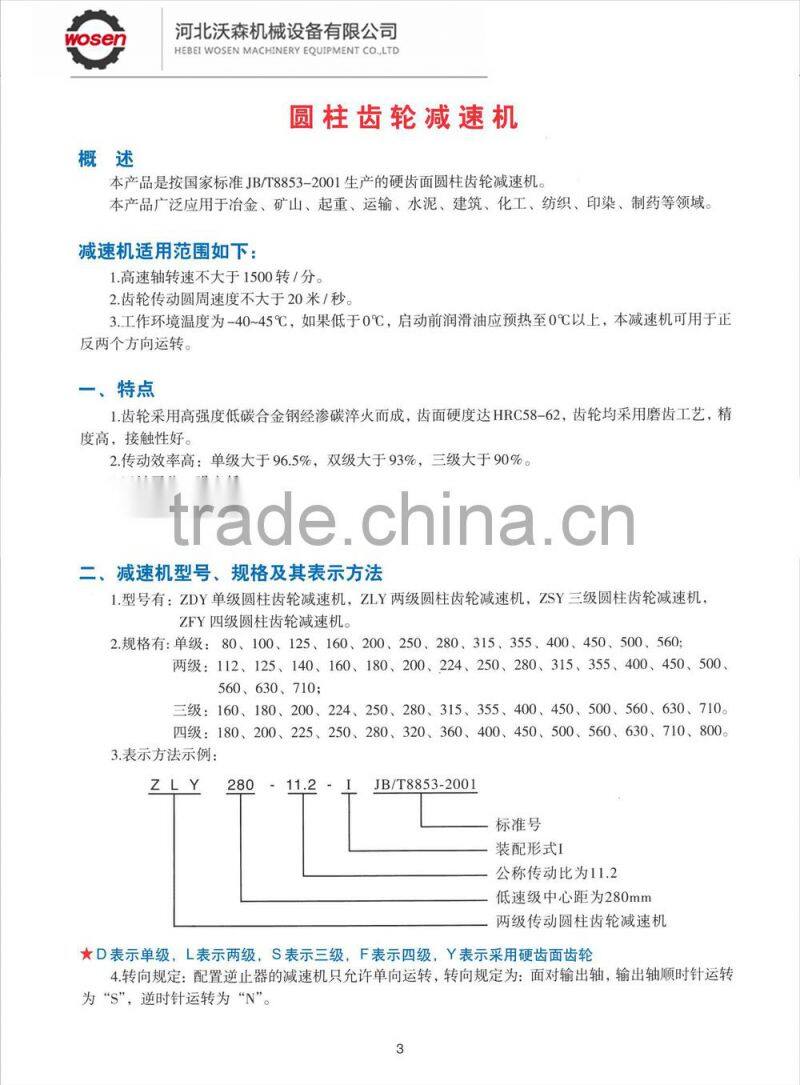

Specifications/ ZDY gearbox 4: 1 ratio gearbox
ZDY gearbox Hard tooth surface gear box/gearbox/reducer 4: 1 ratio gearbox
1. with warranty
2. design for u
3. technique support
4. OEM
ZDY gearbox Hard tooth surface gear box/gearbox/reducer/ 4: 1 ratio gearbox
Characteristics
(1)Preferential design is applied in main parmeter such as center distance and nominal drive ratio,which guarantee good interconnection between key parts and components.
(2)All gears are made of high quality alloy steel and treated with carburising and quenching ,with tooth surface hardness up to 54-62HRC
(3)Small size,light weight,high precision,large carrying capacity,high efficiency,long service life,high reliability,stable driving and low noise.
(4)Normally oil sump lubrication is used,with cooling naturally.If thermal power can not be achieved ,circular oil lubrication or fan may be used and cooled with cooling coil pipe.
Application/ ZLY reducer
(1)Input rotage speed n1 ≤ 1500r/min
(2)Gear wheel driving peripheral speed is ≤ 20m/sec
(3)Ambient temperature is -40 °C ~50 °C .If it is less than 0 °C ,lubricant should be preheated to more than 0 °C before start up.Running both forward and backward are available for this reducer.
(4)Applicable for the industries such as metallurgy,mine,chemical industry,construction materials,hoisting,transportation,textile,paper making,instrument,plastic,rubber,engineering machinery and energy industry.
