Made in China SEW F Series Parallel Agricultural Helical Gearbox

Specifications

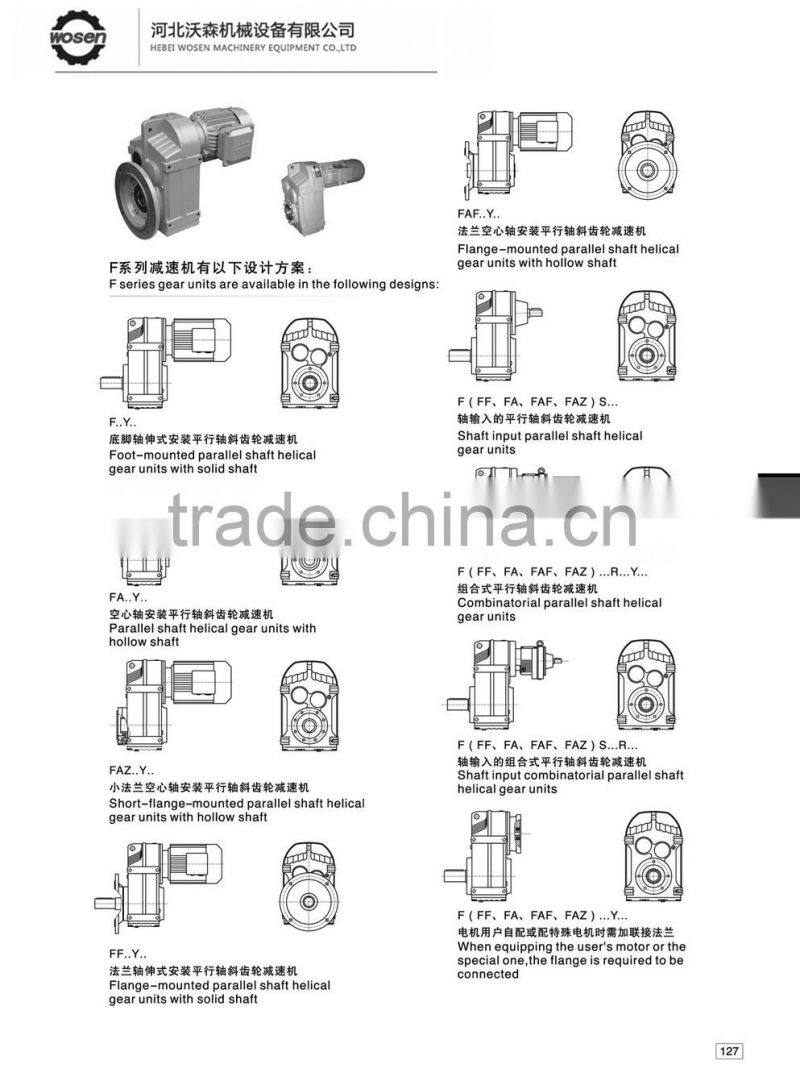

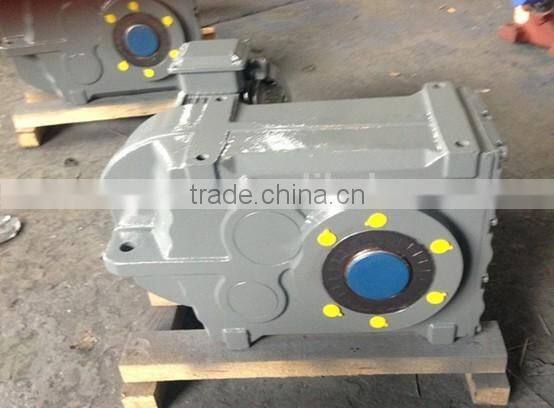

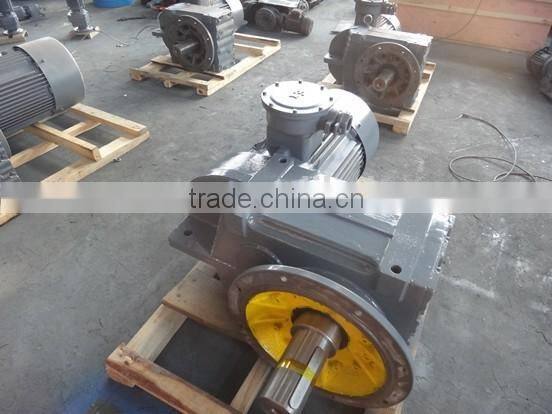

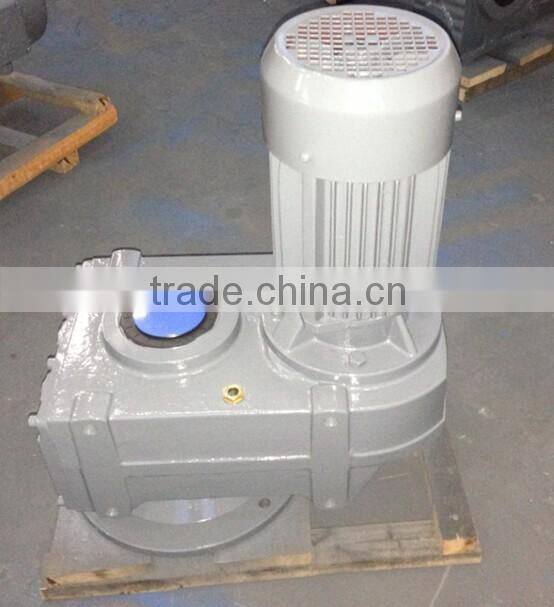

Made in China SEW F series parallel helical gearbox

The characteristics of Made in China SEW F series parallel agricultural helical gearbox

  are: The volume is small, the weight is light, the transmission torque is big, the starting steady, the low loss, the way of installment are diverse, input, output nimble and so on. Thus the gear units are quite suitable for the situation which the  space is limit. Combination with each kind of reducer the units can satisfied the dissimilar condition.

Output torque: up to 18000Nm
Output speed: 0.11~373r/min
Power of motor: 0.18~200KW

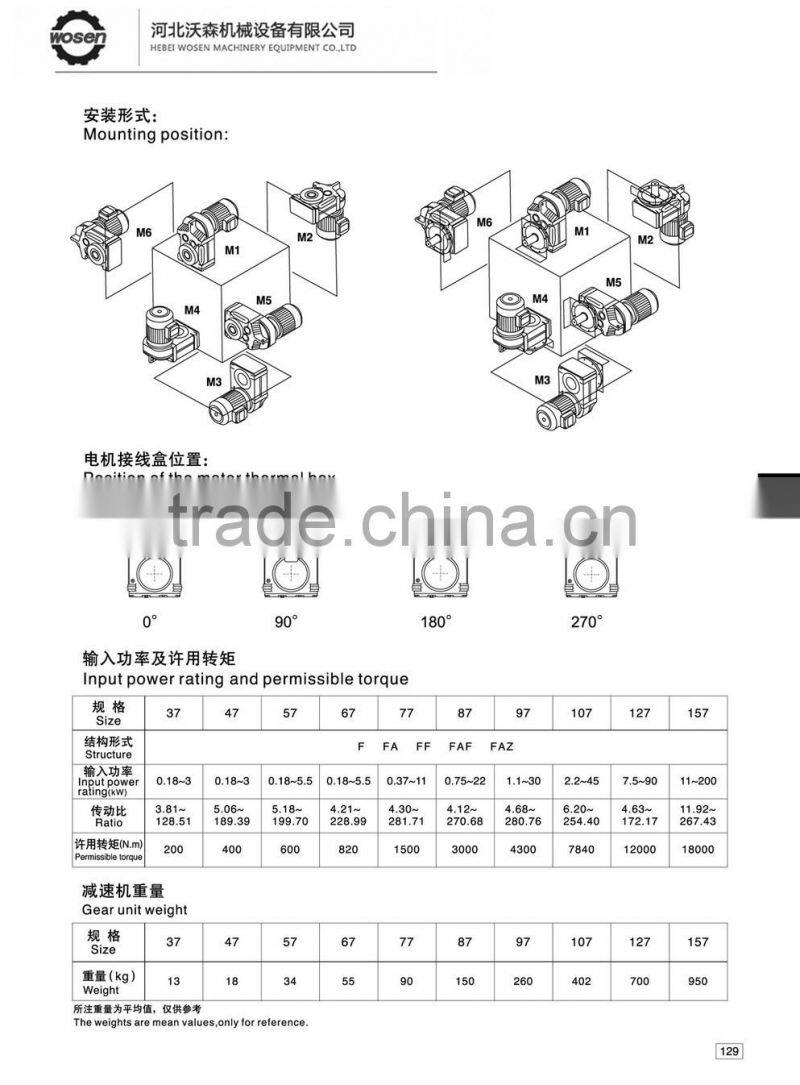

Mounting mode: foot mounting ,flange mounting ,shaft mounting

Features of products:

1.Highly Standard Modular Designed:It's easily equipped with various motor or other kinds of input power.Realizing different solutions for varied requirements is not a problem!

2.Ratio: Very big final ratios can be obtained through combined unites to reach extremenly low output speeds!

3.Munting Arrangement:No limitation to the mounting arrangement!

4.High Strength,Compact Dimension:Housings are made of high strength cast iron.Gears and shaft gears are finished with gas carburising process and precise grounding to sequentailly get high loading capacity of per certain volume!

5.Long Service Life:Main components can last as long as up to more than 25000 hours.

6.Low Noise:All key components are finished by precisely machining,accurate assembly,and finally tested,therefore farily low noise is reached!

7.High Efficiency:The efficiency of gear unit can reach 95% .The efficiency of worm gear unit can reach 89% .

8.Large radial loading ability

9.Axial load ability of up to 5% of radial load

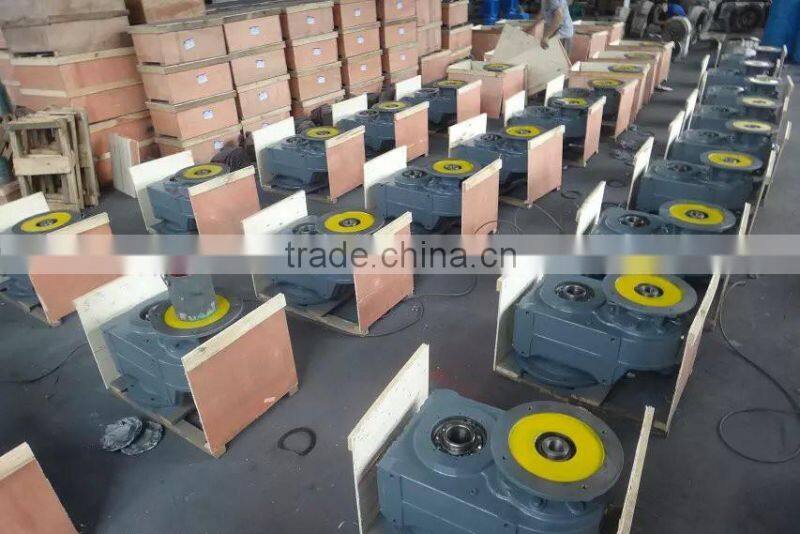

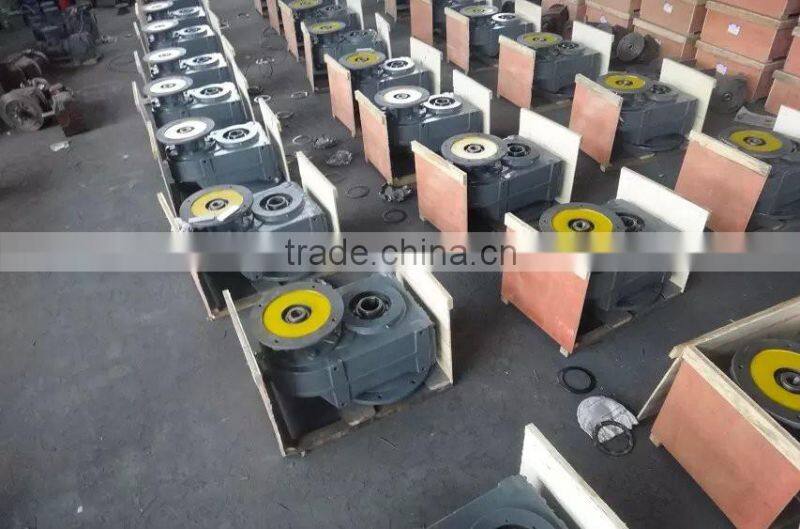

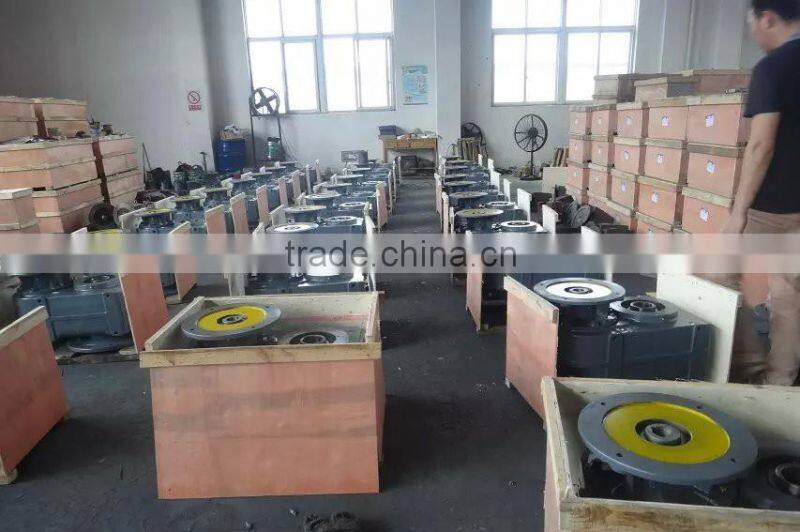

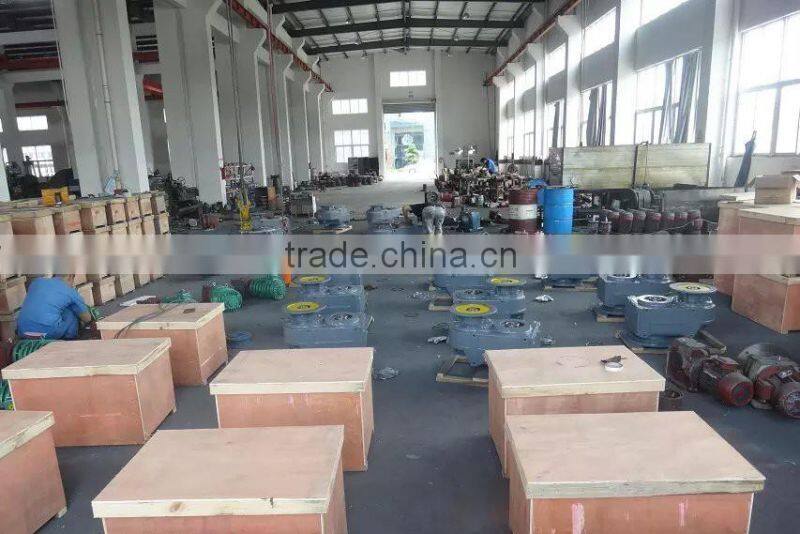

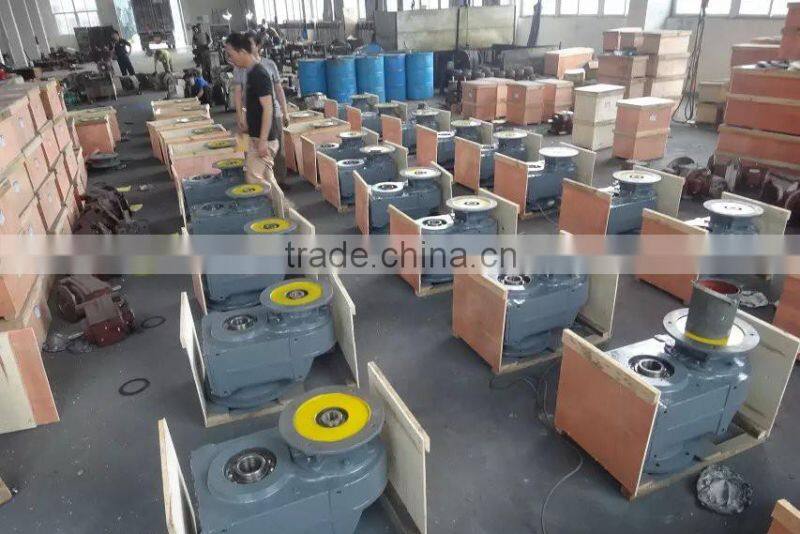

Packaging

FAQ

1. Payment Term: 30% T/T deposit and balance before delivery or 100% T/T in advance.

2. Working time: about 20 to 30 days from receipt payment.

3. We accept customized products as per your special requirement and drawings.

4. Customized brand is available. But you provide nameplates for us.

5. Guidelines for the Selection: Usually we can select one machine which is suitable for you with some information from you, such as ratio/motor speed/mounting dimension/ out torque etc.

6. If the minimum order amount is in excess of $10000, there are preferential.
