Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Anhui, China | Brand Name | JINKA | |
| Model Number | ATC-1325 | Voltage | AC380V/50Hz | |
| Power(W) | Italy HSD ES919 9.0KW | Dimension(L*W*H) | 1300*2500*250mm | |
| Weight | 2000 KGS | Certification | CE BV ROHS | |
| Warranty | 1 YEAR | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
ATC holding the 8 different engraver tools at same time, improve speed and efficiency greatly.

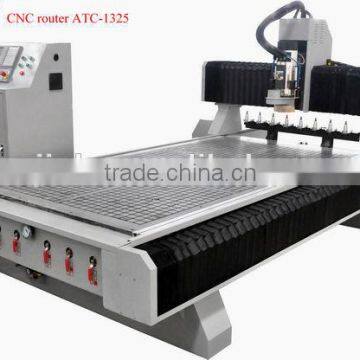

CNC Router Machine ATC-1325
1.White color
2.Working size:1300x2500x380mm
380V Chinese power line 3.Spindle: 9.0KW HSD Italy air-cooling ATC spindle
4.Delta inverter 1000w from Taiwan
5.Tool magazine capacity 8 pcs(linear type)
6.Whole set of Vaccum system(6area) with 5.5KW air pump
7.Whole set dust proof and set of dust collector 2.2KW
8.Driver and motor :Japan Yaskawa servo
x.y axis 850W ,z axis 750W with brake
9.Controlling system :
Syntec controling system EZ3 version from Taiwan
With copy parameter setting for factory reset function in CD for emergency
10.Configured with lubrication oil system, which is in favor of the user’s maintenance of machine and greatly extend rail’s lifetime 11.Equipped with Taiwan PMI linear guide
12.X,Y, gear rack ;Z ball screw
13.Polly wood package(326*216*180CM)
14.N.W.about 1400kgs G.W.about 1500kgs
TECHNICAL PARAMETERS:
Model | ATC-1325 | |
| working area | X axis | 1300mm |
| Y axis | 2500mm | |
| Z axis | 250mm | |
| Precision | X,Y,Z Traveling Positioning Accuracy | ±0.05mm |
X,Y,Z repositioning Positioning Accuracy | ±0.02mm | |
| Structure | Lathe structure | vacuum absorption into 6 areas |
| X,Y & Z axis structure | X,Y axis gear rack transmission, Z axis rolling ball screw transmission. | |
| Speed | Max. idle speed | 30000mm/min |
| Max. processing speed | 20000mm/min(X&Y axis), 15000mm/min(Z axis) | |
| Spindle | Power | Italy HSD ES919 9.0KW |
| speed | 0-24000rpm/min | |
| Tool magazine | Tool changing cycle | 7S |
| Tool holder | ISO30-ER32-70L | |
| Capacity | line type tool magazine with 8pcs(diameter of tools specified by customer) | |
| Driving motor | Panasonic AC servo system | |
| working voltage | AC380V/50Hz | |
| File Format | G-code | |
| Contol system | Taiwan Syntec control system | |
| Power of vacuum | 5.5KW | |
| Power of dust collector | 2.2KW | |
| Software | compatible withType3/Artcam/Castmate/CAXA/UG/Pro-E/Mastercam/Ucancam etc. | |
| Running circumstance | Temperature: 0°C~45°C Relative humidity: 30%~75% | |
| Waranty | 1 year | |
| Dimension | 3600*2140*2000mm | |
| Net weight | 2000kg approx. | |
| Gross weight | 2300kg approx. | |
| Application Field: | 1. Wooden door, furniture and decoration; | |
| 2. Wooden crafts making; | ||
3. Electronic:electrocircuit, insulation materials, LED screen, family appliance shell and model carving; | ||
| 4. Musical instrument; | ||
5. EVA processing: carving and hollowing of VA material packing tools, medical apparatus, electronic products, carving and hollowing-out of glassware lining,etc. | ||
Hefei Kaxing Digital Control Equipment Co., Ltd is the recognized leading manufacturer in China. Founded in 2004, we focus on the design, innovation and manufacturing of CNC products. We proudly supply our customers in Egypt, Vietnam, Thailand, India, Japan, Bulgaria, Serbia, and France with outstanding CNC routers, engraver, laser engraving machines and cutting plotter.
