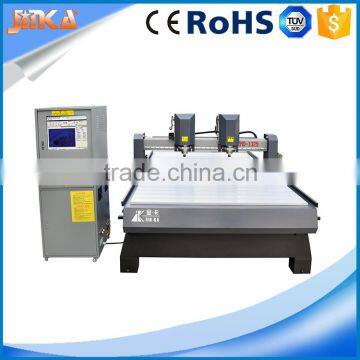

High quality multifunction double CNC router machine
- 180 Set / Sets per Month
- Shanghai port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Condition | New | CNC or Not | CNC | |
Place of Origin | Anhui, China | Brand Name | JINKA | |
Model Number | ATC-1325-T3T | Voltage | AC220V/50Hz | |
Power(W) | 5.5KW | Dimension(L*W*H) | 2140*3000*2000mm | |
Weight | 1000kg | Certification | CE ROHS | |
Warranty | 1 Year | After-sales Service Provided | No overseas service provided |
Product Description
High quality multifunction double CNC router machine
Technical Parameters
ATC-1325-T3T | |||
No. | Specification | Parameters | |
1 | Stroke | X stroke | 1300mm |
Y stroke | 2500mm | ||
Z stroke | 160mm | ||
2 | Table Dimension | X × Y | 1350mm×2550mm |
3 | Precision | Precision | 0.05mm |
Resolution | 0.02mm | ||
4 | Structre | Table Structe | 6 areas Vacuum Absorbtion |
X,Y,Z transmission | X,Y gear rack,Z ballscrew | ||
5 | Speed | Idle Speed | 40000mm/min |
Working Speed | X/Y:20000mm/min ; Z:15000mm/min | ||
6 | Spindle | Spindle Power | air-cooling:6.0KW,4.5KW,3.5Kw |
Rotary speed | 0~18000r/min | ||
7 | Feeding Height | 210mm | |
8 | Motor type | Yaskawa servo | |
9 | working voltage | AC380V/50Hz | |
10 | code | G/HPGL | |
11 | control system | Syntec | |
12 | Absorption Power | 5.5KW | |
13 | Dust colleting power | 2.2KW | |
14 | Overall Dimension | 3000mm×2140mm×2000mm | |
15 | Net Weight | ≈2500kg | |
16 | Gross Weight | ≈2800kg |
Feature
1.Stable structure:Adopting heavy type all steel structure welded body features rigidity and non deformation.
2.Excellent components:Taiwan Syntec control system;
3.Italian HSD spindle; High precision ceramic spindle bearing features low noise and long life span;
4.Imported linear square rail, rolling ball screw ensures heavy loading and accurate positioning; Panasonic ACservo system contribute to large torque and outstanding safety system.
5.Line type automatic tool changing system;
Capacity of tool magazine can be eight PCS of tools (different diameters of tools are available)
6.Adopting powerful vacuum adsorption system divided into six independent zone.
7.Compatible software such as Type3/Artcam/CAXA/UG/PROE/Mastercam/Ucancam, etc.
Hefei Kaxing Digital Control Equipment Co.,Ltd is a high-tech industry enterprise intergrating research,development,manufacturing,sale and after-sales service.We are able to offer preminum quality products an affordable price because we are a factory direct manufacture may offer similar products.We pride our-selves in not only our professional;and strict product line but also incredible custmer service & technical support.
1,There being a core manufacture specialized in Vinyl Cutter and CNC Router for more than 10 years;
2,CE,RoHS,,ECM,STQ certificated;
3,Strictly checking and controlling quality;
4,More than 60 distributors in domestic and international market;
5,Short delivery time(7~20 days);
6,The Core Competitiveness of product price;
7,Professional sale and aftersales
8,replying your any inquiry within 24 hours
We hope to build a deep and long-term cooperation with you as your any needs.
1.How could I get more informations from you?
You could send email,fax or phone us,told us what informations you want(such as air/sea freight,prices and so on),we will reply you in time,then you will know better about our CNC machine and service.
2.Why we have to buy cutting plotter from you?
We are one of the largest and best manufacture of CNC machine in China. We have many year's experience in producing CNC machine equipments,the quality and prices of our machines/materials are superior to others.
And we have specialized marketing group and technical team, we could provide the best service,advice to you.
3.How can I receive your goods?
If you order little quantities(below 100KG)you could use DHL,TNT,UPS or other air express company to delivery your goods,delivery time usually 3-4 working days,they will send the products to your address.
If you order large quantities,you could use sea delivery,and you need to go to your nearest seaport to take your goods,delivery time usually 30-40days.For more details,please contact with us.
4.Way of payment.
We accept the T/T,Western Union,paypal. When we receive your payment,we will prepare your goods and send to you in time. If you order large quantities,you could pay 30% deposit to us,when all the goods ready,we will take photos for you to check it.For more details,please contact with us.
5.How become your sole agent?
When you reach our request quantities,you could become our CNC machine sole agent in your country.
For more details, please contact with us.
