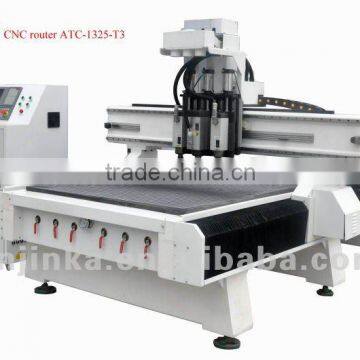

atc cnc router ATC-1325-T3

FOB Price

USD $2,000 - $8,000 / Set

1 Set(Min.Order)

Supply Ability 2 Set / Sets per Month
Port Shanghai/nanjing
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	CNC
Place of Origin	Anhui, China	Model Number	ATC-1325-T3
Voltage	220V/380V	Power(W)	4.5KW
Dimension(LWH)	13002500200	Weight	900KGS
Certification	BV,ISO,CE,ROHS	Warranty	1YEAR
After-sales Service Provided	Overseas third-party support available

Product Description

Specifications

atc cnc router ATC-1325-T3
It can process cutting, hollowing-out without changing the tool with higher precision and efficiency

atc cnc router ATC-1325-T3

Features:

ATC 3 process engraving machine has the higher precision and efficiency to process complicated pictures, crafts by holding the 3 engraver tools which can process the cutting, hollowing-out etc. 3 different working procedure without changing the tools.

Technical Parameter:

ATC-1325-T3
Specification		Parameter
working area	X axis	1300mm
	Y axis	2500mm
	Z axis	160mm
Precision	X,Y,Z Traveling Positioning Accuracy	±0.05mm
	X,Y,Z repositioning Positioning Accuracy	±0.02mm
Structure	Lathe structure	vacuum absorption into 6 areas
	X,Y & Z axis structure	X,Y axis gear rack, Z axis rolling ball screw transmission.
Speed	Max. idle speed	40000/min
	Max. processing speed	20000mm/min(X&Y axis), 15000mm/min(Z axis)
Spindle	Power	3KW, 4.5KW, 6KW(it's specified by customer)
	speed	0-18000rpm/min
Feeding height		210mm
Driving motor		Yashawa AC servo system
working voltage		AC380V/50Hz
File Format		G-code
Contol system		Taiwan Syntec and NC Studio control system
Power of vacuum		5.5KW
Power of dust collector		2.2KW
Software		compatible withType3/Artcam/Castmate/CAXA/UG/Pro-E/Mastercam/Ucancam etc.
Running circumstance		Temperature: 0°C~45°C Relative humidity: 30%~75%
Waranty		1 year
Dimension		360021402000mm
Net weight		2500kg
Gross weight		2800kg

Application Field:

1. Wooden door, furniture and decoration;

2. Wooden crafts making;

3. Electronic:electrocircuit, insulation materials, LED screen, family appliance shell and model carving;

4. Musical instrument;

5. EVA processing: carving and hollowing of VA material packing tools, medical apparatus, electronic products, carving and hollowing-out of glassware lining,etc.
