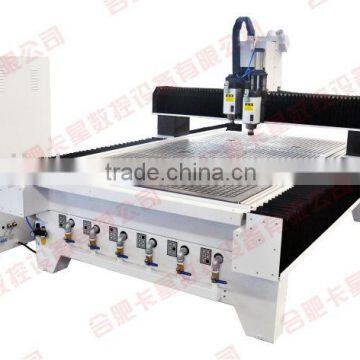

Dual-process High Quality Automatic Tool Change CNC Router ATC-1325C-T2
- 15 Set / Sets per Month
- Nanjing or Shanghai
- D/P D/A Credit Card
You May Like
-
atc cnc router ATC-1325-T3
-
CNC Woodworking processing Center ATC-1325-T3T
-
CNC ROUTER MACHINE ATC-1325/1300*2500*380mm/JINKA/automatic tool change/woodworking machine/engraver/router/8 tooles CNC router
-
ATC Machine 3 heads automatic tool change JINKA CNC ROUTER MACHINE china cnc router machine
-
Three Procedures Series Automatic CNC Router Machine
-
High Quality JINKA cnc router 3 Heads CNC ROUTER CNC woodworking machine
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Anhui, China | Brand Name | JINKA | |
| Model Number | ATC-1325C-T2 | Voltage | 380V | |
| Power(W) | 6KW | Dimension(L*W*H) | 3460*2307*1840 | |
| Weight | 1150 | Warranty | 1 YEAR | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Technical data
ATC-1325C-T2 | |||
No. | Technical data | ||
1 | Stroke | X axis | 1300mm |
Y axis | 2500mm | ||
Z axis | 160mm | ||
2 | Table size | Width & length | 1350mm×2550mm |
3 | Accuracy | Positioning accuracy | 0.05mm |
Repeatability | 0.02mm | ||
4 | Structure | Table | 6-zone vacuum hold down table |
X, Y, Z drives | X & Y axis: rack & pinion drive,Z axis: ball screw drive | ||
5 | Speed | Max. traverse speed | 18000mm/min |
Max. processing speed | X/Y axis:12000mm/min ; Z axis:10000mm/min | ||
6 | Spindle motor | Spindle power | Air cooling:6.0KW, 4.5KW, 3.5KW(water cooling available) |
Rotary speed | 0~18000r/min | ||
7 | Feeding height | 200mm | |
8 | Drive motor | Stepper or Servo motor | |
9 | Working voltage | AC380V/50Hz | |
10 | Command set | G-code/HPGL | |
11 | Control system | NC studio / DSP controller | |
12 | Vacuum pump | 380V 7.5KW rotary vane air pump | |
13 | Dust collection system | 380V 2.2KW | |
14 | External dimensions | 3300mm×2200mm×1600mm | |
15 | Net weight | ≈1200kg | |
16 | Gross weight | ≈1500kg | |
Features
-Employing imported linear square rails and bearings features heavy loading, high performance, high precision, long life span and accurate positioning.
-This machine adopts steel structure featuring good rigidity, heavy loading and non-deformation.
-Constant power spindle allows large toque and high efficiency.
- Compatible with any advanced software such as Type3/Artcam/CAXA/UG/PRO-E/Mastercam/Ucancam, to name afew.
-Life span of engraving tool is prolonged by adopting bidirectional cooling system.
-Unique data backup function allows continuing processing after tool breakage, power failure or interruption of the program.
-Reasonable price, Easy operation, High productivity.
Applicable Materials
Marble, Granite, Blue Stone, Jade, Crystal, Tomb Stone, Agate, Porcelain ,Glass, Plastic, Chemical Synthetic Board, Bamboo, Wood, Stainless Steel, Iron, Copper, Aluminum, Titanium Alloy.
Options
Dual independent Z axis
Imported high power brushless AC servo motor
NK200 CNC system
Industrial Chiller
Hefei Kaxing Digital Control Equipment Co., Ltd is the recognized leading manufacturer in China. Founded in 2004, we focus on the design, innovation and manufacturing of CNC products. We proudly supply our customers in Egypt, Vietnam, Thailand, India, Japan, Bulgaria, Serbia, and France with outstanding CNC routers, engraver, laser engraving machines and cutting plotter.
