Home > Products > Road Machinery > XG6181 Full Hydraulic Drive Single Drum Vibratory Roller

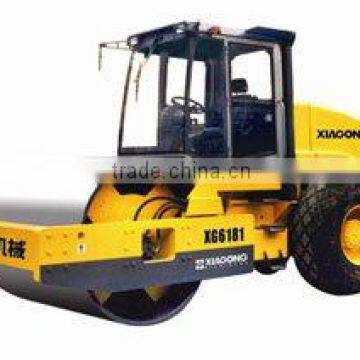

XG6181 Full Hydraulic Drive Single Drum Vibratory Roller
- SHANGHAI
- T/T
You May Like
Product Details
| Condition | New | Brand Name | XGMA | |
| Model Number | XG6181 | Place of Origin | Fujian, China |
Product Description
Specifications
Adopt supercharged diesel engine with larger power reserve, which is applicable to the high altitude working environment.
Product feature
Equipped with the Dongfeng Cummins turbocharged diesel engine, featuring the reliable performance, environment friendly and energy-saving.
·Reasonable power selection, predominant overall performance, and outstanding operation efficiency.
·Hydraulic driving pump and motor are SAUER or REXROTH products,vibrating pump and motor are PERMCO or HERCULER products. vibratory bearing imported from Sweden SKF or Germany FAG products.
·Its two amplitudes accommodate to various working conditions, with the front/rear drive and the continuous travel speed control.
·The cabin features the sound insulation, thermal insulation, vibration reduction, with comfort, large space, and wide vision.
·Safe and reliable three-stage braking system .
Pad-foot drum and air-conditioner are optional to the customer's needs.
There series product are hydrostatic transmission double drive vibratory road roller. They are suitable for the compacting operation of road, railway, airport, dam and various earthwork foundations
Technical parameter:
Description | Unit | XG6181 | |
Operating Weight | kg | 18000 | |
Static Linear Load of Drum | N/cm | 497 | |
Vibration Frequency | Hz | 28 | |
Theoretical Amplitude | mm | 1.8/0.9 | |
Centrifugal Force | kN | 330/197 | |
Drum Weight | kg | 10800 | |
Min. Turning Radius | mm | 6500 | |
Max. Gradeability | % | 35 | |
Drum (D×W) | mm | φ1550×2130 | |
Min. Ground Clearance | mm | 355 | |
Overall Dimensions (L×W×H) | mm | 6115×2375×3185 | |
Travel speed | Gear I | km/h | 0-4.5 |
Gear II | km/h | 0-6.9 | |
Gear III | km/h | 0-10.3 | |
Engine | Model |
| Shangchai D6114 |
Rated Power | kW | 140 | |
Rated Speed | r/min | 2200 | |
