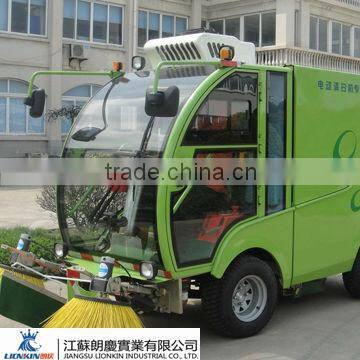

TY16DDQS Electric Road Sweeper
- 50 Set / Sets per Month
- SHANGHAI
- T/T
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | TIANYI | |
| Model Number | TY16DDQS | Type | Refuse Collector |
Product Description
Specifications
Combined with sweeping, wet dust, hydraulic tipping discharge, all-hydraulic-driven operation, and driving way street cleaningNo. | Item | Data |
1 | Power type | battery-powered |
2 | Overall dimensions L×W×H(mm) | 3800×1280×2100 |
3 | Wheel space (mm) | 1665 |
4 | Wheel base( front/rear) (mm) | 1052/1085 |
5 | Minimum turning diameter (mm) | 9000 |
6 | Minimum ground clearance (mm) | 180 |
7 | Gradeability( %) | ≤20 |
8 | Curb mass (Kg) | 1800 |
9 | Total mass (Kg) | 2300 |
10 | Sweeping ability (m2/h) | 10800 |
11 | Sweeping width(mm) | 1800 |
12 | Middle brush width(mm) | 840 |
13 | Single brush width(mm) | 800 |
14 | Garbage bin volume (L) | 450 |
15 | Water tank volume (L) | 70 |
16 | Drive motor(KW) | 4 |
17 | Battery voltage(V) | 48 |
18 | Battery capacity(Ah) | 360 |
19 | Charging time(H) | 5-6 |
20 | Max. operating time(H) | 12 |
21 | Operating time with conditioner under way (H) | 8 |
22 | Max. speed (Km/h) | 20 |
23 | Noise at max. speed dB(A) | ≤55 |
24 | No. of seats | 1 |
