Home > Products > Road Machinery > XG6101D Double drum vibratory roller

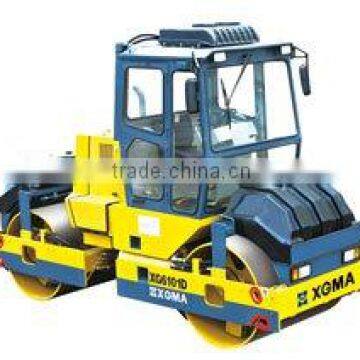

XG6101D Double drum vibratory roller
- SHANGHAI
- T/T
You May Like
Product Details
| Condition | New | Brand Name | XGMA | |
| Model Number | XG6101D | Place of Origin | Fujian, China |
Product Description
Specifications
Adopt supercharged diesel engine with larger power reserve, which is applicable to the high altitude working environment.
Product feature:
Equipped with the Dongfeng-Cummins diesel engine, with the stable performance.
·The drive, vibration and steering mechanisms are hydrostatically operated.
·Hydraulic system as pump, motors are SAUER or REXROTH products, vibratory bearing imported from Sweden SKF or Germany FAG products.
·Two amplitudes and three frequencies. Vibration on both or single drum.
·Automatic vibration and water-spraying.
·Equipped with the easy-to-operate towing unit.
·Protection mechanism from mis-operation.
·Imported pumps, motors, vibration valves and vibration bearing.
·Compact structure, beautiful shape, and easy operation.
·Safe and reliable three-stage braking system.
·Large and comfort cabin with air-conditioner.
Applied area:
There series product are tandem-drum vibratory road roller. They are suitable for compacting the asphalt road surface, and also for the compacting operation of road surface and filler materials.
Technical parameter :
Description | Unit | XG6101D |
Operating Weight | kg | 10000 |
Drum (D×W) | mm | Φ1215×1660 |
Drum weight | kg | 5000/5000 |
Min. Turning Radius | mm | 5850 |
Max. Gradeability | % | 30 |
Vibration Frequency | Hz | 30;35;47 |
Theoretical Amplitude | mm | 0.4/0.83 |
Centrifugal Force | KN | 25/123 |
Engine (Cummins) |
| 6BT5.9 |
1 gear | km/h | 0-9.7 |
Engine rated Power | kW | 92 |
Engine rated Speed | r/min | 2400 |
Overall Dimensions (L×W×H) | mm | 4990×1810×3270 |
