Home > Products > Road Machinery > XG6301P Tire roller

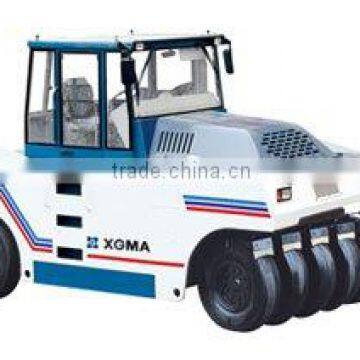

XG6301P Tire roller
- SHANGHAI
- T/T
You May Like
Product Details
| Condition | New | Brand Name | XGMA | |
| Model Number | XG6301P | Place of Origin | Fujian, China |
Product Description
Specifications
Adopt supercharged diesel engine with larger power reserve, which is applicable to the high altitude working environment.
Product feature:
Equipped with the Dongfeng Cummins 6BT5.9 turbocharged diesel engine, featuring the reliable performance, environment friendly and energy-saving.
·Special pneumatic tyres are used to compact the layer. Uniform and dense surface is available with the kneading and compacting force of the tyres.
·It can adjust the working mass and the air pressure of the inflated tyres to change its compacting performance so as to expand the scope of its application.
·The front wheel equips with the wabbler mechanism, which ensures uniform contact with the ground.
·As the hydraulic pipes, joints and instruments of internationally renowned brands are used, the overall performance of the machine is stable and reliable.
·The driving is opened by combination of the drive shaft and the counter shaft. The steering, speed change and reversing can all be done by combination of the drive shaft and counter shaft.
·The power gearshift transmission box in use can make the operation flexible, convenient and reliable.
·Large and comfort cabin with air-conditioner.
Applied area:
XG6262P,XG6301Ptyre road roller are a kind of static action road roller and are applicable to compact the high grade asphalt road surface, mixed earth, macadam layer and roadbed.
Technical parameter :
Description | Unit | XG6301P | |
Max. Operating Weight | kg | 29500 | |
Weight of Counterweighted Water | kg | 3800 | |
Weight of Counterweighted Iron | kg | 4500 | |
Min. Operating Weight | kg | 17700 | |
Compaction Width | mm | 2750 | |
Min. Turning Radius | mm | 9000 | |
Gradeability | % | 20 | |
Ground Specific Pressure | KPa | 200-360 | |
Wheelbase | mm | 3836 | |
Travel Speed | Gear I | km/h | 3.5 (Forward or Reverse) |
Gear II | km/h | 7.0 (Forward or Reverse) | |
Gear III | km/h | 16.5(Forward) | |
Overall Dimensions (L×W×H) | mm | 4906 ×2800 × 3430 | |
Engine | Model |
| Cummins 6BT5.9 |
Speed | rpm | 2100 | |
Power | kw | 128 | |
