Home > Products > Road Machinery > KP305 Fully Hydraulic Tyre Roller

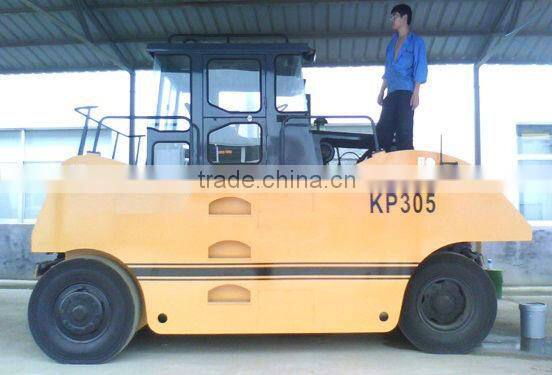

KP305 Fully Hydraulic Tyre Roller
- QINGDAO
- T/T
You May Like
Product Details
| Condition | New | Type | Single Drum Roller | |
| Place of Origin | Shandong, China | Brand Name | LIONKIN-KOTAI | |
| Model Number | KP305 | Dimension(L*W*H) | 5060X2845X3480 mm | |
| Weight | 20000/30000 kg |
Product Description
Specifications
The roller's weight and ground pressure can be adjusted by adding or subtracting the weight and changing the tyre's pressure.Main Features
A.The DEUTZ engine is of great power.
B.Sauer hydraulic driving system makes the infinitely variable speed come true and enhances the compaction quality, which can well meet the needs of construction.
C.The roller's weight and ground pressure can be adjusted by adding or subtracting the weight and changing the tyre's pressure.
D.The tyre-surface sprinkling system is multi-level and safe.
E.Use air-assist hydraulic braking, fully hydraulic braking and dry braking
F.The cab with air conditioner, double operations and seat can bring the comfortable working environment.
G.The stream line configuration and upturning engine housing are beautiful.
H.Maintenance-free battery cell facilitates the maintenance.
Model | Unit | KP305 |
Working mass(small/big) | kg | 20000/30000 |
Ground pressure | kPa | 260-480 |
Compacting width | mm | 2750 |
I speed | km/h | 0-7 |
II speed | km/h | 0-14 |
Grade ability | % | 20 |
Turing radius | mm | 9000 |
Swing distance of front roller | mm | ±45 |
Overlapping of front & rear tyre | mm | 50 |
Min. ground clearance | mm | 290 |
Engine | - | DEUTZ |
Engine power | kW | 110 |
Tires pattern(smooth) | - | 11.00-20 |
Number of tires(front/rear) | - | 5/6 |
Length | mm | 5060 |
Width | mm | 2845 |
Height | mm | 3480 |
Note: According to the continuous improvement of our product's technology, please illustrate that listing parameter and structure's character are different from objects when ordering products.
