Home > Products > Road Machinery > KD125 Fully Hydraulic Double Drum Vibration Roller

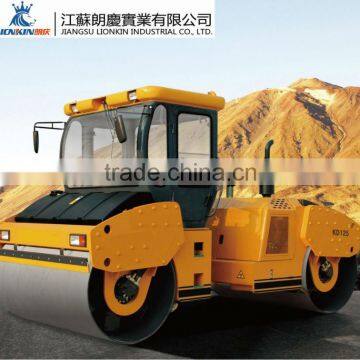

KD125 Fully Hydraulic Double Drum Vibration Roller
- 50 Set / Sets per Month
- QINGDAO
- T/T
You May Like
Product Details
| Condition | New | Type | Single Drum Roller | |
| Place of Origin | Shandong, China | Brand Name | LIONKIN-KOTAI | |
| Model Number | KD125 | Dimension(L*W*H) | 4920X2300X3200 | |
| Weight | 12000 KG |
Product Description
Specifications
Hydraulic vibration with large centrifugal force resultsthe high-density compaction;
Main Features
A.SAUER Driving System and Vibrating system brings the stability and reliability.
B.The FAG vibration bearings, EATON hose connectors and “three preventions” electric plug.
C.All-drums walking is driven by hydraulic motor, and the CVT facilitates the operation.
D.Using double frequencies, double amplitudes, imported plunger pumps and motors
E.The articulated steering and special crab-walking structure makes it flexible.
The inner wet multi disc brake and unpowered fuel-cut braking are reliable.
F.The overall moulding is beautiful with the streamline design, and the preinstallation control board can give the broad horizon.
G.The flow of water can be controlled by the electric-control sprinkling system.
Model | Unit | KD125 |
Working mass | kg | 12000 |
Static linear load(front/rear) | N/cm | 276/276 |
Amplitude | mm | 0.43/0.86 |
Vibrating frequency | Hz | 30-45 |
Centrifugal force | kN | 75×2/150×2 |
Mar. walking speed | km/h | 12 |
Grade ability | % | 30 |
Turning radius | mm | 6000 |
Width of vibration drum | mm | 2130 |
Drum diameter | mm | 1250 |
Max. steering angle | - | ±40° |
Min. ground clearance | mm | 440 |
Engine | - | Cummins |
Power | kW | 97 |
Crab-walking distance | mm | ±150 |
Crab-walking angle | - | ±20° |
Max. swing angle | - | ±12° |
Fuel tank capacity | L | 200 |
Water tank capacity | L | 500×2 |
External dimension(L×W×H) | mm | 4920×2300×3200 |
Note: According to the continuous improvement of our product's technology, please illustrate that listing parameter and structure's character are different from objects when ordering products.
