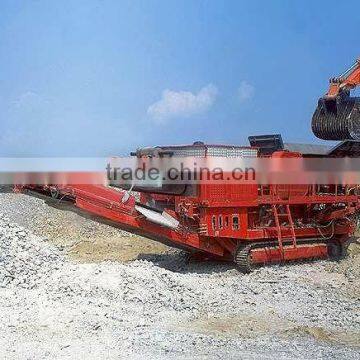

200-250 t/h tracked and hydraulic mobile crushing station

Name

Technical parameter

vibrating feeder  GZD960x3800

1 set

jaw crusher  PE750x1060

1 set

main belt conveyor  B1000x10m

1 set

discharge height of main belt conveyor

2800mm

side belt conveyor  B650x4m

1 set

discharge height of side belt conveyor

2900mm

engine power

220KW

transport length

14000mm

ransport width

3180mm

transport height

4500mm

transport weight

56 t

Name

Technical parameter

cone crusher  HPC220

1 set

vibrating feeder of belt type

GLD1500/5

capacity of upper feeding hopper

5 m³

height of feeding material

2900 mm

B1000x9m

1 set

discharge height of main belt conveyor

2800 mm

engine power

400 KW

transport length

12500 mm

transport width

3050 mm

transport height

3900 mm

transport weight

54 t

Name

Technical parameter

vibrating screen  3YZS2160

1 set

capacity of collecting hopper

8 m³

height of collecting hopper

5000 mm

belt conveyor of feeding material   B1000X8.5 m

1 set

belt conveyor under vibrating screen  B1000X8 m

1 set

discharge height of belt conveyor under vibrating screen

3500mm

side belt conveyor  B650X5 m

1 set

discharge height of side belt conveyor

3500 mm

belt conveyor in front  B800X8 m

1 set

discharge height of belt conveyor in front

3000 mm

engine power

180 KW

transport length

14000 mm

transport width

3400 mm

ransport height

4100 mm

transport weight

38 t

Model

Feed Chute Size (L×W) (mm)

Max. Feed

Size (mm)

Capacity
(t/h)

Power
(Kw)

Weight
(Kg)

Overall dimensions
(L×W×H) (mm)

GZD960×3800

3800x960

500

120-210

11

3980

3880×2240×1880

Model

Max. Feed
Size (mm)

Discharge Size (mm)

Capacity
(t/h)

Power (Kw)

Weight

(t)

Overall Dimensions

(mm)

PE750×1060

630

80-140

80-180

110

29

2620×2302×3110

Model

Screen Size (LxW) (mm)

Layers

Screen Mesh (mm)

Max. Feed Size (mm)

Capacity (t/h)

Power (Kw)

Vibrating Frequency (r/min)

Double Amplitude (mm)

3YZS2160

6000×2100

3

3-100

400

81-720

30

700-900

5-9
