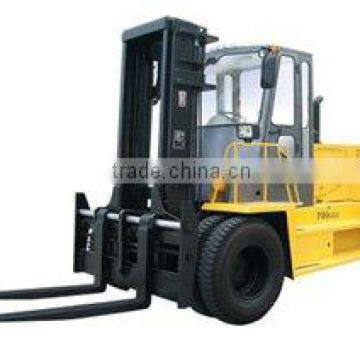

CPCD150 Forklift Truck

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port SHANGHAI
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Fujian, China
Brand Name	XGMA	Model Number	CPCD150
Type	Powered Pallet Truck	Power Souce	Diesel Engine
Rated Loading Capacity	15000KG	Max. Lifting Height	3500MM
Min. Lifting Height	250MM	Fork Length	1800mm
Fork Width	180mm	Overall Dimensions	6090X2280X3050

Product Description

Specifications

CPCD140,CPCD150,CPCD160 internal combusion counter balanced forklift truck. Eqiupped with powerful diesel engine

CPCD140,CPCD150,CPCD160 internal combusion counter balanced forklift truck. Eqiupped with powerful diesel engine, the truck offers a good power-performance. Hydrodynamic transmission,driving axle, planetary rim reducer, service/parking braking brakes, etc, are in common with ZL40 and ZL50 wheel loaders. It offers an excellent tractive performance and a matched performance, realizes stepless shift and soft transfer, reduces vibration, realizes quick and light steering, reduces the driver’s fatigue. The integrated chassis is durable. The spacious cabin and the wide view mast offer a clear vision and increase the operational efficiency. It can substitute the imported trucks of the same tonnage. These trucks are widely applied at airports, harbors, docks, stations, warehouses, and factories for loading/unloading, stacking and transporting at short distance.

echnical parameter:

Type		Unit	CPCD150
Rated capacity		kg	15000
Dead weight		kg	20000
Standard Fork: L×W×H		mm	1800×180×90
Min. Turning radius		mm	5800
Overall dimensions: L×B×H		mm	7360×2750×3600
Max. Travel speed		Km/h	10-30/12.5
Gradeability (Full load)		%	20
Load center distance		mm	600
Tilt angle of mast (F/B)		°	6°/12°
Lifting speeds with load		mm	300
Max lifting height		mm	3500
Free lifting height		mm	180
Min. ground clearance		mm	250
Track (F/R)		mm	2060/2330
Wheelbase		mm	3800
Tyre	Front		4×12.00-20-18PR
Tyre	Rear		2×12.00-20-16PR
Engine	Type		Shangchai D6114ZG9B
	Rated power/ speed	Kw/r.p.m	125/2200
	Max. torque/Speed	N.m/r.p.m	650/1400
