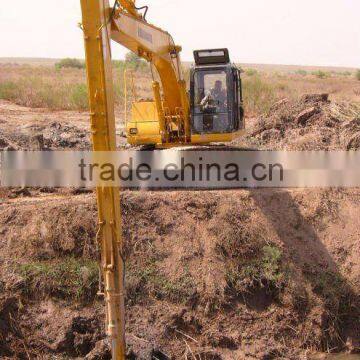

ZE230LC - 15 m Long Boom Hydraulic Excavator

Model

ZE230LC ­-15 m

Engine

Model

Cummins 6BTA5.9-C173

Type

4-cycle, water-cooled column, direct injection, turbo-charge

Number of cylinders-bore*stroke

6—Φ102×120mm

Piston displacement

5.88L

Rated power

125kw (167Hp)

Rated speed

2000r/min

Maximum torque

651N.m(1500r/min)

Starting mode

Electric starting

Starting motor

24V,7.5kw

Generator

25A

Storage battery

24V(12V×2)—150AH×2

Drive and Brake

Travel mechanism

Hydraulic motor drive full hydraulic travel mechanism

Reduction mechanism

Planetary double reduction

Maximum drawbar pull

173Kn

The travel speed

3.5/6.1km/h

Service brake

Hydraulic lock type

Parking brake

Hydraulic disc brake

Hydraulic system

Type

Negative flow control +Total cumulative horse power control +variable horsepower control

Hydraulic pump

Type

Double-piston variable stroke pump +gear pump

Use

Working equipment, traveling mechanism, swing mechanism

Maximum flow

2×198L/Min

Hydraulic motor

Type

Piston motor

Use

Traveling mechanism, swing mechanism

Relief valve setting

Implement circuit

37.4Mpa(310kg/cm²)

Traveling circuit

27.4 Mpa (310kg/cm²)

Swing circuit

25.5Mpa(260kg/cm²)

Hydraulic cylinder

Numbers of cylinder-bores*stroke

Arm force

47 KN

Bucket force

68 KN

Swing system

Driven by

Hydraulic motor

Swing reduction

Planetary and bevel gear reduction

Swing lock

Hydraulic disc brake

Swing speed

10.4r/min

Swing circle lubrication

Periodical grease-bathed

Traveling device

Shoe width

800mm

Track frame

Reinforced X-frame

Seal of track

Dust proof sealed track

Tension-buffer mechanism

Hydraulic tension and spring buffer

Working range

Standard bucket capacity(SAE)

0.53 m³

Max. digging radius(mm)

15330

Max. digging depth(mm)

11356

Max. digging height(mm)

13462

Max. dumping height(mm)

11171

Min. swing radius(mm)

4664

Overall weight

Overall weight

23600

Overall dimension

Overall length(mm)

12362

Overall width(mm)

3190

Overall height(mm)

3000
