Home > Products > Earth Working Machinery > 877lll Wheel loader

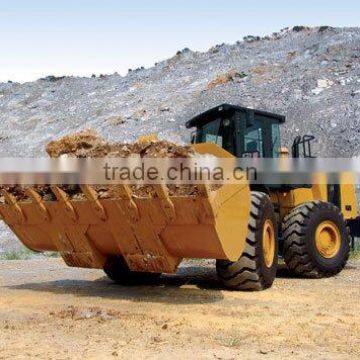

877lll Wheel loader
- 50 Set / Sets per Month
- SHANGHAI
- T/T
You May Like
Product Details
| Condition | New | Brand Name | LIUGONG | |
| Model Number | 877lll | Place of Origin | Guangxi, China | |
| Type | Front Loader | Moving Type | Wheel Loader | |
| Rated Load | 7000kg |
Product Description
Specifications
ets EPA Tier 3 ,Bucket capacity 4.0m3 Rated Load 7000kgRated Power 216kw Operating Weight 26475kg
Productively
Semi automatic power shift gearbox and KD function for faster response time.
High drive speeds with 4 forward and 3 reverse gears.
Responsive and accurate hand control with a single joy stick with integrated KD function.
Double—brake pedals simplify simultaneous driving and mechanical operations.
Fast cycle times.
High torque reserve of electronic engine (30%a high power).
Reliability
Vehicle has a strong flexible frame that will withstand load and torsion stresses in all manner of operating conditions.
Key components from world class suppliers.
Warranty and service programs available.
Efficiency
Fuel efficient engine.
Torque converter is matched to the engine to ensure maximum power transfer.
Hydraulics employ a dual—pump system and converging and self-unloading function to reduce energy loss.
Air pre—cleaner filter system improves overall engine efficiency in dusty conditions and lengths service life of main air filter system.
| Meets EPA Tier 3 | |
| Bucket capacity | 4.0m3 |
| Rated Load | 7000kg |
| Rated Power | 216kw |
| Operating Weight | 26475kg |
Parameters for Entire Loader Bucket capacity 4.0m3 Rated Load 7000kg
Basic Data Reference Bucket 4.2m3 Operating Weight 26475kg Breakout Force 182kN Breakout Force 182kN Tipping Load (straight) 19640kg Tipping Load (Full turn 38°) 17152kg
Engine Rated Power 216kw Model Cummins QSM11-C290 Rated power 216kW@2100 rpm Rated power 290hp@2100 rpm Type 6-cylinder,4-cycle,turbocharged and water cooled,
Drivetrain Torque converter Single-turbo,three-element Transmission Fixed shaft power shift transmission
Axles Main Reducer Spiral bevel gear single-stage reduction Final Reducer Spur column reduction with planetary gears Differential Limited slip on front and rear axles Oscillation Angle ±12Deg.
Tires 26.5R25 -
Brake System Service Brake Full hydraulic wet-disce brake Parking Brake Auto and manual electronic controlled Emergengcy Brake: Using parking brake,the brake will automatically/manually apply.Equipped with low-pressure warning a
Steering system Type Articulated frame,full hydraulic power steering No of Steering Cylinders 2 Relief Pressure 19MPa Steering Angle 38Deg.
Hydraulic System Main pump Vane Pump Relief pressure 20.7Mpa Hydraulic Cycle time,Rated Load in Bucket(Second) -
Capacities Fuel Tank 425L Hydraulic Tank 250L Crankcase 38L Transmission 62L Differential & Final Drivers-front 45L Differential & final Drivers-rear 45L
Dimensions
