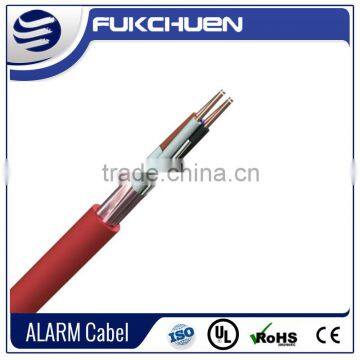

Security Fire Alarm Cables /Fire resistant security cable
- SHENZHEN
- T/T L/C D/P D/A Credit Card
You May Like
-
Made In China 4C*0.22mm2 CCA Copper Security Alarm Cable For Fire Alarm Cable System 4/6/10 Core Shielded FTP Alarm Cable
-
Made In China 4C*0.22mm2 CCA Copper Security 12core Alarm Cable For Fire Alarm Cable System 4/6/10 Core Shielded FTP Alarm Cable
-
fire alarm cable for security alarm system
-
6 core CU/CCA conductor multi core alarm cable fire red
-
alarm control cable
-
Fire alarm control cable fire warning signal cable 4cores 6cores 8cores 12core awm alarm cable,
Product Details
| Place of Origin | Guangdong, China | Brand Name | Fukchuen | |
| Model Number | alarm cable | Type | Bare | |
| Application | Underground | Conductor Material | Copper | |
| Conductor Type | Solid | Insulation Material | PE |
Product Description
Specifications
Security Fire Alarm Cables /Fire resistant security cable2014 Hotsale,Security Fire Shielded Alarm Cable,4core fire alarm cable
Specifications
ethernet cables
1.Factory price
2.Excellent transmit
3.T/T,L/C
4.UL/ROHS/CE
1) Conductor: CCA, TC, BC, Tinned CCA are available, 7*0.20mm or 7*0.24mm or 7*0.25mm or 24*0.20mm,
Cable core: From 2 core to 24 cores
Insulation: PVC
Rip cord: Yes
Shield or unshield
Shield have drain wire,
PVC insulation: PVC-flame proof or common PVC insulation
PVC jacket: PVC.
2)Application:
These cables are used for installation in signaling and alarm systemor security system.
Infra-red as well as micro wave or mixed technology systems to the switchboard.
3)Electrical Properties:
Nom. DC Resistance per Conductor@20
6.43Ohms/Kft. Nom.
CapacitanceBetween Conductors@1KHz
35pF/ft. Nom.
Operating Voltage: 300V/RMS max
Temperature Rating: -20oC to 60oC
4)Standard packing:
100m/rolll, 100m/box; 100m/plastic spool; 300m/wooden spool
Product Application
These cables are designed for installation signal alarm and alarm systems.They allow the connection of contacts,detectors and sensors, infr-red as well as microwave or mixed technology to the switch board.
Product Specification
Signal shield: Al/Polyester foil,coverage>100%
Double fully shield: Al/Polyester foil&tinned copper braid
Specification | Product Description |
2Cx22AWG | 2CX7/0.20mm OFC I.D:1.0mm PVC O.D:3.2mm PVC |
4Cx22AWG | 4CX7/0.20mm OFC I.D:1.0mm PVC O.D:3.8mm PVC |
6Cx22AWG | 6CX7/0.20mm OFC I.D:1.0mm PVC O.D:4.1mm PVC |
8Cx22AWG | 8CX7/0.20mm OFC I.D:1.0mm PVC O.D:4.5mm PVC |
10Cx22AWG | 10CX7/0.20mm OFC I.D:1.0mm PVC O.D:5.0mm PVC |
12Cx22AWG | 12CX7/0.20mm OFC I.D:1.0mm PVC O.D:5.5mm PVC |
2Cx22AWG | 2CX7/0.20mm OFC I.D:1.0mm PVC + AL O.D:3.2mm PVC |
4Cx22AWG | 4CX7/0.20mm OFC I.D:1.0mm PVC + AL O.D:3.8mm PVC |
6Cx22AWG | 6CX7/0.20mm OFC I.D:1.0mm PVC + AL O.D:4.1mm PVC |
8Cx22AWG | 8CX7/0.20mm OFC I.D:1.0mm PVC + AL O.D:4.5mm PVC |
10Cx22AWG | 10CX7/0.20mm OFC I.D:1.0mm PVC + AL O.D:5.0mm PVC |
12Cx22AWG | 12CX7/0.20mm OFC I.D:1.0mm PVC + AL O.D:5.5mm PVC |
2Cx22AWG | 2CX7/0.20mm OFC I.D:1.0mm PVC+AL+7/0.20mm OFC GroundO.D:3.2mm PVC |
4Cx22AWG | 4CX7/0.20mmOFC I.D:1.0mm PVC+AL+7/0.20mm OFC Ground O.D:3.8mm PVC |
6Cx22AWG | 6CX7/0.20mmOFC I.D:1.0mm PVC+AL+7/0.20mm OFC GroundO.D:4.1mm PVC |
8Cx22AWG | 8CX7/0.20mmOFC I.D:1.0mm PVC+AL+7/0.20mm OFC GroundO.D:4.5mm PVC |
10Cx22AWG | 10CX7/0.20mmOFC I.D:1.0mm PVC+AL+7/0.20mm OFC GroundO.D:5.0mm PVC |
12Cx22AWG | 12CX7/0.20mmOFC I.D:1.0mm PVC+AL+7/0.20mm OFC GroundO.D:5.5mm PVC |
