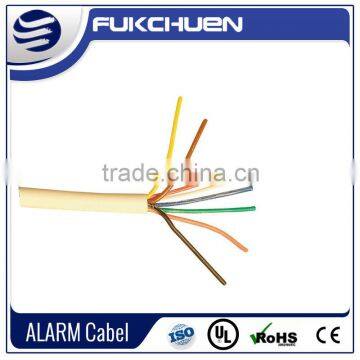

Alarm control Cable 8 Core Unshield security cable

FOB Price

Negotiable / Box

100 Boxes(Min. Order)

Port SHENZHEN
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	Fukchuen
Model Number	alarm cable	Type	Bare
Application	Underground	Conductor Material	Copper
Conductor Type	Solid	Insulation Material	PE

Product Description

Specifications

Alarm control Cable 8 Core Unshield security cable

Specifications

ethernet cables
1.Factory price
2.Excellent transmit
3.T/T,L/C
4.UL/ROHS/CE

1) Conductor: CCA, TC, BC, Tinned CCA are available, 7*0.20mm or 7*0.24mm or 7*0.25mm or 24*0.20mm,
Cable core: From 2 core to 24 cores
Insulation: PVC
Rip cord: Yes
Shield or unshield
Shield have drain wire,
PVC insulation: PVC-flame proof or common PVC insulation
PVC jacket: PVC.

2)Application:
These cables are used for installation in signaling and alarm systemor security system.
Infra-red as well as micro wave or mixed technology systems to the switchboard.

3)Electrical Properties:
Nom. DC Resistance per Conductor@20
6.43Ohms/Kft. Nom.

CapacitanceBetween Conductors@1KHz
35pF/ft. Nom.

Operating Voltage: 300V/RMS max
Temperature Rating: -20oC to 60oC

4)Standard packing:
100m/rolll, 100m/box; 100m/plastic spool; 300m/wooden spool

Product Application

These cables are designed for installation signal alarm and alarm systems.They allow the connection of contacts,detectors and sensors, infr-red as well as microwave or mixed technology to the switch board.

Product Specification

Signal shield: Al/Polyester foil,coverage>100%

Double fully shield: Al/Polyester foil&tinned copper braid

Specification	Product Description
2Cx22AWG	2CX7/0.20mm OFC I.D:1.0mm PVC O.D:3.2mm PVC
4Cx22AWG	4CX7/0.20mm OFC I.D:1.0mm PVC O.D:3.8mm PVC
6Cx22AWG	6CX7/0.20mm OFC I.D:1.0mm PVC O.D:4.1mm PVC
8Cx22AWG	8CX7/0.20mm OFC I.D:1.0mm PVC O.D:4.5mm PVC
10Cx22AWG	10CX7/0.20mm OFC I.D:1.0mm PVC O.D:5.0mm PVC
12Cx22AWG	12CX7/0.20mm OFC I.D:1.0mm PVC O.D:5.5mm PVC
2Cx22AWG	2CX7/0.20mm OFC I.D:1.0mm PVC + AL O.D:3.2mm PVC
4Cx22AWG	4CX7/0.20mm OFC I.D:1.0mm PVC + AL O.D:3.8mm PVC
6Cx22AWG	6CX7/0.20mm OFC I.D:1.0mm PVC + AL O.D:4.1mm PVC
8Cx22AWG	8CX7/0.20mm OFC I.D:1.0mm PVC + AL O.D:4.5mm PVC
10Cx22AWG	10CX7/0.20mm OFC I.D:1.0mm PVC + AL O.D:5.0mm PVC
12Cx22AWG	12CX7/0.20mm OFC I.D:1.0mm PVC + AL O.D:5.5mm PVC
2Cx22AWG	2CX7/0.20mm OFC I.D:1.0mm PVC+AL+7/0.20mm OFC GroundO.D:3.2mm PVC
4Cx22AWG	4CX7/0.20mmOFC I.D:1.0mm PVC+AL+7/0.20mm OFC Ground O.D:3.8mm PVC
6Cx22AWG	6CX7/0.20mmOFC I.D:1.0mm PVC+AL+7/0.20mm OFC GroundO.D:4.1mm PVC
8Cx22AWG	8CX7/0.20mmOFC I.D:1.0mm PVC+AL+7/0.20mm OFC GroundO.D:4.5mm PVC
10Cx22AWG	10CX7/0.20mmOFC I.D:1.0mm PVC+AL+7/0.20mm OFC GroundO.D:5.0mm PVC
12Cx22AWG	12CX7/0.20mmOFC I.D:1.0mm PVC+AL+7/0.20mm OFC GroundO.D:5.5mm PVC
