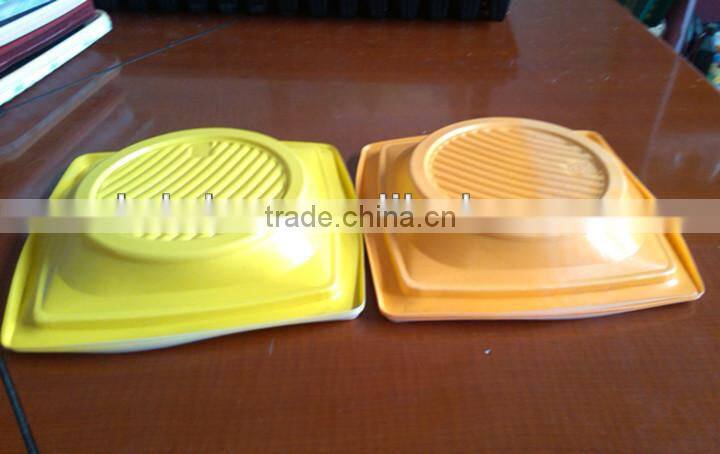

DAKE plastic thermoforming machine,plastic recycling machine
- shanghai
- T/T
You May Like
Product Details
| Condition | New | Product Type | Other, cup/fast food box/bottle/bowl | |
| Place of Origin | Shanghai, China | Brand Name | DAKE | |
| Model Number | DT66B | Voltage | 3-N AC380V±15V ,50Hz | |
| Power(W) | 83KW | Dimension(L*W*H) | 9.5m*1.5m*2.7m | |
| Weight | 5000kg | Certification | Other, ISO9001 | |
| Warranty | one year | After-sales Service Provided | Overseas service center available |
Product Description
Specifications
This BOPS Plastic Thermoforming Machine can form depth 120mm.It has high-transparence and good equipment component.DAKE plastic thermoforming machine,plastic recycling machine
PLASTIC THERMOFORMING MACHINE
High-transparence of parts
The Germany main cylinder for press ensure a reliable running
Forming depth of draw 100mm-120mm
Cut-in-place (trim in mould) and Perfect striping
Quick tool change ( auto baffle plate system)
Components from multi-national suppliers assures a reliability and worldwide
compatibility
Precise index accuracy utilizing Computerized AC servo drive system
Electric pre-heater and independently operated multi-zone plate-heating system
Perfect cut plate and Strong double toggle system under cut plate
Low air and energy
consumption and low Space floor requirements and minimum labor cost
Programmable PLC and touch screen control
Optional Smart Baffle System |
SMART BAFFLE allows changing air distribution across the cutting plate in minutes without remove the heat assembly plate. Easy and simple. It makes tool change very quick
Note: it is suitable for parts with rectangular or square shape and round shaped parts with diameter of more than 110mm .Parts with other shape should be approved by us .
Customer Benefits |
With our smart baffle system ,only minutes is required to change baffle plate, saving set up time
Cut-in-mould technology saves plastic material greatly and ensures a superior product quality
High quality of Components from multi-national suppliers assures a high reliability of machine
Low cost and high reliability is the most important benefits from our machine
Technical Parameter:
Forming Area | 510mm *570mm |
Depth of Draw | 125mm or 100mm |
Suitable material | BOPS PP PS PVC PET PVC |
Speed (Dry run) | 20-35cycles/min |
Material Thickness Range | 0.3mm - 1.5 mm |
Sheet Width | 600mm maximum |
Material Roll Diameter | 700mm (28") Max. |
Power Supply | 3-N AC380V±15V ,50Hz |
Power Consumption | 83kw |
Air Pressure | 0.7Mpa |
Air Consumption | 0.7Mpa*1.6m³/min(Approximate) |
Machine Dimensions | 9.5m*1.5m*2.7m |
Machine Weight | 5000kg |
Certificate | ISO9001 |
