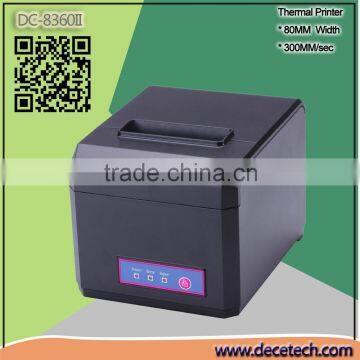

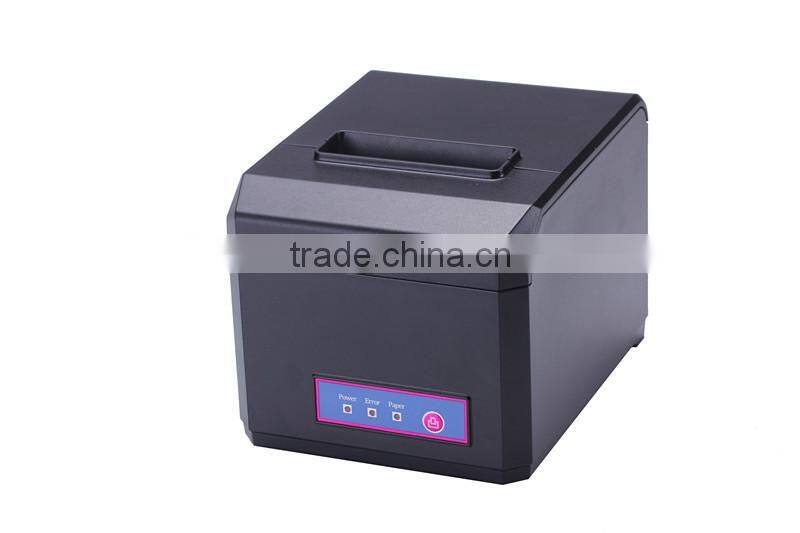

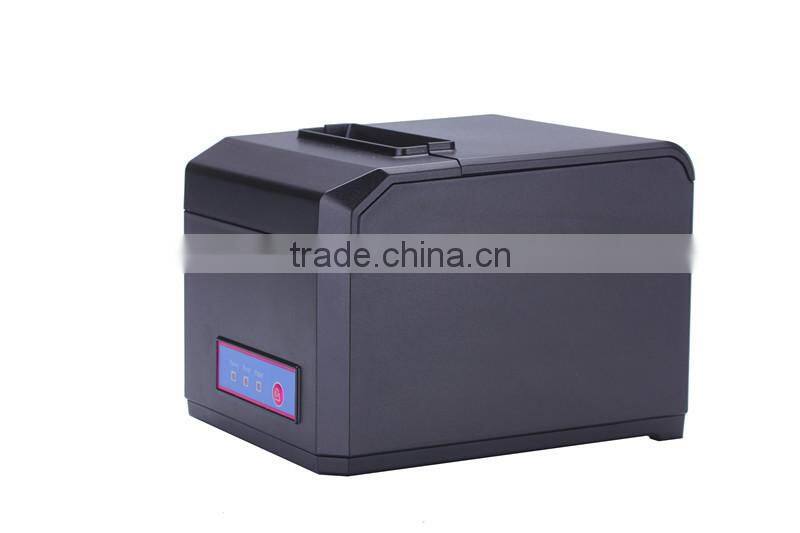

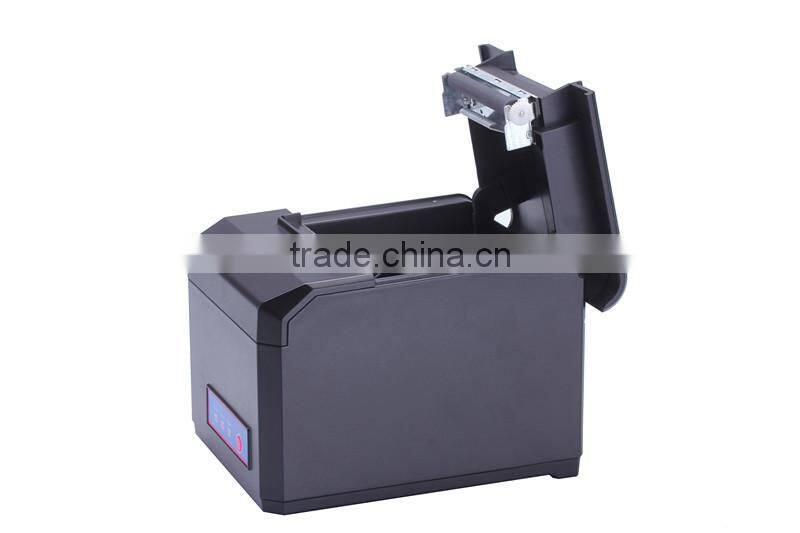

Pos Printer High Speed, Wide Format Barcode,Label, Receipt And Ticket Printer

Item

 Parameters

Print

parameters

Printing Method

Thermal Line

Printing width

72mm

Resolution

576 Dots/Line or 512 Dots/Line(8dots/mm 203dpi)

Print speed

300mm/Second

Interface

Ethernet+USB+COM/Ethernet+USB+WIFI/ USB+GPRS /USB+COM

/USB+Bluetooth

Line Spacing

3.75mm(Can adjust line spacing by command)

Line No

Font A-32 Lines/Font B-42 Lines/Simple traditional Chinese-16 Lines

Character

 standard GB18030 simplified / traditional Chinese Fonts

Character Size

ANK character Font A:1.5×3.0mm(12×24 dots)

Font B:1.1×2.1mm(9×17 dots)

Simplified/Traditional Chinese:3.0×3.0mm(24×24 dots)

Bar code

Character

Extended

character

PC437/Katakana/PC850/PC860/PC863/PC865/West Europe/Greek

/Hebrew/East Europe/Iran/WPC1252/PC866/PC852/PC858/IranII/

Latvian/Arabic/PT151,1251/PC737/WPC/1257/Thai Vietnam/

PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/(WPC1257)/

(PC864)/(Vietnam)/(Thai)

Bar code

1D bar code:UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/
CODABAR/CODE93/CODE128

2D bar code:QRCODE

Graphics printing

Supports bitmap download and print ( each bitmap size Max.20K)

Cutter

Cutter Function

 Full cut/Half cut

Paper

Type

Thermal

Width

79.5±0.5mm

Diameter

≤80mm

Feed method

Easy feed

Print commands

Commands

ESC/POS

Power

Power Adapter

Input:AC 110V/220V 50~60Hz

Output:DC 24V/2.5A

Cash Drawer

output

DC 24V/1A

Buffer

Input Buffer

2048K bytes

NV Flash

256K bytes

physical

characteristics

Weight

Dimension

Environment

Working

Temp:5 ~ 45℃, Humidity:10 ~ 80%

Storage

Temp:-10 ~ 50℃ ,Humidity:10 ~ 90%(No dew)

Reliability

parameter

Print Head Life

100KM(print density≤12.5

Cutter Life

1000,000times

Software

Driver

Android,IOS,Linux,Win2000,Win2003,WinXP,Win7,Win8,Win8.1
