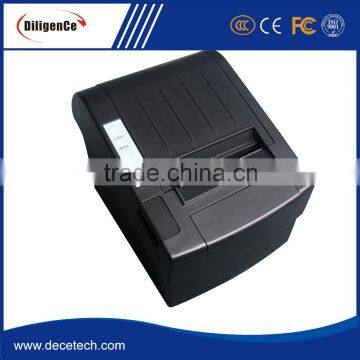

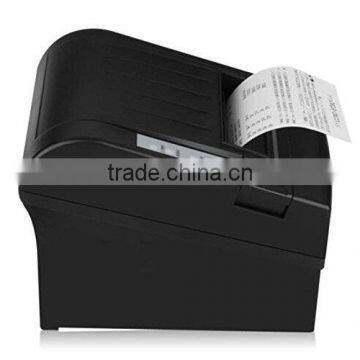

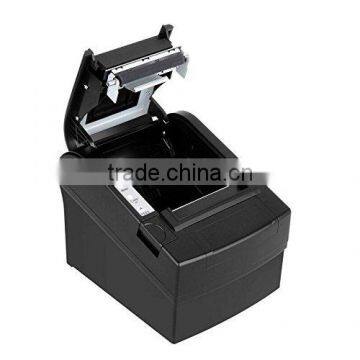

High Quality 80mm Auto Cutter Thermal POS Receipt Printer With WIFI Function

Item

Parameters

Print

parameters

Printing Method

Thermal Line

Effective Printing width

72mm

Resolution

576 Dots/Line or 512 Dots/Line(8dots/m,203dpi)

Print speed

300mm/Second

Interface

Internet(100M)+USB+CO; Internet(100M)+USB+WIFI

USB+COM

Line Spacing

3.75mm(Can adjust line spacing by command)

Line No

FontA-48Lines/FontB-64Lines/Simple,traditional Chinese-24 lines

Character

Standard GB18030 simplified / Traditional Chinese Fonts

Character Size

ANK character

Font:1.5×3.0mm(12×24 dots)
Font B:1.1×2.1mm(9×17 dots)

Simplified/Traditional Chinese:3.0×3.0mm(24×24 dots)

Bar code

Character

Extended

character set

PC437/Katakana/PC850/PC860/PC863/PC865/WestEurope/

Greek/Hebrew/EastEurope/Iran/WPC1252/PC866/PC852/

PC858/IranII/Latvian/Arabic/PT151,1251/PC737/WPC/1257/

ThaiVietnam/PC864/PC1001/(Latvian)/(PC1001)/(PT151,1251)/

(WPC1257)/(PC864)/(Vietnam)/(Thai)

Bar code

1D bar code:UPC-A/UPC

E/JAN13(EAN13)/JAN8(EAN8)CODE39/ITF/CODABAR/

CODE93/CODE128

2D barcode:QRCODE

Graphics

printing

Graphics printing

Supports bitmap download and print

Cutter

Cutter Function

Full cut/Partial cut

Paper

Type

Thermal

Width

79.5

Diameter

80mm

Feed method

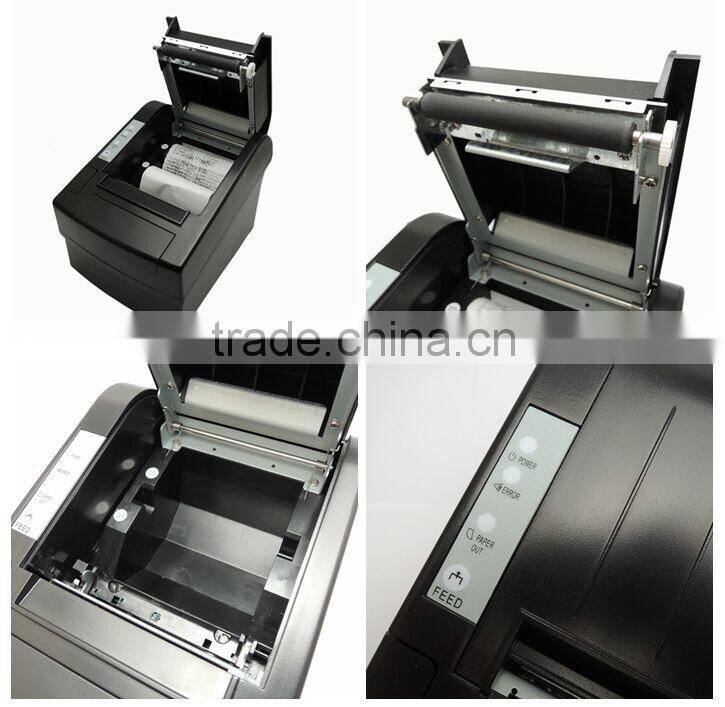

Easy feed(Clameshell feed)

Print command

Command

ESC/POS

Power

Power Adaptor

Input:AC 100V-220V,50-60Hz

Output:DC 24V/2.5A

Cash Drawer

output

DC 24V/1A

Buffer

Input Buffer

2048K bytes

NV Flash

256K bytes

physical

characteristics

Weight

1.5KG

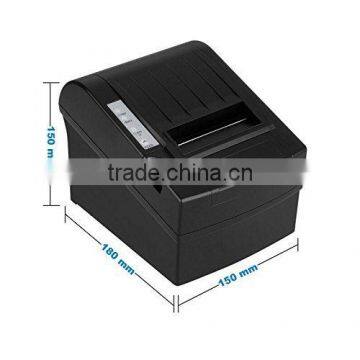

Dimension

180*150*150(MM)

environment

Working

Temp:5 -45degree, Humidity:10 ~ 80

Storage

Temp:-10 -50degree,Humidity:10 ~ 90(No Con)

Reliability

Parameter

Print Head Life

150KM

Cutter Life

1500,000times

Software

Driver

Android,IOS,Linux,,WinXP,Win7,Win8,Win8.1,Win10
