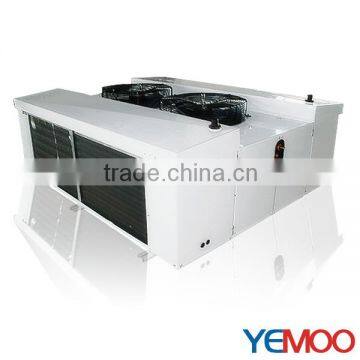

YEMOO Air Cooler dj Series Two Side Blow Type Evaporator With Low Price
- Shanghai / Ningbo
- T/T Credit Card
You May Like
-
Industrial Air Cooler for Cold Room Types of Evaporators
-
Cold Room Plate Solar Powered Evaporator Price
-
Cold Room Air Cooler Plate Heat Exchanger Price
-
Refrigeration Evaporator Unit Fan Motor for Cold Room for Cold Storage
-
Plate Type Industrial Solar Water Evaporator for Deep-freezing Room Storage
-
On-board Type Unit Cooler Refrigeration Evaporator Price Air Cooler for Cold Storage
Product Details
| Place of Origin | Zhejiang, China | Brand Name | YEMOO | |
| Model Number | DL-016B two side blow type evaporator | Type | Evaporator | |
| Application | Refrigeration Parts | Certification | CE |
Product Description
Evaporator for cold storage /Air cooled Evaporator For Cold Room
DL DD DJ series for your choice
DL : High temperature
DD : Medium temperature
DJ : Low temperature
Characteristics
1.Scientific structure, high efficient, frost steadily, save power and low running cost;
2. Equip with axial fan quiet models that offer strong air flow in long shot rang; save power, long service life;
3. Copper pipe thickness can reach to 0.6mm, which lead to perfect tightness between pipe and fin after expansion processing;
4. Equip with stainless electric heater in high insulating property, defrost efficiently in shot time;
5.The heat exchanging coil was did gas tightness test under 2.6MPa air pressure, to guarantee quality.
6.Aluminum and painted stain board, to meet your different needs.
Sphere of application
High temperature type: (cold room temperature 12~-2oC)fin space:4.5mm;
Medium temperature type: (cold room temperature-2~-10 oC) fin space:6.0mm;
Low temperature type: (cold room temperature-10~-31 oC)fin space:9.0mm;
Attention of model selection
When the cold-room temperature is aroud 0 oC, select 8 oC to be the difference between compressor evaporating temperature and cold-room temperature.
when the cold-room temperature is aroud -18 oC select 7 oC to be the difference between compressor evaporating temperature and cold-room temperature.
when the cold-room temperature is aroud -25 oC, select 6 oC to be the difference between compressor evaporating temperature and cold-room temperature.
According to selected evaporating temperature, compressor’s capacity = the cold-room loading × 1.15.
| Model | Ref. capacity(KW) | Cooling surface (m2) | Fan | Defrost heater | Remark | |||||||
| Qty | Diameter Φ(mm) | Air flow (m2/h) | Air pressure (pa) | Shot range (m) | Power (W) | Coil (kW/PC) | Drip pan (kW) | Voltage (V) | ||||
| DL-016B | 3.2 | 16 | 2 | 300 | 2×2118 | 90 | 10 | 2×145 | 0.36x2 | 0.36x2 | 380 | Water-defrosting type and customized are optional |
| DL-020B | 4.1 | 20 | 2 | 300 | 2×2118 | 90 | 10 | 2×145 | 0.41x2 | 0.41x2 | 380 | |
| DL-030B | 6.1 | 30 | 2 | 350 | 2×2290 | 90 | 10 | 2×140 | 0.58x2 | 0.58x2 | 380 | |
| DL-040B | 8 | 40 | 2 | 350 | 2×2290 | 90 | 10 | 2×140 | 0.49x6 | 0.49x2 | 380 | |
| DL-055B | 11.2 | 55 | 2 | 400 | 2×3400 | 90 | 13 | 2×180 | 0.51x6 | 0.51x2 | 380 | |
| DL-080B | 16.2 | 80 | 2 | 500 | 2×6570 | 90 | 15 | 2×450 | 0.61x6 | 0.61x2 | 380 | |
| DL-105B | 21.5 | 105 | 2 | 500 | 2×6570 | 90 | 15 | 2×450 | 0.81x6 | 0.81x2 | 380 | |
| DL-135B | 27.6 | 135 | 3 | 500 | 3×6570 | 90 | 15 | 3×450 | 0.83x8 | 0.83x2 | 380 | |
| DL-160B | 32.8 | 160 | 3 | 500 | 3×6570 | 90 | 15 | 3×450 | 1.0x8 | 1.0x2 | 380 | |
| DL-185B | 37.6 | 185 | 4 | 500 | 4×6570 | 90 | 15 | 4×450 | 1.1x8 | 1.1x2 | 380 | |
| DL-210B | 42.7 | 210 | 4 | 500 | 4×6570 | 90 | 15 | 4×450 | 1.1x10 | 1.1x2 | 380 | |
| DL-260B | 52.9 | 260 | 3 | 550 | 3×8720 | 90 | 15 | 3×600 | 1.2x14 | 1.2x2 | 380 | Axial fan |
| DL-330B | 67.6 | 330 | 4 | 550 | 4×8720 | 90 | 15 | 4×600 | 1.1x16 | 1.1x2 | 380 | |
| DL-400B | 82 | 400 | 4 | 600 | 4×10820 | 120 | 15 | 4×780 | 1.3x16 | 1.3x2 | 380 | |
| Remark | Cold room temp. 0oC ; t=8oC | |||||||||||
| Model | L | W | H | Installation size | Water tube (inch) | Connecting tube Φ(mm) | Weight (kg) | ||||||
| B | T | H | L | E1 | E2 | E3 | E4 | F | Inlet | Outlet | |||
| DL-016 | 830 | 480 | 570 | 420 | 510 | / | / | / | 135 | 3/4 | 12 | 22 | 35 |
| DD-012 | 34 | ||||||||||||
| DJ-008 | 49 | ||||||||||||

1.We are Professional factory to make semi-hermetic compressor and condensing unit more than 10 years.
2.We insist on innovation,purchasing the international quality materials,strong technique support,strictly control the production.
3.We firmly believe quality first,perfect production responsibility system.
4.We promise all Yemoo brand products,we supply 3 months new products guarantee replacement,12 months quality guarantee service.
So,what Yemoo can support you ? It's best price ratio products,perfect after-sales service guarantee.
Yemoo's value is what we supply you is not only products,but also creating you most value.
