Product Details
| Place of Origin | Zhejiang, China | Brand Name | DIBSYS | |
| Model Number | EMH6300 |
Product Description

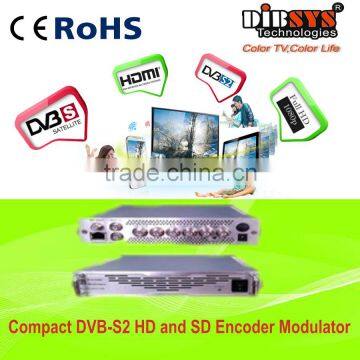

Compact DVB-S2 HD and SD Encoder & Modulator
EMH6300 DVB-S2 HD and SD Encoder & Modulator is an integrated device with multi-interface inputs.
As like HD-SDI/CVBS,or HDMI,SDI It also equipped with 1 channel ASI input.
It outputs ASI and DVB-S/S2 RF in the same time. Moreover, this device is based on slot design and the
input card can be switched as customer’s requirement.
The EMH6300 Compact DSNG Encoder is a fully integrated MPEG-2 and
MPEG-4 AVC High Definition and Standard Definition 4:2:0 encoder/modulator in a 1-RU unit.
Designed for digital satellite contribution applications, It features a professional broadcast
quality encoder and a built-in DVB-S, DVB-S2 and DVB-DSNG modulator with L-Band outputs.
The DVB-S2 Encoder is a perfect fit for teleports, satellite newsgathering vehicles and flyaway packages
operating on either the C, Ku, or Ka-bands.
HDMI input | Number of Channels: 1 |
Video Compression: mpeg4 avc/h264 | |
Resolution: 1920*1080P/1920*1080i,1280*720p | |
Audio Formats: MPEG1 Layer II | |
Audio Bitrate: 64kbps, 96kbps,128kbps,192kbps 256kbps, 320kbps | |
Audio Sample: 48KHz | |
Output Interface
| DVB-S/S2 RF output; (IF output optional)
|
ASI output
| |
DVB-S/S2 Modulation Section
| DVB-S QPSK: FEC 1/2,2/3,3/4,5/6,7/8
|
DVB-S2 QPSK:FEC 1/2,3/5,2/3,3/4,4/5,5/6,8/9,9/10 | |
DVB-S2 8PSK FEC 3/5,2/3,3/4,5/6,8/9,9/10
| |
RF output : 950.00-2150.00 MHz, 10Khz step;
| |
Symbol rate: 0.05-20.0Msps
| |
Roll Off: 0.35, 0.25, 0.2
| |
Output level: -8dBm(-16db~0db step)
| |
System
| Remote Control:Web
|
Environment
| Demission: 230×180×44mm (W*L*H)
|
Temperature: 0~45°C(operation), -20~80°C(storage)
| |
Weight: 2.5kgs
| |
Power Supply: AC 100-240V 50/60Hz 2A
|
1) High quality and low price
2) 5-year warranty
3) Perfect after-sale service and technical support
