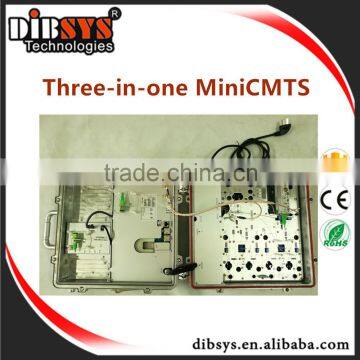

Three-in-one chassis CMTS

Overview

This is a three-in-one chassis CMTS products containing optical receiver module,ONU module and

the CDOCSIS module. It is deployed at the optical nodes for the integrated solutions. The CDOCSIS

module is strictly according to its standard. With a high degree of standardization, it effectively fulfills

the requirements of the existingand future CDOCSIS technical standards . The optical receiver module

and the ONU module adopt matured ones and go for commercial use stably and reliably over five years.

The three-in-one modules are mutually independent and field replaceable . And the maintenance
is also very convenient.

The product provides 16 downstream channels, bandwidth to 800Mbps; 4 upstream channels ,

bandwidth to 160Mbps,fulfilling the broadband accessing of 960Mbps. It can support 511 Cable Modems

online simultaneously, fully compatible with the DOCSIS2.0,3.0 Cable Modem.

Key Features

C-DOCSIS module, optical receiver module and ONU module three-in-one product, intergrated solution deployed in optical node.
Optical receiver adopt liner design, easy to do on-site replacement
Modules’ organic intergration,reduce the overall power
Outdoor IPV6 waterproof type design, work Temperature at -25℃~75℃
1 SFP interface or 1 1000M LAN business port
Support IPQAM module
4 channels output, maximum out level is 110dbuv
4 channels upstream,16 channels downstream.
Upsream frequency range:5-65Mhz, down stream frequency range:87~1000Mhz(Biggest difference of the 16 frequency points is less than192 Mh).

Technical specifications

	Item	parameter
MiniCMTS	DS	QAM standard	Annex A,B, C
		QAM modulation	64QAM,256QAM
		DS channels	16
		DS maxi speed	800Mbps
		Work frequency	87Mhz~ 1000Mhz
		Channel bandwidth	6~8Mhz
	US	QAM standard	Annex A,B, C
		QAM modulation	QPSK 16QAM,64QAM
		US channels	4
		US maxi speed	160Mbps
		Work frequency	5Mhz ~ 65Mhz
		Out level range	-13~23dbmv
	Others	maximum CM	511
		Maximum CPE	2000
		Dynamic load balancing	support
		DHCP relay	support
		Qos	support
		management	Web,CLI,talnet,SSH, network
ONU	PON interface	1Gbps transmission rate with downlink and uplink symmetry
		Optical interface type	SC/PC
		Hi-sensible optical receiver	≥-26dBm
		Power	2~7dBm
		security	ONU authentication mechanism
	VLAN	Port based VLAN
		IEEE 802.1 Q VLAN
	Service quality	Back pressure stream control(Half duplex)
		IEEE 802.3X stream control (Full duplex)
RF out		Out Impedance:	75
		Band rejection	>50db
		MER	>42db
		Maxi power	110dbuv
		channels	4
Environment		Power supply	220V/110V/60V
		Power	<50W
		Temperature	-30℃ - 70℃
		Humidity	10% - 90%
		Size(mm)	385x350x161

Optical receiver liner index

Optical parameter
Optical receiver power	+2~-9
Optical AGC range	+2~-8/-7/-6/-5(Adjustable)
Optical reflection loss	>45db
Optical Wave length	1100-1600nm
Optical receiver type	FC/APC,SC/APC(Or specified by user)
Optical type	Single mode
Link performance
C/N	≥51dB
C/CTB	≥ 65dB
C/CSO	≥ 60dB
-1dBm optical input,output level is 106dBμv
RF parameter
Frequency range	45/87~1003MHz
Band flatness	±0.75dB
Norminal output level	≥106dBμv(4 channels distribution out ), ≥ 110dBμv(2 channels independent out)
Maximum output level	≥ 112dBμv
Output reflection loss	(85~550MHz)≥16 / (550~1000) ≥ 14
Redundancy isolation	≥ 75
Output impedance	75Ω
Electronic control equilibrium range	0~15(steping)
Electronic control attenuation range	0~20(steping)
