Home > Products > Lan cable UTP cat5e > Outdoor UTP cat.5e

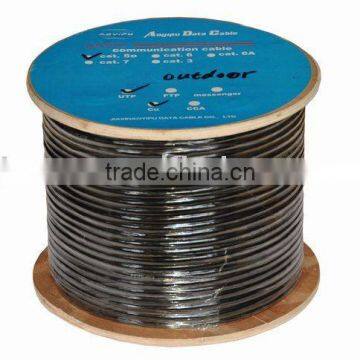

Outdoor UTP cat.5e
- Shanghai or Ningbo
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Aoyipu | |
| Model Number | AYP-C5E040402 | Type | Cat 5e | |
| Number of Conductors | 8 |
Product Description
Specifications
1, CCA conductor;2, HDPE insulated;
3, Double jacket;
4, CE, UL, RoHS certified;
5, OEM is acceptable;
Specification of Outdoor UTP cat5e
1) CONDUCTOR
* Raw material of the conductor: CCA
* Conductor Dia.: 0.50±0.003mm (23AWG)
2) INSULATION
* Raw material of the conductor: F-PE
* Quantity:4 twisted pairs
Blue/white-blue; Green/white-green;
Orange/white-green; Brown/white-brown;
* Insulation Dia. : 0.924±0.005mm
* Average thickness: 0.212 mm
* Minimum point thickness: 0.2095mm
3) Rip cord
4) Inner Sheath
* Sheath material: PVC
* Nominal Dia.: 4.8 ± 0.2mm
* Average thickness: 0.40mm
* Minimum point thickness: 0.30mm
5) Overall Sheath
* Sheath material: Black PE
* Nominal Dia.: 6.0 ± 0.2mm
* Average thickness: 0.60mm
* Minimum point thickness: 0.50mmContact Us
- Jiaxing Aoyipu Data Cable Co., Ltd.
- Contact nameJack Lu Chat Now
- Phone86-573-86672088
- AddressShiQuan Industry Park,TongYuan Town,HaiYan County, Jiaxing, Zhejiang
