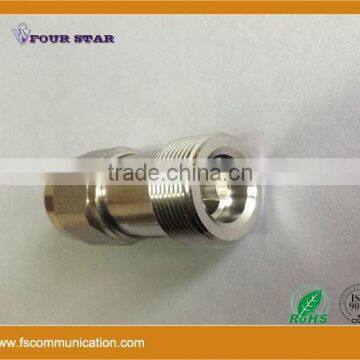

Mini DIN Female to N Male Connector Adaptor
USD $5.6 - $5.7
/ Piece
100 Pieces(Min.Order)
- 300000 Piece / Pieces per Month
- Shanghai
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Four Star | |
| Model Number | Mini DIN/N-KJ | Type | Other, Mini DIN | |
| Application | RF | Gender | Male |
Product Description
Product Description
Mini DIN Female to N Male Connector Adaptor
| Mini DIN Female to N Male Connector Adaptor | ||
| Model No. | Mini DIN/N-KJ | |
| Interface | Mini DIN;IEC 60169-16 | |
| Electrical | ||
| Characteristic Impedance | 50ohm | |
| Frequency Range | DC-10GHz | |
| VSWR | ≤1.250@DC-10GHz | |
| 3rd Order IM (PIM3) | ≤ -155dBc@2×20W | |
| Insertion Loss | ≤0.1dB | |
| Mechanical | ||
| Durability | Mating cycles ≥500 | |
| Material and Plating | ||
| Parts Name | Material | Plating |
| Body | Brass | Tri-metal |
| Insulator | PTFE | — |
| Inner Conductor | Phosphor Bronze | Ag |
| Coupling Nut | Brass | Tri-metal |
| Gasket | Silicone Rubber | — |
| Environmental | ||
| Operating Temperature | -45 ℃-85 ℃ | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
