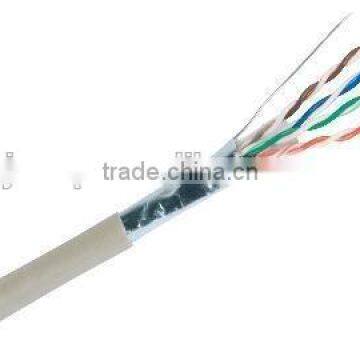

PVC cable cat5e ftp cable
- SHANGHAI
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | AOYIPU | |
| Model Number | AYP-C5E0220403 | Type | Cat 5e | |
| Number of Conductors | 8 |
Product Description
Specifications
1, Solid BC conductor;2, PE insulated & AL foil shielded;
3, PVC jacket;
4, CE, UL, RoHS certified;
5, OEM is acceptable;
Sepecification of FTP cat5e
CONDUCTOR | Stranded bare copper |
Conductor Dia.: 7/0.18±0.003mm | |
INSULATION | Raw material of the conductor: PE |
Quantity:4 twisted pairs : Blue/white-blue; Green/white-green; Orange/white-orange; Brown/white-brown | |
Insulation Dia. : 1.0±0.005mm | |
Average thickness: 0.212mm | |
Minimum point thickness: 0.2075mm | |
SEPARATOR | PET |
DRAIN WIRE | 7/0.18mm BC wire |
OVERALL SCREEN | AL foil |
RIP CORD | Nylon thread |
JACKET | Jacket material: PVC(UL CMX) Availabled in FR-PVC, (UL) CMX, CM grade PVC, LSZH and PE |
Color: As per customers request | |
Nominal Dia.: 5.8±0.2mm | |
Average thickness: 0.50mm | |
Minimum point thickness: 0.40mm | |
CABLE MARKING | As per customers request (OEM) |
Specifications
FTP structured cable products lan cable Cat5e
1.CU/CCA available
2.UL,CE,RoHs,ISO9001,SGS pass
3.Advanced Technolgy
FTP structured cable products lan cable Cat5e
Application
1.Computer Natwork Cabling project.
2.Broadeband Network Communication.
3.Digital ISDN Network and ATM 155Mbps Netwoprk.
4.Ethernet Network.
5,Audio and Data Transmission
Cable Specifications
| Mode | cat5e ftp cable |
| Conductor Size | 28AWG.26AWG.24AWG.23AWG.22AWG. |
| Conductor Material | CU/CCA/CCS |
| No.of Conductor | 4P |
| Insulation Material | PE.HDPE |
| jacket | PVC.ROHS.LSZH PVC |
| shield | UTP/FTP/STP/SFTP |
| filler | PE cross |
| indoor/outdoor | Single Jacket |
| insulation thickness | 0.2mm |
| unrip rope | optional |
| jacket thickness | 0.92-0.95mm |
| stretching resistance | (max)400N |
| Transimission velocity | 66% |
| Reference standard | YD/T1090-2001.ANSI/TIA/EIA-568B.ISO/IEC11801 |
| PVC jacket color | optional |
| print words on cable | As Clients' request |
Cable OEM Service
Service 1 | Cable Color | Gray;White;Black;Blue and other color available |
| Service 2 | Cable Words | Your brand on cable available |
| Service 3 | Label | Label with your logo |
| Service 4 | Pull Box | Your brand ( company name and logo...) |
| Service 5 | Carton Box | Your brand ( company name and logo...) |
| Service 6 | Cable Specs | Made according to your specs. |
Packaging specification
| ftp cat5e cable 305m per roll in a pull box,2 boxes in a carton | ||||
| Size | container packaging qty | |||
| inner box | outer box | 20ft(26-28CBM) | 40ft(50-58CBM) | 40hq(66-68CBM) |
| 24/40/40cm | 51/43/43cm | 594boxes | 1230boxes | 1442boxes |
