Home > Products > RF connector adaptors > N Plug to SMA Jack Connector Converter

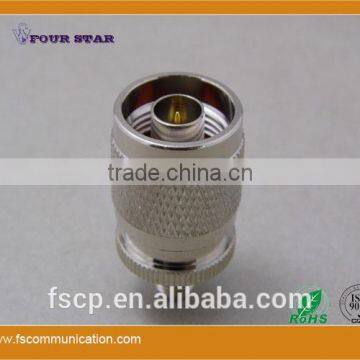

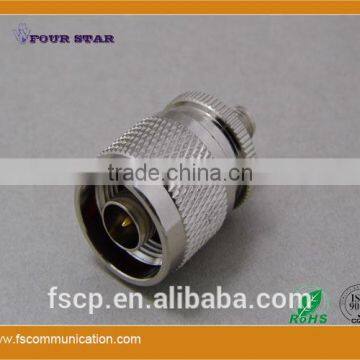

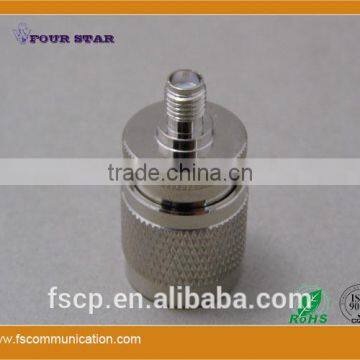

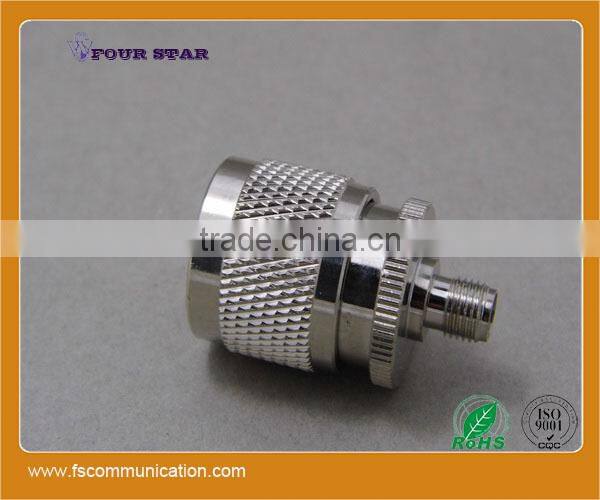

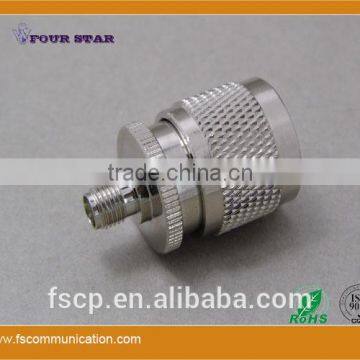

N Plug to SMA Jack Connector Converter
US$ 0.85 - 1.63
/ Piece
100 Pieces(Min. Order)
- Shanghai
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Four Star | |
| Model Number | N/SMA-JK-C | Type | Adapter | |
| Application | RF | Gender | Other, male to female |
Product Description
Product Description
| N Male to SMA Female Connector Adaptor C | ||
| Description | N Male to SMA Female Connector Adaptor C | |
| Model No. | N/SMA-JK-C | |
| Connector Type | Connector A: N Male Connector | |
| Connector B: SMA Female Connector | ||
| Connector Interface | IEC 60169-16; IEC 60169-15 | |
| Characteristic Impedance | 50ohm | |
| Insertion Loss | ≤0.1dB | |
| Typical Frequency Range | DC-6GHz | |
| VSWR | ≤1.10@DC-6GHz | |
| Intermodulation 3rd (PIM3) | — | |
| Durability | ≥500 cycles | |
| Parts Name | Material | Plating |
| Body | Brass | Ni |
| Insulator | PTFE | — |
| Inner Conductor | Phosphor Bronze | Au |
| Coupling Nut | Brass | Ni |
| Fastening Nut | — | — |
| Gasket | Silicone Rubber | — |
| Wash | — | — |
| Operating Temperature | _45 ℃-85 ℃ | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
