Home > Products > 2 pairs telephone cable > 2 PIARS TELEPHONE CABLE CMX rate
2 PIARS TELEPHONE CABLE CMX rate
Negotiable
/ Kilometer
50 Kilometers(Min. Order)
- Shanghai or Ningbo
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | AOYIPU | |
| Model Number | CAT3 | |||
| Number of Conductors | 4 |
Product Description
Specifications

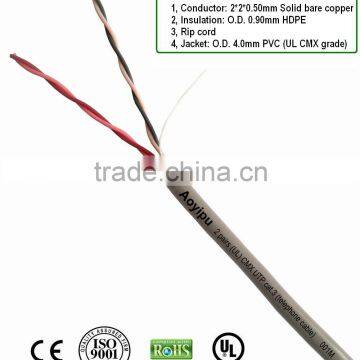

1.2 PAIRS TELEPHONE CABLE with different conductors(Copper/CCA) 2.All cable are pass the UL/CE authenticate2 PAIRS TELEPHONE CABLE
SPECIFICATION:
- Conductor:
- Material: solid bare copper
- Number of pairs: 2 pairs
- AWG: 24awg
- Diameter: 0.50±0.003mm
- Insulation:
- Material: HDPE
- Diameter: 0.924±0.005mm
- Average thickness: 0.212mm
- Minimum point thickness: 0.2095mm
- Jacket rip cord: optional
- Sheath:
- Material: PVC or LSOH
- Nominal diameter: 4±0.2mm
- Average thickness: 0.5mm
- Minimum point thickness: 0.4mm
- Operating temperature: -20 to 75°C
- Minimum bend radius (install): (OD) 8mm
- Flame test: CMX, CM and IEC60332-1
- Reference standard: TIA/EIA568B and IEC/ISO11801
