NEMA17 Stepper Motor 40mm Length Lead 1.2A with 4P 1M Long Cables use for 3D or CNC
- Shanghai
- Credit Card
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | JUGETEK | |
| Model Number | 17HS3001-20B | Phase | 2 | |
| Type | Hybrid | Certification | CCC, CE, ISO | |
| Step Angle(degrees) | 1.8 deg/step | Holding Torque | 0.4 N.m Min | |
| Current / Phase | 1.2A |
Product Description

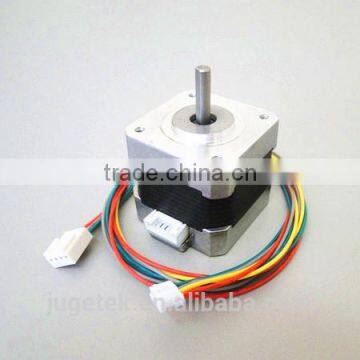

NEMA17 40mm long Reprap Stepper Motor
Cable with connectors are included in the price. To all of RobotDigg stepper motors. The connector end to the stepper driver can directly plug to A4988 or A4983.
Flat Shaft or D Cut Shaft
Monthly production 1,000-2,000pcs for Reprap Projects.
This Nema17 Stepper is what you need for your Reprap, Makerbot and other 3D Printers or CNC or Laser or Plasma cutter kits.
200 steps per revolution (1.8 deg/step)
2 Phase bipolar 4 wires
Rated Voltage 2V DC (It's not working voltage of this stepper. There is No problem to use 12V, 24V or even higher to 36V to drive this motor.)
Rated Current 1.2A
Phase Resistance: 1.7 Ohm ± 10% (20º C)
Phase inductance: 4.5 mH ± 20% (1kHz 1 V rms)
Holding torque: 0.4 N.m Min.
Shaft diameter: 5mm / 0.188" (3/16")
Shaft length: 22mm
Motor depth: 40mm
